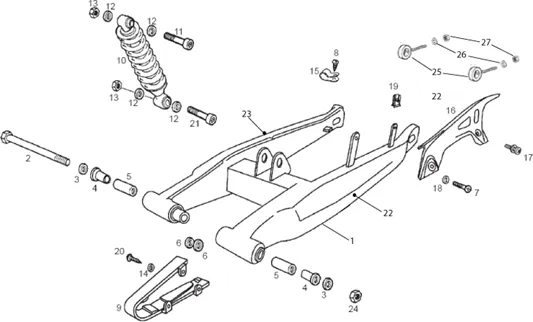

Vehicle Exploded View - GILERA SMT 50 2011-2012 (EMEA)

	P2R reference	72851
	Maker reference	2B004345600WGB

ARM DE SUSPENSION OEM DERBI 50 SENDA 2010 >/GILERA 50 SMT, RCR 2011 >-2B004345600XHE

	P2R reference	64484
	Maker reference	00H013042025

WHEEL SPINDLE OU OEM MOPED SWINGARM (12X240) OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 > REAR-00H013042025

	P2R reference	68489
	Maker reference	709037

WASHER PLATE (12. 5X20X2) OEM PIAGGIO COMMON A LA RANGE-709037

	P2R reference	68489
	Maker reference	000031123225

WASHER PLATE (12. 5X20X2) OEM PIAGGIO COMMON A LA RANGE-709037

	P2R reference	63630
	Maker reference	000025032305

SPACER SPINDLE OEM MOPED SWINGARM OEM PIAGGIO GILERA 50 SMT, RCR 2006 > 2017/DERBI SENDA 2000 > 2017APRILIA 50 SX, RX 2006 > 2017-00002503230

	P2R reference	64217
	Maker reference	00H00301401

SPACER SPINDLE OEM MOPED SWINGARM OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00H00301401

	P2R reference	63879
	Maker reference	00D01300192

WASHER PLATE D12 SPINDLE ENGINE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA/APRILIA 50 SX, RX-00D01300192

	P2R reference	63696
	Maker reference	000120612005

SCREW CRUCIFORME (6X12) OEM PIAGGIO COMMON A LA RANGE-00012061200

	P2R reference	64620
	Maker reference	00H01803331

PATIN DE CHAIN 50 A BOX OEM PIAGGIO GILERA SMT 2006 >, RCR 2006 >/DERBI SENDA 2000 >/APRILIA 50 SX-RX 2006 >-00H01803331

	P2R reference	70281
	Maker reference	8670020001

REAR SHOCK ABSORBER OEM DERBI 50 SENDA 2010 >/GILERA 50 SMT 2011 >/APRILIA 50 RX/SX 2011 >-8670020001

	P2R reference	64230
	Maker reference	00H00303892

SCREW TH (12X58) MOUNTING SHOCK ABSORBER OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT 2006 >-00H00303892

	P2R reference	63633
	Maker reference	000031154225

WASHER PLATE (12X21X1) OEM PIAGGIO COMMON A LA RANGE-00003115422

	P2R reference	63716
	Maker reference	000231120005

NUT AUTOBLOQUANT/NYLSTOP (M12) OEM PIAGGIO COMMON A LA RANGE-00023112000

	P2R reference	69496
	Maker reference	847226

WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226

	P2R reference	70044
	Maker reference	864114

864114-BRIDA FIJ. CABLE D12. 70 NEGRA

	P2R reference	64557
	Maker reference	00H01508181

COVER CHAIN OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX 2006-00H01508181

	P2R reference	65008
	Maker reference	00H05900021

SCREW CRUCIFORME (6X16) BOCAL COOLING OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2005 > 2015/APRILIA SX, RX-00H05900021

	P2R reference	63876
	Maker reference	00D01200171

WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	63687
	Maker reference	000111413005

SCREW PARKER (4, 8X13) CRUCIFORME OEM COMMON A LA RANGE-00011141300

	P2R reference	64216
	Maker reference	00H00300912

SCREW TH (12X45) MOUNTING SHOCK ABSORBER OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT 2006 >-00H00300912

	P2R reference	70142
	Maker reference	8657130001

8657130001-CALCA BASCULANTE DLS IZ. 09

	P2R reference	70141
	Maker reference	8657120001

STICKER/STICKER/GRAPHIC " DLS " DE ARM DE SUSPENSION OEM PIAGGIO GILERA 50 SMT, RCR-8657120001

	P2R reference	63768
	Maker reference	002621200325

NUT AUTOBLOQUANT/NYLSTOP (M12X1. 50) OEM PIAGGIO COMMON A LA RANGE-00262120032

	P2R reference	64486
	Maker reference	00H01305171

TENDEUR DE CHAIN OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2000 > 2017/APRILIA SX, RX 2006 > 2017-00H01305171

	P2R reference	63786
	Maker reference	004020600015

WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001

	P2R reference	63590
	Maker reference	000000230605

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060
