Vehicle Exploded View - GILERA SMT 50 SMT 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

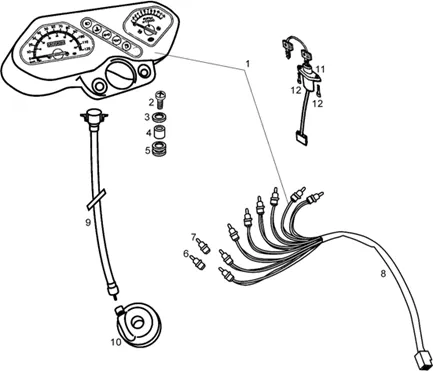

Connexions électriques : T20 TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/654/SMT_1998-2005_T20.PNG)
1 |
COMPTEUR GSM |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/0/3/img/63703.jpg)
2 |
SCREW CRUCIFORME (5X80) OEM PIAGIO COMMON A LA RANGE-00012152000 More informationQuantity required : 1 |
||||||
|
3 |
00454050001-WASHER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/7/2/img/64572.jpg)
4 |
SPACER OEM PIAGGIO COMMON A LA RANGE-00H01600911 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/1/img/63881.jpg)
5 |
RUBBER GUIDE-CABLE/RUBBER MOUNT OEM DERBI 50 SENDA 2000 > 2017/GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX-00D01500021 More informationQuantity required : 1 |
||||||
|
6 |
00G01602581-R-DOOR-LAMPES More informationQuantity required : 1 |
||||||
|
7 |
00G01601581-R-DOOR-LAMPES More informationQuantity required : 1 |
||||||
|
8 |
00H04316651 - FAISCEAU COMPTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/8/0/img/64580.jpg)
9 |
TRANSMISSION SPEEDOMETER CABLE "PIAGGIO GENUINE PART" GILERA 50 SMT 1998>2005 -00H01612021 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/0/8/img/64008.jpg)
10 |
SPEEDOMETER SOCKET "PIAGGIO GENUINE PART" GILERA 50 SMT 1998>2005 -00G01607051- More informationQuantity required : 1 |
||||||
|
11 |
00H01610381 - SET SERRURE More informationQuantity required : 1 |
||||||
|
12 |
|
