Vehicle Exploded View - DERBI SENDA SM 50 SM X-RACE 2004 E2 2ª EDICION
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

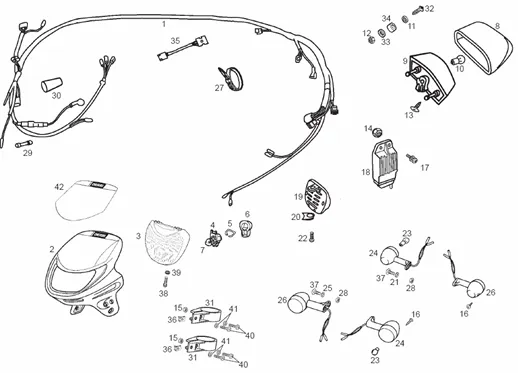

Tables : 7 CIRCUIT ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1042/SM_X-RACE_2004_E2_2_EDICION_7.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/9/0/img/64390.jpg)
1 |
HARNESS ELECTRIC OEM PIAGGIO GILERA 50 SMT, RCR 2006 > 2010/DERBI 50 SENDA 2005 > 2010-00H01046301 More informationQuantity required : 1 |
|||||||||
2 |
00H02258871 - PLAQUE PHARE More informationQuantity required : 1 |
|||||||||
|
2 |
00H02258874 - PLAQUE PHARE More informationQuantity required : 1 |
|||||||||
|
2 |
00H02258875 - PLAQUE PHARE More informationQuantity required : 1 |
|||||||||
|
3 |
00H01012011 - OPTIQUE COMPLETE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/4/1/img/63641.jpg)
4 |
DOOR-LAMPE DE HEADLAMP OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00003710110 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/4/2/img/63642.jpg)
5 |
SPRING DOOR AMPOULE/LAMPE FRONT OEM DERBI 50 SENDA 2017 </GILERA 50 SMT, RCR 2017 </APRILIA 50 SX, RX 2017 <-00003710120 More informationQuantity required : 1 |
|||||||||
|
6 |
00D05700141 - R-PROT.PORTE-LAMPES PHARE F More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/4/2/img/65942.jpg)
7 |
AMPOULE/LAMPE 12V 35/35W S2 OEM PIAGGIO COMMON A LA RANGE-219528 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/8/3/img/64383.jpg)
8 |
LAMP REAR OEM DERBI 50 SENDA 2006 </GILERA 50 SMT, RCR 2006 > 2010-00H01006321 More informationQuantity required : 1 |
|||||||||
|
9 |
LAMP REAR OEM DERBI 50 SENDA 2006 </GILERA 50 SMT, RCR 2006 > 2010-00H01006321 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/6/6/img/64366.jpg)
10 |
AMPOULE/LAMPE 12V 21/5W BAY15D OEM PIAGGIO COMMON A LA RANGE-00H01000371 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/4/0/img/64840.jpg)
11 |
WASHER PLATE (5, 3X15X1) OEM PIAGGIO COMMON A LA RANGE-00H03800722 More informationQuantity required : 1 |
|||||||||
|
12 |
|
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/5/7/img/63957.jpg)
13 |
SCREW - FOR TAIL LAMP LENS "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR 2006>2010 -00G01001571 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
14 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
15 |
NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105 More informationQuantity required : 1 |
|||||||||
|
16 |
00011021300-SCREW More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/2/3/img/63923.jpg)
17 |
SCREW CRUCIFORME (6X16) MAINTIEN PANEL DE EDGE OU COQUE REAR OEM PIAGGIO APRILIA 50 RS 2006 > 2010-00F05900041 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/8/5/img/64385.jpg)
18 |
VOLTAGE REGULATOR- "PIAGGIO GENUINE PART" GILERA 50 GPR -00H01007841- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/8/2/img/64382.jpg)
19 |
HORN "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00H01005311 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
20 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/6/img/63726.jpg)
21 |
WASHER PLATE (6X12X1. 7) OEM PIAGGIO COMMON A LA RANGE-00031106000 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/9/6/img/63696.jpg)
22 |
SCREW CRUCIFORME (6X12) OEM PIAGGIO COMMON A LA RANGE-00012061200 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
23 |
AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332 More informationQuantity required : 1 |
|||||||||
|
24 |
00H01703301 - GLIGNOTEURS AR. DROITE More informationQuantity required : 1 |
|||||||||
|
25 |
WASHER PLATE (6X12X1. 7) OEM PIAGGIO COMMON A LA RANGE-00031106000 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/9/5/img/64595.jpg)
26 |
REAR LEFT INDICATOR/FRONT RIGHT OEM DERBI 50 SENDA 2004 > 2010/GILERA 50 SMT, RCR 2003 > 2010-00H01703391 More informationQuantity required : 1 |
|||||||||
|
27 |
ATTACHE CABLE RISLAN DEMONTABLE OEM PIAGGIO APRILIA RS 50 2006 > 2010, RX-SX 50 2006 > 2017/GILERA SMT 50 1998 > 2017-00D00900531 More informationQuantity required : 1 |
|||||||||
|
28 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060 More informationQuantity required : 1 |
|||||||||
|
29 |
00G01000911-FUSIBLE 4 AH. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/8/4/img/64684.jpg)
30 |
PROTECTOR DE CONNEXIONS ON HARNESS OEM PIAGGIO GILERA 50 SMT, RCR 2011 >/DERBI 50 SENDA 2000 >/APRILIA 50 SX, RX 2011 >-00H02300961 More informationQuantity required : 1 |
|||||||||
|
31 |
00H04612841-SPACER More informationQuantity required : 1 |
|||||||||
|
32 |
00004053500 - VIS A TETE ALLEN 5M80X50 More informationQuantity required : 1 |
|||||||||
|
32 |
AP8150051-SCREW More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/7/6/img/64376.jpg)
33 |
SPACER OF REAR LIGHT OU BRAKE MASTER CYLINDER REAR OEM PIAGGIO 50 GILERA SMT 2006/DERBI SENDA 2000 > 2010/APRILIA RS 2006 > 2010-00H01002821 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/5/1/img/65051.jpg)
34 |
RUBBER MOUNT OF FITTING KIT LAMP REAR OEM PIAGGIO GILERA 50 50 SMT, RCR/DERBI 50 SENDA 2000 > 2010-00H06800461 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/9/9/7/img/64997.jpg)
35 |
CENTRE CLIGNOTANTE OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2000 > 2017/APRILIA 50 SX, RX 2006 > 2017-00H05700481 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
36 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462 More informationQuantity required : 1 |
|||||||||
|
37 |
00008062000-BOLT BOMBEE ALLEN 6M100X20 More informationQuantity required : 1 |
|||||||||
|
38 |
|
|||||||||
|
39 |
WASHER PLATE (5, 3X15X1) OEM PIAGGIO COMMON A LA RANGE-00H03800722 More informationQuantity required : 1 |
|||||||||
|
40 |
00008051600-BOLT BOMBEE ALLEN 5M80X16 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
41 |
WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226 More informationQuantity required : 1 |
|||||||||
|
42 |
00H01534231 - DECAL DE PLAQUE PHARE More informationQuantity required : 1 |
|||||||||
|
42 |
00H01534233 - DECAL DE PLAQUE PHARE More informationQuantity required : 1 |
|||||||||
|
42 |
00H01534235 - DECAL DE PLAQUE PHARE More informationQuantity required : 1 |
|||||||||
