Vehicle Exploded View - DERBI SENDA SM 50 SENDA SM X-TREM 2008 E2 3ver
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

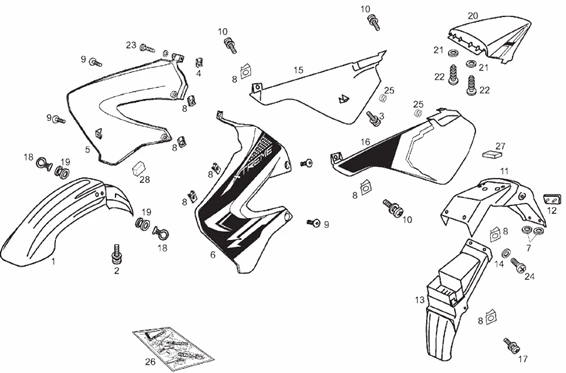

Tables : 5 CARROSSERIE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1050/SENDA_SM_X-TREM_2008_E2_3ver_5.png)
1 |
00H007170235-GUARD-MUD FRONT More informationQuantity required : 1 |
||||||
|
1 |
00H007170255 - R-GUARDB.DLNT.ROJ.FLU.SM X-TREM 06 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/0/8/img/65008.jpg)
2 |
SCREW CRUCIFORME (6X16) BOCAL COOLING OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2005 > 2015/APRILIA SX, RX-00H05900021 More informationQuantity required : 1 |
||||||
|
3 |
SCREW CRUCIFORME (6X16) BOCAL COOLING OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2005 > 2015/APRILIA SX, RX-00H05900021 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
4 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462 More informationQuantity required : 1 |
||||||
|
5 |
00H04410771-COVER FRONT More informationQuantity required : 1 |
||||||
|
5 |
86514701WN05 - R-CTO.TAPA DLNT.DR.NGR.SM X-TREM 08 More informationQuantity required : 1 |
||||||
|
6 |
86514900WN05-CTO. TAPA DLNT. IZ. NGR. SM X-TREM 08 More informationQuantity required : 1 |
||||||
|
6 |
86514901WN05 - CARENAGE GAU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/4/4/img/69844.jpg)
7 |
WASHER DE HEAD OF FORK D5 INOX OEM PIAGGIO 50 APRILIARS 2006 > 2010/DERBI 50 SENDA 2000 >/GILERA SMT, RCR 2006 >-861239 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
8 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/9/2/img/63992.jpg)
9 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX 2006>2010 -00G01503701 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/2/3/img/63923.jpg)
10 |
SCREW CRUCIFORME (6X16) MAINTIEN PANEL DE EDGE OU COQUE REAR OEM PIAGGIO APRILIA 50 RS 2006 > 2010-00F05900041 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/9/9/img/64299.jpg)
11 |
MUD FLAP/DOOR PLATE OEM DERBI 50 SENDA 2000 < 2010/GILERA 50 SMT, RCR 2006 > 2010-00H00712341 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/8/img/64118.jpg)
12 |
REAR REFLECTOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2009 -00G04400752 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/9/3/img/64293.jpg)
13 |
REAR MUDGUARD INNER OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00H00705121 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
14 |
WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171 More informationQuantity required : 1 |
||||||
|
15 |
00H00505074-TAPA LAT. DR. SENDA SM NEGRA More informationQuantity required : 1 |
||||||
|
16 |
00H00505084 - TAPA LAT.IZ.SENDA SM 2000 NEGR More informationQuantity required : 1 |
||||||
|
16 |
86514101WN05 - CARENAGE LAT.GAU. More informationQuantity required : 1 |
||||||
|
17 |
SCREW CRUCIFORME (6X16) BOCAL COOLING OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2005 > 2015/APRILIA SX, RX-00H05900021 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/6/8/img/64668.jpg)
18 |
GUIDE CABLE DE FLEXIBLE OF BRAKE FRONT OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2010/APRILIA 50-125 SX, RX-00H02201591 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/1/img/63881.jpg)
19 |
RUBBER GUIDE-CABLE/RUBBER MOUNT OEM DERBI 50 SENDA 2000 > 2017/GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX-00D01500021 More informationQuantity required : 1 |
||||||
|
20 |
86514400WN05 - R-CTO.COLIN NGR.ROJ.SM X-TREM 08 More informationQuantity required : 1 |
||||||
|
20 |
86514401WN05 - R-CTO.COLIN NGR.AZL.SM X-TREM 08 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
21 |
WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/8/1/img/63681.jpg)
22 |
SCREW AUTOTARAUDEUSE (5X14) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-00011051401 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/0/3/img/63703.jpg)
23 |
SCREW CRUCIFORME (5X80) OEM PIAGIO COMMON A LA RANGE-00012152000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/9/6/img/63696.jpg)
24 |
SCREW CRUCIFORME (6X12) OEM PIAGGIO COMMON A LA RANGE-00012061200 More informationQuantity required : 1 |
||||||
|
25 |
00H00501761-RUBBER MOUNT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/8/7/6/4/img/188764.jpg)
26 |
865269 - R-CTO.KIT CALCAS SM X-TREM 08 NGR/ROJ More informationQuantity required : 1 |
||||||
|
26 |
865270-R-CTO. KIT CALCAS SM X-TREM 08 NGR/AZL More informationQuantity required : 1 |
||||||
|
27 |
00H05900621 - ESPUMA ADHESIVA DE 5MMX360MM More informationQuantity required : 1 |
||||||
|
28 |
AP8117041-EPONGE ADHESIVE More informationQuantity required : 1 |
