Vehicle Exploded View - DERBI SENDA SM 50 SENDA SM X-TREM 2006 E2 3ed
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

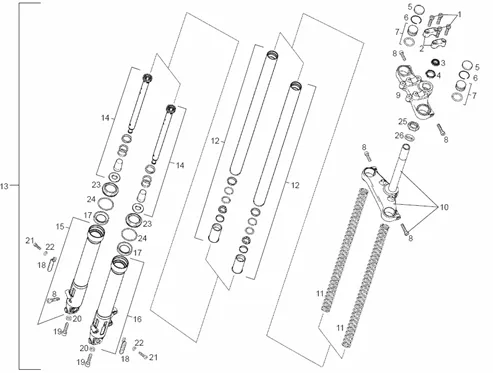

Suspensions - roues : 02A FOURCHE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1049/SENDA_SM_X-TREM_2006_E2_3ed_02A.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/2/0/img/63620.jpg)
1 |
00002084011 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/8/2/img/64182.jpg)
2 |
CAVALIER DE HANDLEBAR OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA X TREME 2002 > 2006-00H00203741 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/7/6/img/64176.jpg)
3 |
COVER NUT DE PLATINE SUPERIEURE OEM DERBI 50 SENDA 2003 > 2009/GILERA 50 SMT, RCR 2006-00H00202761 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/9/0/img/64190.jpg)
4 |
NUT - FOR UPPER FORK PLATE FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> -00H00204601 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/3/5/img/64635.jpg)
5 |
CAP DE TUBE DE FORK OEM DERBI 50 SENDA 2003 > 2006/GILERA SMT, RCR 2006 >-00H02003541 More informationQuantity required : 1 |
||||||
6 |
00H00202501 - JOINT DE JAUGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/9/1/img/64191.jpg)
7 |
CAP DE ROD OF FORK OEM PIAGGIO GILERA 50 SMT, RCR-00H00205271 More informationQuantity required : 1 |
||||||
|
8 |
00022083521 - VIS T. CREUSE More informationQuantity required : 1 |
||||||
|
9 |
00H00213092 - ETRIER FIX. GUIDON More informationQuantity required : 1 |
||||||
|
10 |
00H00211012 - PLATINE INF. AVEC PIVOT More informationQuantity required : 1 |
||||||
|
11 |
00H00210171 - RESSORT DE FOURCHE More informationQuantity required : 1 |
||||||
|
12 |
00H02003871 - BARRE DE FOURCHE More informationQuantity required : 1 |
||||||
|
13 |
00H00227003 - FOURCHE DIRITICE More informationQuantity required : 1 |
||||||
|
14 |
00H00202531 - TUBE HYDRAULIQUE More informationQuantity required : 1 |
||||||
|
15 |
00H02013031 - BOUCHON DROITE More informationQuantity required : 1 |
||||||
|
16 |
00H02016041 - BOUCHON GAUCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/8/8/img/64188.jpg)
17 |
OIL SEAL FORK (35X48X11) OEM PIAGIO GILERA 50 SMT, RCR, 125 SCARABEO LIGHT 2007 > 2012-00H00204471 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/1/6/img/64616.jpg)
18 |
CATADIOPTRE DE FORK OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2003 > 2017/APRILIA SX, RX 2006 > 2017-00H01802081 More informationQuantity required : 1 |
||||||
|
19 |
00004013500-SCREW TARAUD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/7/img/63597.jpg)
20 |
WASHER PLATE (10. 6X20. 7X1. 8) OEM PIAGGIO COMMON A LA RANGE-00000031100 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/6/4/img/63664.jpg)
21 |
SCREW BTR HEAD BOMBEE (6X16) OEM PIAGGIO COMMON A LA RANGE-00008061500 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/6/img/63726.jpg)
22 |
WASHER PLATE (6X12X1. 7) OEM PIAGGIO COMMON A LA RANGE-00031106000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/8/6/img/64186.jpg)
23 |
PROTECTOR-POUSSIERE DE FORK (D 36) OEM PIAGGIO GILERA 50 SMT, RCR 2006 > 2010-00H00204231 More informationQuantity required : 1 |
||||||
|
24 |
00H00201701-GASKET OF JAUGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/2/4/img/63924.jpg)
25 |
NUT UPPER DE FORK OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00G00200112 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/6/8/img/63868.jpg)
26 |
COVER POUSSIERE COLONNE STEERING OEM DERBI 50 SENDA 2010 > 2017/GILERA 50RCR, SMT 2006 > 2017-00D00200761 More informationQuantity required : 1 |
