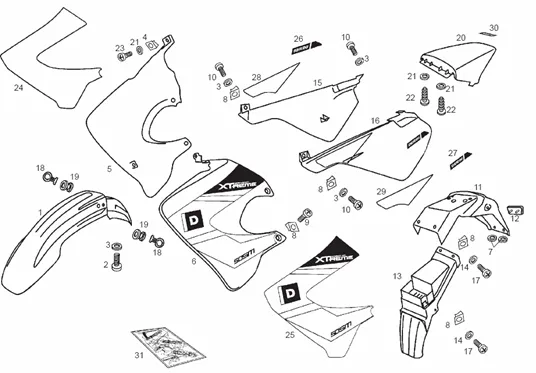

Vehicle Exploded View - DERBI SENDA SM 50 SENDA SM X-TREM 2005 E2 2ª edicion

	P2R reference	188716
	Maker reference	00H007170225

00H007170225 - GARDE-BOUE AVANT

	P2R reference	188717
	Maker reference	00H007170235

00H007170235-GUARD-MUD FRONT

	P2R reference	188718
	Maker reference	00H007190225

00H007190225 - GARDE-BOUE AVANT RGE

	P2R reference	188719
	Maker reference	00H007190235

00H007190235 - GARDE-BOUE AVANT

	P2R reference	63704
	Maker reference	000121616005

SCREW CRUCIFORME (6X16) MOUNTING AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX,-00012161600

	P2R reference	63876
	Maker reference	00D01200171

WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	188720
	Maker reference	00H04410773

00H04410773 - TAPA DLN.DCHA.BLNCA.DRD EDITON

	P2R reference	188721
	Maker reference	00H044398025

00H044398025 - COUVERTURE DRT

	P2R reference	188720
	Maker reference	00H04410773

00H04410773 - TAPA DLN.DCHA.BLNCA.DRD EDITON

	P2R reference	188722
	Maker reference	00H04410783

00H04410783 - TAPA DLN.IZDA.BLNCA.DRD EDITON

	P2R reference	69844
	Maker reference	861239

WASHER DE HEAD OF FORK D5 INOX OEM PIAGGIO 50 APRILIARS 2006 > 2010/DERBI 50 SENDA 2000 >/GILERA SMT, RCR 2006 >-861239

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	63992
	Maker reference	00G01503701

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX 2006>2010 -00G01503701

	P2R reference	63704
	Maker reference	000121616005

SCREW CRUCIFORME (6X16) MOUNTING AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX,-00012161600

	P2R reference	64299
	Maker reference	00H00712341

MUD FLAP/DOOR PLATE OEM DERBI 50 SENDA 2000 < 2010/GILERA 50 SMT, RCR 2006 > 2010-00H00712341

	P2R reference	64118
	Maker reference	00G04400752

REAR REFLECTOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2009 -00G04400752

	P2R reference	64293
	Maker reference	00H00705121

REAR MUDGUARD INNER OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00H00705121

	P2R reference
	Maker reference	031059

BOULON S03105900

	P2R reference	187510
	Maker reference	00H00505074

00H00505074-TAPA LAT. DR. SENDA SM NEGRA

	P2R reference	188723
	Maker reference	00H00559692

00H00559692 - PLAQUE LATERAL DROITE AVEC

	P2R reference	187510
	Maker reference	00H00505074

00H00505074-TAPA LAT. DR. SENDA SM NEGRA

	P2R reference	188415
	Maker reference	00H00505084

00H00505084 - TAPA LAT.IZ.SENDA SM 2000 NEGR

	P2R reference	188724
	Maker reference	00H00559702

00H00559702 - FLANC LAT.G.AVEC DECAL

	P2R reference	188725
	Maker reference	00H00559704

00H00559704 - FLANC LAT.G.AVEC DECAL

	P2R reference	63704
	Maker reference	000121616005

SCREW CRUCIFORME (6X16) MOUNTING AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX,-00012161600

	P2R reference	64668
	Maker reference	00H02201591

GUIDE CABLE DE FLEXIBLE OF BRAKE FRONT OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2010/APRILIA 50-125 SX, RX-00H02201591

	P2R reference	63881
	Maker reference	00D01500021

RUBBER GUIDE-CABLE/RUBBER MOUNT OEM DERBI 50 SENDA 2000 > 2017/GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX-00D01500021

	P2R reference	188726
	Maker reference	00H00618161

00H00618161 - COUVRE-SELLE

	P2R reference	188681
	Maker reference	00H006181665

00H006181665-DOSSERET SEAT

	P2R reference	69496
	Maker reference	847226

WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226

	P2R reference	63681
	Maker reference	000110514015

SCREW AUTOTARAUDEUSE (5X14) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-00011051401

	P2R reference	63703
	Maker reference	000121520005

SCREW CRUCIFORME (5X80) OEM PIAGIO COMMON A LA RANGE-00012152000

	P2R reference	188727
	Maker reference	00H04928561

00H04928561 - ADHESIF

	P2R reference	188728
	Maker reference	00H04928562

00H04928562 - ADHESIF

	P2R reference	188729
	Maker reference	00H04928563

00H04928563 - ADHESIF

	P2R reference	188730
	Maker reference	00H04928564

00H04928564 - ADHESIF

	P2R reference	188731
	Maker reference	00H04928571

00H04928571 - ADHESIF

	P2R reference	188732
	Maker reference	00H04928572

00H04928572 - ADHESIF

	P2R reference	188733
	Maker reference	00H04928573

00H04928573 - ADHESIF

	P2R reference	188734
	Maker reference	00H04928574

00H04928574 - ADHESIF

	P2R reference	188735
	Maker reference	00H00521651

00H00521651 - DECAL FLANC D.

	P2R reference	188736
	Maker reference	00H00521652

00H00521652 - DECAL FLANC D.

	P2R reference	188737
	Maker reference	00H00522651

00H00522651 - ADHESIF

	P2R reference	188738
	Maker reference	00H00521641

00H00521641 - DECAL LAT.

	P2R reference	188739
	Maker reference	00H00521642

00H00521642 - DECAL LAT.

	P2R reference	188740
	Maker reference	00H00522641

00H00522641 - ADHESIF

	P2R reference	188493
	Maker reference	00H00519651

00H00519651-ADHESIF

	P2R reference	188495
	Maker reference	00H00526641

00H00526641-ADHESIF

	P2R reference	188741
	Maker reference	00H00608521

00H00608521-ADHESIF DERBI

	P2R reference	188742
	Maker reference	00H05167651

00H05167651 - JEU ADHESIF

	P2R reference	188743
	Maker reference	00H05167652

00H05167652 - JEU ADHESIF

	P2R reference	188744
	Maker reference	00H05167653

00H05167653-SET ADHESIF

	P2R reference	188745
	Maker reference	00H05167654

00H05167654 - JEU ADHESIF
