Vehicle Exploded View - DERBI SENDA SM 50 SENDA SM X-TREM 2004 E2 DERBI

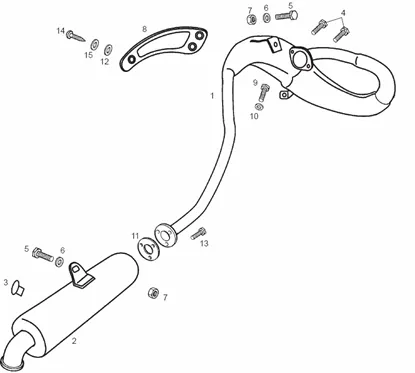

Tables : 21 GROUPE ECHAPPEMENT
Groupe echappement
Search
00H03439081 - ENSEMBLE TUBE DIECHAPPEMENT

1
P2R reference P2R reference 64800
Maker reference Maker reference 00H03439081

00H03439081 - ENSEMBLE TUBE DIECHAPPEMENT

More information

Quantity required : 1

86126R - SILENCIEUX DIECHAPPEMENT

2
P2R reference P2R reference 69845
Maker reference Maker reference 86126R

86126R - SILENCIEUX DIECHAPPEMENT

More information

Quantity required : 1

00G01500951 - APPUI BEQUILLE LATERALE

3
P2R reference P2R reference 63988
Maker reference Maker reference 00G01500951

00G01500951-APPUI SIDE STAND

More information

Quantity required : 1

SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8150044

4
P2R reference P2R reference 71815
Maker reference Maker reference AP8150044

SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8150044

More information

Quantity required : 1

5
P2R reference P2R reference
Maker reference Maker reference 000000028165

WASHER PLATE (8. 4X15. 8X1. 5) OEM PIAGGIO COMMON A LA RANGE-00000031080

6
P2R reference P2R reference 63596
Maker reference Maker reference 000000310805

WASHER PLATE (8. 4X15. 8X1. 5) OEM PIAGGIO COMMON A LA RANGE-00000031080

More information

Quantity required : 1

7
P2R reference P2R reference
Maker reference Maker reference 000232080005

EXHAUST PROTECTION - "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2010 -00H01800402-

8
P2R reference P2R reference 64603
Maker reference Maker reference 00H01800402

EXHAUST PROTECTION - "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2010 -00H01800402-

More information

Quantity required : 1

00004061600 - VIS

9
P2R reference P2R reference 63646
Maker reference Maker reference 000040616005

00004061600-SCREW

More information

Quantity required : 1

WASHER GROWER D6 OEM PIAGGIO COMMON A LA RANGE-00442060002

10
P2R reference P2R reference 63790
Maker reference Maker reference 004420600025

WASHER GROWER D6 OEM PIAGGIO COMMON A LA RANGE-00442060002

More information

Quantity required : 1

GASKET SILENCER EXHAUST OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX 2006 >-00H03404321

11
P2R reference P2R reference 64792
Maker reference Maker reference 00H03404321

GASKET SILENCER EXHAUST OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX 2006 >-00H03404321

More information

Quantity required : 1

WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181

12
P2R reference P2R reference 69480
Maker reference Maker reference 847181

WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181

More information

Quantity required : 1

SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-00D05910081

13
P2R reference P2R reference 63895
Maker reference Maker reference 00D05910081

SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-00D05910081

More information

Quantity required : 1

SCREW CRUCIFORME (4X15) OEM PIAGGIO COMMON A LA RANGE-00000012415

14
P2R reference P2R reference 63580
Maker reference Maker reference 000000124155

SCREW CRUCIFORME (4X15) OEM PIAGGIO COMMON A LA RANGE-00000012415

More information

Quantity required : 1

WASHER FIBRE (M5X20X2) OEM PIAGGIO COMMON A LA RANGE-00F04201361

15
P2R reference P2R reference 63922
Maker reference Maker reference 00F04201361

WASHER FIBRE (M5X20X2) OEM PIAGGIO COMMON A LA RANGE-00F04201361

More information

Quantity required : 1
