Vehicle Exploded View - DERBI SENDA SM 50 SENDA SM X-RACE 2007 E2 3ed DERBI

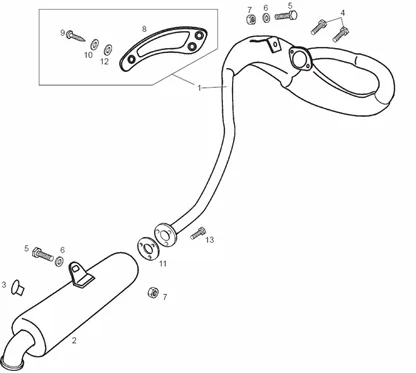

Moteur : 12 GROUPE ECHAPPEMENT
Groupe echappement
Search
00H03446081 - ENSEMBLE TUBE DIECHAPPEMENT

1
P2R reference P2R reference 64803
Maker reference Maker reference 00H03446081

00H03446081 - ENSEMBLE TUBE DIECHAPPEMENT

More information

Quantity required : 1

862964 - POT D'ECHAPPEMENT COMPLET

1
P2R reference P2R reference 69985
Maker reference Maker reference 862964

862964 - POT D'ECHAPPEMENT COMPLET

More information

Quantity required : 1

86126R - SILENCIEUX DIECHAPPEMENT

2
P2R reference P2R reference 69845
Maker reference Maker reference 86126R

86126R - SILENCIEUX DIECHAPPEMENT

More information

Quantity required : 1

00G01500951 - APPUI BEQUILLE LATERALE

3
P2R reference P2R reference 63988
Maker reference Maker reference 00G01500951

00G01500951-APPUI SIDE STAND

More information

Quantity required : 1

SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8150044

4
P2R reference P2R reference 71815
Maker reference Maker reference AP8150044

SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8150044

More information

Quantity required : 1

00012081621 - VISA TETE HEXAG.8M125X16

5
P2R reference P2R reference 63699
Maker reference Maker reference 000120816215

00012081621-VISA HEAD HEXAG. 8M125X16

More information

Quantity required : 1

WASHER PLATE (D8) MOUNTING ENGINE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA/APRILIA 50 SX, RX, RS-00402080001

6
P2R reference P2R reference 63787
Maker reference Maker reference 004020800015

WASHER PLATE (D8) MOUNTING ENGINE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA/APRILIA 50 SX, RX, RS-00402080001

More information

Quantity required : 1

NUT AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-00023108000

7
P2R reference P2R reference 63715
Maker reference Maker reference 000231080005

NUT AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-00023108000

More information

Quantity required : 1

EXHAUST PROTECTION - "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2010 -00H01800402-

8
P2R reference P2R reference 64603
Maker reference Maker reference 00H01800402

EXHAUST PROTECTION - "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2010 -00H01800402-

More information

Quantity required : 1

SCREW CRUCIFORME (4X15) OEM PIAGGIO COMMON A LA RANGE-00000012415

9
P2R reference P2R reference 63580
Maker reference Maker reference 000000124155

SCREW CRUCIFORME (4X15) OEM PIAGGIO COMMON A LA RANGE-00000012415

More information

Quantity required : 1

WASHER FIBRE (M5X20X2) OEM PIAGGIO COMMON A LA RANGE-00F04201361

10
P2R reference P2R reference 63922
Maker reference Maker reference 00F04201361

WASHER FIBRE (M5X20X2) OEM PIAGGIO COMMON A LA RANGE-00F04201361

More information

Quantity required : 1

GASKET SILENCER EXHAUST OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX 2006 >-00H03404321

11
P2R reference P2R reference 64792
Maker reference Maker reference 00H03404321

GASKET SILENCER EXHAUST OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX 2006 >-00H03404321

More information

Quantity required : 1

WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181

12
P2R reference P2R reference 69480
Maker reference Maker reference 847181

WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181

More information

Quantity required : 1

SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-00D05910081

13
P2R reference P2R reference 63895
Maker reference Maker reference 00D05910081

SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-00D05910081

More information

Quantity required : 1
