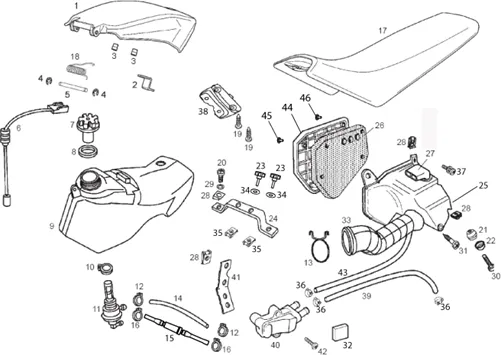

Vehicle Exploded View - DERBI SENDA SM 50 Senda SM DRD X-Treme 2T E2 2014-2017 (EMEA)

	P2R reference	70070
	Maker reference	864857

HATCH DE TANK OEM PIAGGIO 50 GILERA SMT, RCR 2011 > 2017/DERBI SENDA 2010 > 2017-864857

	P2R reference	70067
	Maker reference	864819

LEVER LOCK HATCH A FUEL OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/DERBI SENDA 2010 >/APRILIA 50 SX, RX 2006 >-864819

	P2R reference	70115
	Maker reference	865453

BUFFER HATCH DE TANK OEM PIAGGIO 50 GILERA SMT, RCR 2011 > 2017/DERBI SENDA 2010 > 2017-865453

	P2R reference	63736
	Maker reference	000470304005

CLIPS SHAFT OF HATCH A FUEL OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2000 >/APRILIA 50 SX, RX-00047030400

	P2R reference	65043
	Maker reference	00H06303752

SHAFT OF HATCH A FUEL OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR/APRILIA 50 SX, RX-00H06303752

	P2R reference	72809
	Maker reference	B043773

JAUGE/SONDE A FUEL OEM DERBI 50 SENDA 2007 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 > (FIL JAUNE/VERT + FIL RED)-B043773

	P2R reference	70056
	Maker reference	864489
	Replaced by référence 72809

FUEL LEVEL GAUGE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX (FIL JAUNE/GREEN+FIL RED) -864489

	P2R reference	63934
	Maker reference	00G00401131

CAP TANK D'ESSENCE OEM DERBI 50 SENDA 2003 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00G00401131

	P2R reference	63897
	Maker reference	00F00400771

WASHER CAP DE TANK OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2000 >/APRILIA 50 SX, RX-00F00400771

	P2R reference	64252
	Maker reference	00H00406011

FUEL TANK OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2003 >/APRILIA RX, SX 2006 >-00H00406011

	P2R reference	63932
	Maker reference	00G00400501

CLAMP ROBINET FUEL OEM DERBI 50 SENDA 2000 >-00G00400501

	P2R reference	63930
	Maker reference	00G00400181

ROBINET FUEL OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >, RS4 2011 >-00G00400181

	P2R reference	71155
	Maker reference	AP8101595

CLAMP HOSE (10, 1) OEM PIAGGIO COMMON A LA RANGE-AP8101595

	P2R reference	64080
	Maker reference	00G03204272

CLAMP HOSE DE AIR FILTER OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA 50 SX, RX 2006 >-00G03204272

	P2R reference	70868
	Maker reference	896544

HOSE/FUEL HOSE (5. 5X10) OEM APRILIA-MOTO GUZZI COMMON A LA RANGE-896544

	P2R reference	70187
	Maker reference	866497

866497-FILTER

	P2R reference	72888
	Maker reference	CM002901

HOSE CLAMP HOSE (5X8) OEM PIAGGIO COMMON A LA RANGE-CM002901

	P2R reference	70261
	Maker reference	8669451001

SEAT BLACK OEM PIAGGIO 50 SMT, RCR GILERA/SENDA R, SM DERBI X-TREME 2011 > 2017-8669451001

	P2R reference	65044
	Maker reference	00H063037626

SPRING HATCH DE TANK OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX 2006 >-00H063037626

	P2R reference	71897
	Maker reference	AP8150509

SCREW CRUCIFORME (5X15) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150509

	P2R reference	71941
	Maker reference	AP8152277

SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277

	P2R reference	63673
	Maker reference	000089150205

RUBBER MOUNT DE RADIATOR OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA RS 2006 > 2011, SX, RX 2006 >-00008915020

	P2R reference	71481
	Maker reference	AP8121679

AP8121679-" BUSH EN " " T " " "

	P2R reference	69864
	Maker reference	861417

SCREW MOUNTING DE SEAT OEM DERBI 50 SENDA 2007 >/GILERA 50 SMT, RCR 2011 >/APRILIA 50 SX, RX 2011 >-861417

	P2R reference	64249
	Maker reference	00H00404051

BRACKET MOUNTING FUEL TANK OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA 50 SX, RX 2006 >-00H00404051

	P2R reference	127205
	Maker reference	B043536

HOUSING DE AIR FILTER OEM PIAGGIO APRILIA 50 SX, RX 2014 >-B043536

	P2R reference	151717
	Maker reference	B043766

BASE DE HOUSING AIR OEM DERBI 50 SENDA 2012 >/GILERA 50 SMT 2018 >-B043766

	P2R reference	157088
	Maker reference	B0432990P

ELEMENT/MOUSSE DE AIR FILTER (PREMIUM) OEM DERBI 50 SENDA 2000 </GILERA 50 SMT 2006 >/APRILIA 50 RX 2006 >, SX 2006 >-B0432990P

	P2R reference	64771
	Maker reference	00H03208491

SLEEVE ASPIRATION DE AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 >/APRILIA SX, RX 2006 >-00H03208491

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	63876
	Maker reference	00D01200171

WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171

	P2R reference	63704
	Maker reference	000121616005

SCREW CRUCIFORME (6X16) MOUNTING AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX,-00012161600

	P2R reference	63751
	Maker reference	000734819645

SCREW PARKER (4, 8X19) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-00073481964

	P2R reference	71346
	Maker reference	AP8117041

AP8117041-EPONGE ADHESIVE

	P2R reference	64767
	Maker reference	00H03207261

SLEEVE AIR FILTER 50 A BOX OEM PIAGGIO GILERA 50 RCR, SMT 2006 >/APRILIA 50 RX, SX 2006 >-00H03207261

	P2R reference	63876
	Maker reference	00D01200171

WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	64856
	Maker reference	00H03802461

00H03802461-FLANGE

	P2R reference	63895
	Maker reference	00D05910081

SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-00D05910081

	P2R reference	64276
	Maker reference	00H00600341

BRACKET DE SEAT OEM PIAGGIO 50 GILERA SMT, RCR 2011 >/DERBI SENDA 2000 >/APRILIA SX, RX 2011 >-00H00600341

	P2R reference	73380
	Maker reference	CM201309

CM201309-HOSE

	P2R reference	70309
	Maker reference	867256

VALVE AIR SECONDAIRE OEM DERBI 50 SENDA 2005 >-867256

	P2R reference	65049
	Maker reference	00H06500561

00H06500561-APPUI DE BO? TE D'AIR

	P2R reference	71828
	Maker reference	AP8150165

SCREW BTR (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8150165

	P2R reference	64885
	Maker reference	00H04200721

00H04200721-HOSE ENSEMBLE BOX FILTER

	P2R reference	158939
	Maker reference	2B006024

COVER DE AIR FILTER OEM DERBI 50 SENDA 2014 > 2019/APRILIA RX, SX 2018 > 2020/GILERA SMT 2018 >-2B006024

	P2R reference	63987
	Maker reference	00G01500701

SCREW PARKER (5X38) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-00G01500701

	P2R reference	63989
	Maker reference	00G01501701

SCREW AUTOTARAUDEUSE OEM COMMON A LA RANGE PIAGGIO-00G01501701
