Vehicle Exploded View - DERBI SENDA SM 50 SENDA SM DRD RACING LTD EDITION 2007 E2
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

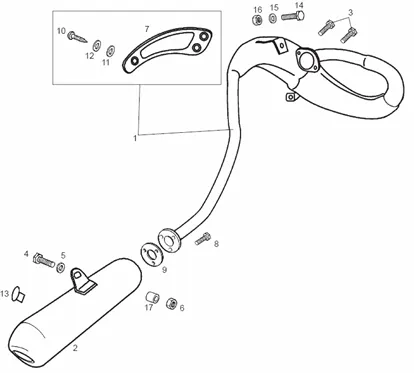

Tables : 12 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1036/SENDA_SM_DRD_RACING_LTD_EDITION_2007_E2_12.png)
1 |
00H03454081 - SCTO.ESCAPE DRD RACING ¦06 More informationQuantity required : 1 |
||||||
|
2 |
86128R-SILENCER DIECHAPPEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/5/img/71815.jpg)
3 |
SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8150044 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/1/1/img/63711.jpg)
4 |
SCREW TH (8X30) OEM PIAGGIO COMMON A LA RANGE-00022083021 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/7/img/63787.jpg)
5 |
WASHER PLATE (D8) MOUNTING ENGINE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA/APRILIA 50 SX, RX, RS-00402080001 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/1/5/img/63715.jpg)
6 |
NUT AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-00023108000 More informationQuantity required : 1 |
||||||
|
7 |
00H01810391-PROTECT. SIL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/9/5/img/63895.jpg)
8 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-00D05910081 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/9/2/img/64792.jpg)
9 |
GASKET SILENCER EXHAUST OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX 2006 >-00H03404321 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/8/0/img/63580.jpg)
10 |
SCREW CRUCIFORME (4X15) OEM PIAGGIO COMMON A LA RANGE-00000012415 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/2/2/img/63922.jpg)
11 |
WASHER FIBRE (M5X20X2) OEM PIAGGIO COMMON A LA RANGE-00F04201361 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/0/img/69480.jpg)
12 |
WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181 More informationQuantity required : 1 |
||||||
|
13 |
00G01500951-APPUI SIDE STAND More informationQuantity required : 1 |
||||||
|
14 |
00012081621-VISA HEAD HEXAG. 8M125X16 More informationQuantity required : 1 |
||||||
|
15 |
WASHER PLATE (D8) MOUNTING ENGINE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA/APRILIA 50 SX, RX, RS-00402080001 More informationQuantity required : 1 |
||||||
|
16 |
NUT AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-00023108000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/9/2/img/63892.jpg)
17 |
COUSSINET BRONZE EXHAUST OEM PIAGGIO 50 SMT 2011 > 2017/DERBI SENDA 2006 > 2015-00D04900581 More informationQuantity required : 1 |
