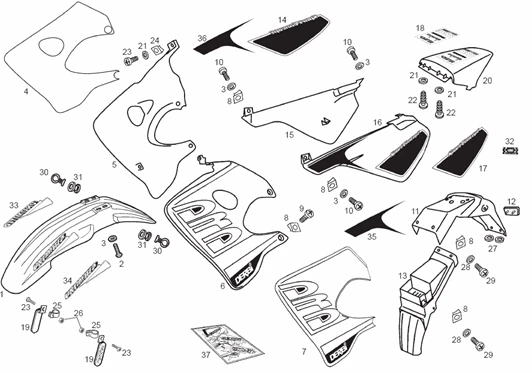

Châssis - parties plastiques - carrosseries : 5 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1028/SENDA_SM_DRD_2003_2a_EDICION_5.png)
1 |
00H00713023 - GARDE-BOUE AVANT More informationQuantity required : 1 |
||||||
|
1 |
00H007094325 - SCTO.GUARD.DT.AZ.SM DRD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/0/4/img/63704.jpg)
2 |
SCREW CRUCIFORME (6X16) MOUNTING AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX,-00012161600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
3 |
WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171 More informationQuantity required : 1 |
||||||
|
4 |
00H04919561 - ADHESIF More informationQuantity required : 1 |
||||||
|
4 |
00H04919562 - ADHESIF More informationQuantity required : 1 |
||||||
|
5 |
00H04428801 - OUIE MOTEUR D. More informationQuantity required : 1 |
||||||
|
5 |
00H044288025 - OUIE MOTEUR D. More informationQuantity required : 1 |
||||||
|
6 |
00H044288315 - OUIE MOTEUR G. More informationQuantity required : 1 |
||||||
|
6 |
00H044288325 - OUIE MOTEUR G. More informationQuantity required : 1 |
||||||
|
7 |
00H04919571 - ADHESIF More informationQuantity required : 1 |
||||||
|
7 |
00H04919572 - ADHESIF More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
8 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/9/2/img/63992.jpg)
9 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX 2006>2010 -00G01503701 More informationQuantity required : 1 |
||||||
|
10 |
SCREW CRUCIFORME (6X16) MOUNTING AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX,-00012161600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/9/9/img/64299.jpg)
11 |
MUD FLAP/DOOR PLATE OEM DERBI 50 SENDA 2000 < 2010/GILERA 50 SMT, RCR 2006 > 2010-00H00712341 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/8/img/64118.jpg)
12 |
REAR REFLECTOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2009 -00G04400752 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/9/3/img/64293.jpg)
13 |
REAR MUDGUARD INNER OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00H00705121 More informationQuantity required : 1 |
||||||
|
14 |
00H00517651 - DECAL FLANC D. More informationQuantity required : 1 |
||||||
|
14 |
00H00517652 - CALCA TAPA LAT.DR.SM DRD AZ More informationQuantity required : 1 |
||||||
|
15 |
00H005436915 - PLAQUE LATERAL DROITE AVEC More informationQuantity required : 1 |
||||||
|
15 |
00H00543692 - SCTO.TAPA LAT.DR.AZ.SM DRD More informationQuantity required : 1 |
||||||
|
16 |
00H005437015 - FLANC LAT.G.AVEC DECAL More informationQuantity required : 1 |
||||||
|
16 |
00H00543702 - SCTO.TAPA LAT.IZ.AZ.SM DRD More informationQuantity required : 1 |
||||||
|
17 |
00H00519641 - DECAL More informationQuantity required : 1 |
||||||
|
17 |
00H00519642 - CALCA TAPA LAT.IZ.SM DRD AZUL More informationQuantity required : 1 |
||||||
|
18 |
00H00606521 - ADHESIF SPONSOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/1/6/img/64616.jpg)
19 |
CATADIOPTRE DE FORK OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2003 > 2017/APRILIA SX, RX 2006 > 2017-00H01802081 More informationQuantity required : 1 |
||||||
|
20 |
00H006151615 - DOSSERET SELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/8/5/img/64285.jpg)
20 |
REAR MUDGUARD OEM PIAGGIO GILERA 50 SMT, RCR 2006 > 2010 BLACK-00H00608164 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
21 |
WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/8/1/img/63681.jpg)
22 |
SCREW AUTOTARAUDEUSE (5X14) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-00011051401 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/0/3/img/63703.jpg)
23 |
SCREW CRUCIFORME (5X80) OEM PIAGIO COMMON A LA RANGE-00012152000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
24 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462 More informationQuantity required : 1 |
||||||
|
25 |
00H01500811 - ADHESIF More informationQuantity required : 1 |
||||||
|
25 |
|
||||||
|
26 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/4/4/img/69844.jpg)
27 |
WASHER DE HEAD OF FORK D5 INOX OEM PIAGGIO 50 APRILIARS 2006 > 2010/DERBI 50 SENDA 2000 >/GILERA SMT, RCR 2006 >-861239 More informationQuantity required : 1 |
||||||
|
28 |
BOULON S03105900 |
||||||
|
29 |
SCREW CRUCIFORME (6X16) MOUNTING AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX,-00012161600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/6/8/img/64668.jpg)
30 |
GUIDE CABLE DE FLEXIBLE OF BRAKE FRONT OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2010/APRILIA 50-125 SX, RX-00H02201591 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/1/img/63881.jpg)
31 |
RUBBER GUIDE-CABLE/RUBBER MOUNT OEM DERBI 50 SENDA 2000 > 2017/GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX-00D01500021 More informationQuantity required : 1 |
||||||
|
32 |
00H04900231 - CALQUE DERBI 8 FOIS More informationQuantity required : 1 |
||||||
|
33 |
00H00708251 - ADHESIF More informationQuantity required : 1 |
||||||
|
33 |
00H00708252 - ADHESIF More informationQuantity required : 1 |
||||||
|
34 |
00H00708262 - ADHESIF More informationQuantity required : 1 |
||||||
|
34 |
|
||||||
|
35 |
00H00501281 - ADHESIF More informationQuantity required : 1 |
||||||
|
36 |
00H00519221 - ADHESIF More informationQuantity required : 1 |
||||||
|
37 |
00H05146651 - JEU ADHESIF More informationQuantity required : 1 |
||||||
|
37 |
00H05150651 - R-JUEGO CALCAS SM DRD AZUL More informationQuantity required : 1 |
