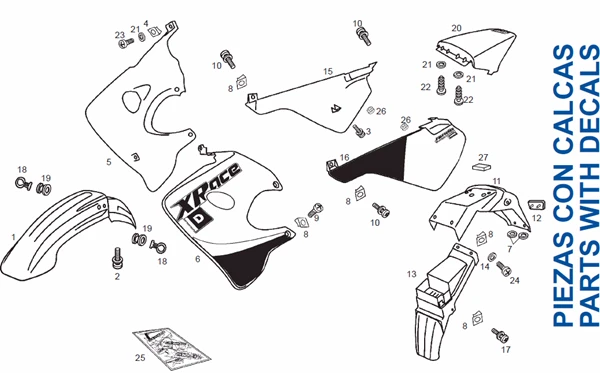

Vehicle Exploded View - DERBI SENDA SM 50 Senda SM 50 X-Race 2ver E2 2007-2009 (EMEA)

	P2R reference	64305
	Maker reference	00H00713023

00H00713023 - GARDE-BOUE AVANT

	P2R reference	65008
	Maker reference	00H05900021

SCREW CRUCIFORME (6X16) BOCAL COOLING OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2005 > 2015/APRILIA SX, RX-00H05900021

	P2R reference	65008
	Maker reference	00H05900021

SCREW CRUCIFORME (6X16) BOCAL COOLING OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2005 > 2015/APRILIA SX, RX-00H05900021

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	188446
	Maker reference	86345700W0B

86345700W0B - SCTO.TAPA DL.DR.NGR/BLN.SM X-RACE 07

	P2R reference	188447
	Maker reference	86345700W0N

86345700W0N-SCTO. TAPA DL. DR. NGR. SM X-RACE 07

	P2R reference	188448
	Maker reference	86345800W0B

86345800W0B - SCTO.TAPA DL.IZ.NGR/BLN.SM X-RACE 07

	P2R reference	188449
	Maker reference	86345800W0N

86345800W0N - SCTO.TAPA DL.IZ.NGR.SM X-RACE 07

	P2R reference	69844
	Maker reference	861239

WASHER DE HEAD OF FORK D5 INOX OEM PIAGGIO 50 APRILIARS 2006 > 2010/DERBI 50 SENDA 2000 >/GILERA SMT, RCR 2006 >-861239

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	63992
	Maker reference	00G01503701

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX 2006>2010 -00G01503701

	P2R reference	63923
	Maker reference	00F05900041

SCREW CRUCIFORME (6X16) MAINTIEN PANEL DE EDGE OU COQUE REAR OEM PIAGGIO APRILIA 50 RS 2006 > 2010-00F05900041

	P2R reference	64299
	Maker reference	00H00712341

MUD FLAP/DOOR PLATE OEM DERBI 50 SENDA 2000 < 2010/GILERA 50 SMT, RCR 2006 > 2010-00H00712341

	P2R reference	64118
	Maker reference	00G04400752

REAR REFLECTOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2009 -00G04400752

	P2R reference	64293
	Maker reference	00H00705121

REAR MUDGUARD INNER OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00H00705121

	P2R reference	63876
	Maker reference	00D01200171

WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171

	P2R reference	187510
	Maker reference	00H00505074

00H00505074-TAPA LAT. DR. SENDA SM NEGRA

	P2R reference	188450
	Maker reference	00H00515071

00H00515071 - TAPA LAT.DR.BLNC.X-TREM

	P2R reference	188451
	Maker reference	00H00515081

00H00515081 - TAPA LAT.IZ.BLNC.X-TREM

	P2R reference	188452
	Maker reference	86346010W0N5

86346010W0N5-R-SCTO. TAP. LT. IZ. NGR. SM X-RACE 07

	P2R reference	65008
	Maker reference	00H05900021

SCREW CRUCIFORME (6X16) BOCAL COOLING OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2005 > 2015/APRILIA SX, RX-00H05900021

	P2R reference	64668
	Maker reference	00H02201591

GUIDE CABLE DE FLEXIBLE OF BRAKE FRONT OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2010/APRILIA 50-125 SX, RX-00H02201591

	P2R reference	63881
	Maker reference	00D01500021

RUBBER GUIDE-CABLE/RUBBER MOUNT OEM DERBI 50 SENDA 2000 > 2017/GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX-00D01500021

	P2R reference	64285
	Maker reference	00H00608164

REAR MUDGUARD OEM PIAGGIO GILERA 50 SMT, RCR 2006 > 2010 BLACK-00H00608164

	P2R reference	69496
	Maker reference	847226

WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226

	P2R reference	63681
	Maker reference	000110514015

SCREW AUTOTARAUDEUSE (5X14) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-00011051401

	P2R reference	63703
	Maker reference	000121520005

SCREW CRUCIFORME (5X80) OEM PIAGIO COMMON A LA RANGE-00012152000

	P2R reference	63696
	Maker reference	000120612005

SCREW CRUCIFORME (6X12) OEM PIAGGIO COMMON A LA RANGE-00012061200

	P2R reference	188453
	Maker reference	86353700W0B

86353700W0B-R-CTO. KIT CALCAS SM X-RACE BLANCA 07

	P2R reference	188454
	Maker reference	86353700W0N

86353700W0N - R-CTO.KIT CALCAS SM X-RACE NEGRA 07

	P2R reference	188284
	Maker reference	00H00501761

00H00501761-RUBBER MOUNT

	P2R reference	188419
	Maker reference	00H05900621

00H05900621 - ESPUMA ADHESIVA DE 5MMX360MM
