Vehicle Exploded View - DERBI SENDA R 50 SENDA R X-TREM 2006 E2 3ed
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

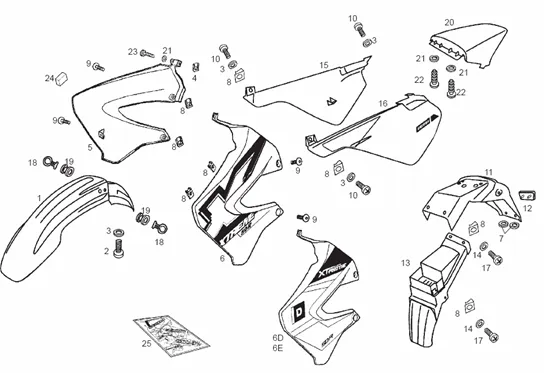

Tables : 5 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1093/SENDA_R_X-TREM_2006_E2_3ed_5.png)
1 |
00H007120235 - GARDE-BOUE AVANT RGE More informationQuantity required : 1 |
||||||
|
1 |
00H00711024 - GUARDAB.DLNT.BLANCO S-R/2000 More informationQuantity required : 1 |
||||||
|
1 |
00H007140265 - GUARDB.DLNT.RJ.FL.R X-TREM ¦06 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/0/4/img/63704.jpg)
2 |
SCREW CRUCIFORME (6X16) MOUNTING AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX,-00012161600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
3 |
WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
4 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462 More informationQuantity required : 1 |
||||||
|
5 |
00H04410773 - TAPA DLN.DCHA.BLNCA.DRD EDITON More informationQuantity required : 1 |
||||||
|
6 |
00H04438883 - ADHESIF More informationQuantity required : 1 |
||||||
|
6 |
00H04410783 - TAPA DLN.IZDA.BLNCA.DRD EDITON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/4/4/img/69844.jpg)
7 |
WASHER DE HEAD OF FORK D5 INOX OEM PIAGGIO 50 APRILIARS 2006 > 2010/DERBI 50 SENDA 2000 >/GILERA SMT, RCR 2006 >-861239 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
8 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/9/2/img/63992.jpg)
9 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX 2006>2010 -00G01503701 More informationQuantity required : 1 |
||||||
|
10 |
SCREW CRUCIFORME (6X16) MOUNTING AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX,-00012161600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/9/9/img/64299.jpg)
11 |
MUD FLAP/DOOR PLATE OEM DERBI 50 SENDA 2000 < 2010/GILERA 50 SMT, RCR 2006 > 2010-00H00712341 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/8/img/64118.jpg)
12 |
REAR REFLECTOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2009 -00G04400752 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/9/3/img/64293.jpg)
13 |
REAR MUDGUARD INNER OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00H00705121 More informationQuantity required : 1 |
||||||
|
14 |
BOULON S03105900 |
||||||
|
15 |
00H00515071 - TAPA LAT.DR.BLNC.X-TREM More informationQuantity required : 1 |
||||||
|
16 |
00H00515081 - TAPA LAT.IZ.BLNC.X-TREM More informationQuantity required : 1 |
||||||
|
17 |
SCREW CRUCIFORME (6X16) MOUNTING AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX,-00012161600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/6/8/img/64668.jpg)
18 |
GUIDE CABLE DE FLEXIBLE OF BRAKE FRONT OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2010/APRILIA 50-125 SX, RX-00H02201591 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/1/img/63881.jpg)
19 |
RUBBER GUIDE-CABLE/RUBBER MOUNT OEM DERBI 50 SENDA 2000 > 2017/GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX-00D01500021 More informationQuantity required : 1 |
||||||
|
20 |
00H00618161 - COUVRE-SELLE More informationQuantity required : 1 |
||||||
|
20 |
00H006181665-DOSSERET SEAT More informationQuantity required : 1 |
||||||
|
20 |
00H00619166 - COLIN SILLIN RJO.FL. X-TREM¦06 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
21 |
WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/8/1/img/63681.jpg)
22 |
SCREW AUTOTARAUDEUSE (5X14) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-00011051401 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/0/3/img/63703.jpg)
23 |
SCREW CRUCIFORME (5X80) OEM PIAGIO COMMON A LA RANGE-00012152000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/7/2/8/img/41728.jpg)
24 |
GASKET EPONGE ADHESIVE 15X8 OEM PIAGGIO COMMON A LA RANGE-890512 More informationQuantity required : 1 |
||||||
|
25 |
00H05166653 - JEU ADHESIF More informationQuantity required : 1 |
||||||
|
25 |
00H05166654 - JEU ADHESIF More informationQuantity required : 1 |
||||||
|
25 |
00H05176651 - R-JUEGO CALCAS SR X-TR 06 ROJO More informationQuantity required : 1 |
||||||
|
25 |
00H05176652 - R-JUEGO CALCAS SR X-TR 06 AZUL More informationQuantity required : 1 |
||||||
|
25 |
00H05176653 - R-JUEGO CALCAS SR X-TR 06 NEGR More informationQuantity required : 1 |
