Vehicle Exploded View - DERBI SENDA R 50 SENDA R X-TREM 2003 2a EDICION
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

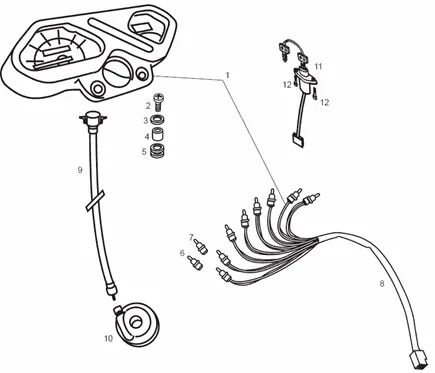

Tables : 11 INSTRUMENTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1090/SENDA_R_X-TREM_2003_2a_EDICION_11.png)
1 |
864515 - TABLEAU DE BORD More informationQuantity required : 1 |
||||||
|
1 |
00H01613521 - CTO.TABL.PORTAIST.SR X-TRM USA More informationQuantity required : 1 |
||||||
|
1 |
00H01615521 - CTO.TABL.PORTAIST.SD-R 2003 More informationQuantity required : 1 |
||||||
|
1 |
00H01613521 - CTO.TABL.PORTAIST.SR X-TRM USA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/0/3/img/63703.jpg)
2 |
SCREW CRUCIFORME (5X80) OEM PIAGIO COMMON A LA RANGE-00012152000 More informationQuantity required : 1 |
||||||
|
3 |
00454050001-WASHER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/7/2/img/64572.jpg)
4 |
SPACER OEM PIAGGIO COMMON A LA RANGE-00H01600911 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/1/img/63881.jpg)
5 |
RUBBER GUIDE-CABLE/RUBBER MOUNT OEM DERBI 50 SENDA 2000 > 2017/GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX-00D01500021 More informationQuantity required : 1 |
||||||
|
6 |
00G01602581-R-DOOR-LAMPES More informationQuantity required : 1 |
||||||
|
7 |
00G01601581-R-DOOR-LAMPES More informationQuantity required : 1 |
||||||
|
8 |
00H04316651 - FAISCEAU COMPTEUR More informationQuantity required : 1 |
||||||
|
9 |
00H01613021-ENSEMB. CABLE-GAINE COMPTEURKM * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/8/3/img/64583.jpg)
9 |
CABLE/CONTROL/TRANSMISSION DE INSTRUMENT CLUSTER OEM PIAGGIO GILERA 50 RCR 2006 >-00H01616021 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/0/7/img/64007.jpg)
10 |
ENTRAINEUR DE INSTRUMENT CLUSTER (D12) OEM PIAGGIO 50 GILERA SMT 2006 > 2010, RCR 1998 > 2005/DERBI SENDA R 2000 > 2010 00G01606051 More informationQuantity required : 1 |
||||||
|
11 |
00H01610381 - SET SERRURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/9/img/71829.jpg)
12 |
SCREW BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8150169 More informationQuantity required : 1 |
