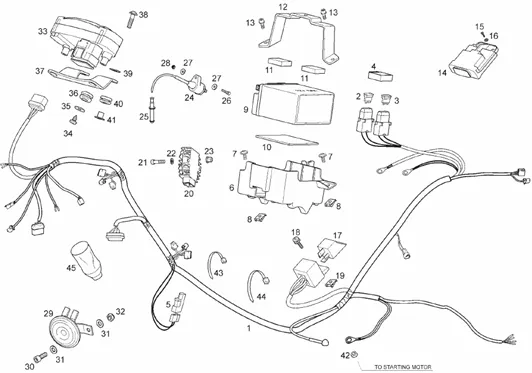

Vehicle Exploded View - DERBI SENDA R-SM 125 Senda R-SM 125 DRD Motard 2013 (EMEA)

	P2R reference	190510
	Maker reference	865976

865976-CTO. INSTALAC. ELECTR. DRD125 09

	P2R reference	189102
	Maker reference	864648

864648-FUSIBLE

	P2R reference	187335
	Maker reference	00G01002911

00G01002911 - FUSIBLE

	P2R reference	70898
	Maker reference	942577

942577-BRACKET RELAIS

	P2R reference	189103
	Maker reference	864565

864565 - DIODE

	P2R reference	190511
	Maker reference	865988

865988-CAJA BATERIA DRD125 09

	P2R reference	71933
	Maker reference	AP8152246

SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	67305
	Maker reference	584662

BATTERY 12V 6 AH YTX7L-BS OEM PIAGGIO COMMON A LA RANGE-584662

	P2R reference	136948
	Maker reference	1R000317

BATTERY 12V 6AH PTX7L-BS OEM PIAGGIO COMMON A LA RANGE (LG113XL70XH132)-1R000317

	P2R reference	71767
	Maker reference	AP8144553

AP8144553-GOMMA INF. APPOGGIO BATTERIA

	P2R reference	71346
	Maker reference	AP8117041

AP8117041-EPONGE ADHESIVE

	P2R reference	190512
	Maker reference	866107

866107 - SOPTE.APOYO SILLIN DRD125 09

	P2R reference	151683
	Maker reference	AP8152278

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278

	P2R reference	189107
	Maker reference	58191R

58191R - UNITE CDI

	P2R reference	71825
	Maker reference	AP8150158

WASHER PLATE (4X9) OEM PIAGGIO COMMON A LA RANGE-AP8150158

	P2R reference	67203
	Maker reference	58115R

RELAIS STARTER MOTOR MAXI SCOOTER OEM PIAGGIO 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250-300 ATLANTIC (12V-80A)-58115R

	P2R reference	71933
	Maker reference	AP8152246

SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	67187
	Maker reference	58090R5
	Replaced by référence 221753

VOLTAGE REGULATOR- "PIAGGIO GENUINE PART" 125 BEVERLY, FLY, LIBERTY, MP3, X7, X8, X9, X-EVO, VESPA GTS, PRIMAVERA, VESPA SPRINT, VESPA LX/APRILIA 125 ATLANTIC, MOJITO, RS4/GILERA 125 NEXUS -58090R5

	P2R reference	71943
	Maker reference	AP8152280

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280

	P2R reference	63786
	Maker reference	004020600015

WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001

	P2R reference	64895
	Maker reference	00H04400711

00H04400711 - ECROU

	P2R reference	67186
	Maker reference	58083R

BOBINE IGNITION MAXI SCOOTER OEM PIAGGIO 125 MP3, FLY, X8, X9-EVO, ZIP, X-EVO/GILERA 125 NEXUS, RUNNER 4T/APRILIA 125 SPORT-CITY-ONE-58083R

	P2R reference	67891
	Maker reference	640637

ANTIPARASITE OEM PIAGGIO APRILIA 125 SCARABEO 2007 > 2010-640637

	P2R reference	69697
	Maker reference	855799

SCREW FLANGE TH (5X0, 8 L. 28) OEM PIAGGIO COMMON A LA RANGE-855799

	P2R reference	64840
	Maker reference	00H03800722

WASHER PLATE (5, 3X15X1) OEM PIAGGIO COMMON A LA RANGE-00H03800722

	P2R reference	71963
	Maker reference	AP8152306

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066

	P2R reference	70804
	Maker reference	890881

890881-HORN

	P2R reference	71948
	Maker reference	AP8152286

SCREW FLANGE TH (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8152286

	P2R reference	63787
	Maker reference	004020800015

WASHER PLATE (D8) MOUNTING ENGINE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA/APRILIA 50 SX, RX, RS-00402080001

	P2R reference	71959
	Maker reference	AP8152300

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300

	P2R reference	190513
	Maker reference	B045235

B045235 - TABLEAU DE BORD

	P2R reference	71843
	Maker reference	AP8150246

SCREW PARKER (4. 8X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8150246

	P2R reference	71806
	Maker reference	AP8150013

WASHER PLATE (5. 5X15X1. 6) OEM PIAGGIO COMMU A LA RANGE-AP8150013

	P2R reference	151771
	Maker reference	00F01500021

00F01500021-PASACABLES TOMA CORRTE.

	P2R reference	190514
	Maker reference	86598700WN6

86598700WN6 - SOPTE.TABLIER NGR.BSLTO.DRD125 09 (C)

	P2R reference	71972
	Maker reference	AP8152338

SCREW FLANGE BTR (5X20) OEM PIAGGIO COMMON A LA RANGE MOTO ET MAXI SCOOTER APRILIA-AP8152338

	P2R reference	64840
	Maker reference	00H03800722

WASHER PLATE (5, 3X15X1) OEM PIAGGIO COMMON A LA RANGE-00H03800722

	P2R reference	63871
	Maker reference	00D01010821

RUBBER MOUNT MOUNTING BODY PANEL REAR OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2018 >/APRILIA 50 SX, RX-00D01010821

	P2R reference	151770
	Maker reference	864461

864461-CASQ. FIJ. LEG SHIELD TER125

	P2R reference	65941
	Maker reference	219277

NUT FLANGE (6) OEM PIAGGIO COMMON A LA RANGE-219277

	P2R reference	63869
	Maker reference	00D00900531

ATTACHE CABLE RISLAN DEMONTABLE OEM PIAGGIO APRILIA RS 50 2006 > 2010, RX-SX 50 2006 > 2017/GILERA SMT 50 1998 > 2017-00D00900531

	P2R reference	63899
	Maker reference	00F00900531

HOSE CLAMP NYLON TYPE RILSAN (290X4. 8) OEM PIAGGIO COMMON A LA RANGE-00F00900531

	P2R reference	64684
	Maker reference	00H02300961

PROTECTOR DE CONNEXIONS ON HARNESS OEM PIAGGIO GILERA 50 SMT, RCR 2011 >/DERBI 50 SENDA 2000 >/APRILIA 50 SX, RX 2011 >-00H02300961
