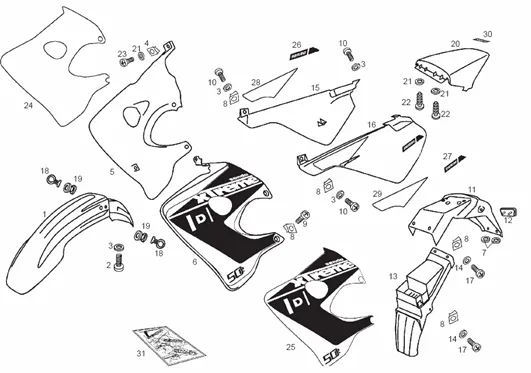

Vehicle Exploded View - DERBI SENDA R 50 Senda R 50 X-Trem E2 2004 (EMEA)

	P2R reference	189685
	Maker reference	00H00711024

00H00711024 - GUARDAB.DLNT.BLANCO S-R/2000

	P2R reference	63704
	Maker reference	000121616005

SCREW CRUCIFORME (6X16) MOUNTING AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX,-00012161600

	P2R reference	63876
	Maker reference	00D01200171

WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	191213
	Maker reference	00H044338015

00H044338015 - OUIE MOTEUR DRT

	P2R reference	191214
	Maker reference	00H044338025

00H044338025 - OUIE MOTEUR DRT

	P2R reference	191215
	Maker reference	00H044338035

00H044338035 - OUIE MOTEUR DRT

	P2R reference	191216
	Maker reference	00H044338825

00H044338825 - OUIE MOTEUR GAU

	P2R reference	191217
	Maker reference	00H04433881

00H04433881 - ADHESIF

	P2R reference	191218
	Maker reference	00H04433883

00H04433883 - ADHESIF

	P2R reference	69844
	Maker reference	861239

WASHER DE HEAD OF FORK D5 INOX OEM PIAGGIO 50 APRILIARS 2006 > 2010/DERBI 50 SENDA 2000 >/GILERA SMT, RCR 2006 >-861239

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	63992
	Maker reference	00G01503701

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX 2006>2010 -00G01503701

	P2R reference	63704
	Maker reference	000121616005

SCREW CRUCIFORME (6X16) MOUNTING AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX,-00012161600

	P2R reference	64299
	Maker reference	00H00712341

MUD FLAP/DOOR PLATE OEM DERBI 50 SENDA 2000 < 2010/GILERA 50 SMT, RCR 2006 > 2010-00H00712341

	P2R reference	64118
	Maker reference	00G04400752

REAR REFLECTOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2009 -00G04400752

	P2R reference	64293
	Maker reference	00H00705121

REAR MUDGUARD INNER OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00H00705121

	P2R reference
	Maker reference	031059

BOULON S03105900

	P2R reference	191219
	Maker reference	00H005456915

00H005456915 - PLAQUE LATERAL DROITE AVEC

	P2R reference	191220
	Maker reference	00H005456935

00H005456935 - PLAQUE LATERAL DROITE AVEC

	P2R reference	191221
	Maker reference	00H005456925

00H005456925 - PLAQUE LATERAL DROITE AVEC

	P2R reference	191222
	Maker reference	00H005457025

00H005457025 - FLANC LAT.G.AVEC DECAL

	P2R reference	191223
	Maker reference	00H005457035

00H005457035 - FLANC LAT.G.AVEC DECAL

	P2R reference	191224
	Maker reference	00H00545701

00H00545701 - FLANC LAT.G.AVEC DECAL

	P2R reference	63704
	Maker reference	000121616005

SCREW CRUCIFORME (6X16) MOUNTING AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX,-00012161600

	P2R reference	64668
	Maker reference	00H02201591

GUIDE CABLE DE FLEXIBLE OF BRAKE FRONT OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2010/APRILIA 50-125 SX, RX-00H02201591

	P2R reference	63881
	Maker reference	00D01500021

RUBBER GUIDE-CABLE/RUBBER MOUNT OEM DERBI 50 SENDA 2000 > 2017/GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX-00D01500021

	P2R reference	188726
	Maker reference	00H00618161

00H00618161 - COUVRE-SELLE

	P2R reference	188526
	Maker reference	00H006181645

00H006181645-DOSSERET SEAT

	P2R reference	69496
	Maker reference	847226

WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226

	P2R reference	63681
	Maker reference	000110514015

SCREW AUTOTARAUDEUSE (5X14) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-00011051401

	P2R reference	63703
	Maker reference	000121520005

SCREW CRUCIFORME (5X80) OEM PIAGIO COMMON A LA RANGE-00012152000

	P2R reference	191225
	Maker reference	00H04922561

00H04922561 - ADHESIF

	P2R reference	191226
	Maker reference	00H04922562

00H04922562 - ADHESIF

	P2R reference	191227
	Maker reference	00H04922563

00H04922563 - ADHESIF

	P2R reference	191228
	Maker reference	00H04922571

00H04922571 - ADHESIF

	P2R reference	191229
	Maker reference	00H04922572

00H04922572 - ADHESIF

	P2R reference	191230
	Maker reference	00H04922573

00H04922573 - ADHESIF

	P2R reference	188735
	Maker reference	00H00521651

00H00521651 - DECAL FLANC D.

	P2R reference	188736
	Maker reference	00H00521652

00H00521652 - DECAL FLANC D.

	P2R reference	191173
	Maker reference	00H00521653

00H00521653 - DECAL FLANC D.

	P2R reference	188738
	Maker reference	00H00521641

00H00521641 - DECAL LAT.

	P2R reference	188739
	Maker reference	00H00521642

00H00521642 - DECAL LAT.

	P2R reference	191174
	Maker reference	00H00521643

00H00521643 - DECAL LAT.

	P2R reference	191231
	Maker reference	00H00521221

00H00521221 - ADHESIF

	P2R reference	191232
	Maker reference	00H00521281

00H00521281 - ADHESIF

	P2R reference	188741
	Maker reference	00H00608521

00H00608521-ADHESIF DERBI

	P2R reference	191233
	Maker reference	00H05154651

00H05154651 - JEU ADHESIF

	P2R reference	191234
	Maker reference	00H05154652

00H05154652 - JEU ADHESIF

	P2R reference	191235
	Maker reference	00H05154655

00H05154655 - JEU ADHESIF
