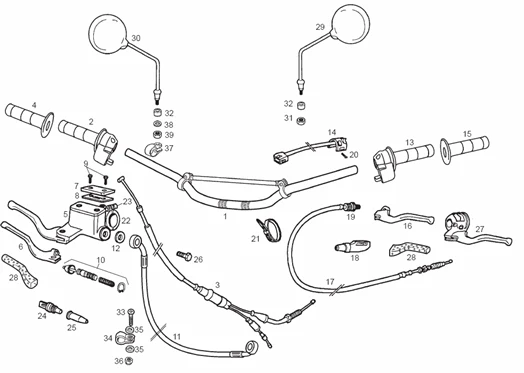

Vehicle Exploded View - DERBI SENDA R 50 Senda R 50 Drd 2a edicion 2003 (EMEA)

	P2R reference	187975
	Maker reference	00H00906013

00H00906013 - GUIDON

	P2R reference	64654
	Maker reference	00H02101621

THROTTLE GRIP 50 A BOX OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA 50 RX, SX 2006 >-00H02101621

	P2R reference	64350
	Maker reference	00H00916171

CABLE/CONTROL/TRANSMISSION DE THROTTLE OEM DERBI 50 SENDA 2005 </GILERA 50 SMT, RCR 1999 > 2005-00H00916171

	P2R reference	64359
	Maker reference	00H00930091

REVETEMENT DE GRIP RIGHT OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00H00930091

	P2R reference	187668
	Maker reference	00H02104081

00H02104081 - R-ENSEM.KIT REPAR. POMPE SE

	P2R reference	187669
	Maker reference	00H02104082

00H02104082 - R-CTO.BOMBA FR.DT.SD DRD 03

	P2R reference	187670
	Maker reference	00H00905201

00H00905201 - R-CTO.MANETA FR.DT.SD R DRD

	P2R reference	187671
	Maker reference	00H00906201

00H00906201 - R-CTO.MANETA FR.DT.SM DRD

	P2R reference	187672
	Maker reference	00H02101191

00H02101191-R-COUV. RESER. LIQ. BRAKE AVAN

	P2R reference	64651
	Maker reference	00H02100861

FRONT MASTER CYLINDER GASKET "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H02100861

	P2R reference	187530
	Maker reference	00D02120811

00D02120811 - R-ENSEM.KIT REPAR. POMPE SE

	P2R reference	190787
	Maker reference	00H00916751

00H00916751 - FLEXIBLE DE FREIN AVANT

	P2R reference	70303
	Maker reference	867238

GASKET/WASHER HOSE OF BRAKE OEM PIAGGIO 50 DERBI 50 SENDA 2000 >/APRILIA RX, SX, RS, TUONO/GILERA 50 SMT, RCR-867238

	P2R reference	64384
	Maker reference	00H01007141

00H01007141 - INVERSEUR AVEC CABLE

	P2R reference	64690
	Maker reference	00H02304381

SWITCH "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -00H02304381-

	P2R reference	64358
	Maker reference	00H00930071

REVETEMENT DE GRIP LEFT OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00H00930071

	P2R reference	63901
	Maker reference	00F00910291

LEVER D'EMBRAYAGE 50 A BOX OEM PIAGGIO 50 GILERA SMT, RCR 2003 > 2010/DERBI SENDA 2003 > 2010 (BLACK)-00F00910291

	P2R reference	64335
	Maker reference	00H00903291

LEVER D'EMBRAYAGE 50 A BOX OEM DERBI 50 SENDA 2003 >/GILERA 50 SMT 2011 >/APRILIA 50 SX, RX 2006 > 170 MM ALU POLI-00H00903291

	P2R reference	187532
	Maker reference	00H00902301

00H00902301 - GAINE ET CABLE DIEMBRAYAGE

	P2R reference	64653
	Maker reference	00H02101011

PROTEGE LEVER CLUTCH OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX-00H02101011

	P2R reference	63902
	Maker reference	00F00920551

HOLLOW TENSIONER SCREW OF CABLE CLUTCH OEM 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2003 >/APRILIA RX, SX 2006-2013 (M6 L27MM)-00F00920551

	P2R reference	63581
	Maker reference	000000125085

00000012508 - VIS

	P2R reference	63866
	Maker reference	00A00900531

00A00900531 - COLLIER

	P2R reference	63886
	Maker reference	00D02100901

CAVALIER/HALF CLAMP DE BRAKE MASTER CYLINDER FRONT OEM DERBI 50 SENDA 2000 > 2010 GILERA 50 SMT, RCR 20006 > 2010-00D02100901

	P2R reference	63571
	Maker reference	000000046205

00000004620 - VIS T. CREUSE 6M100X20.

	P2R reference	63870
	Maker reference	00D01000701

INTERRUPTEUR DE STOP OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX 2006, RS 2006 > 2010-00D01000701

	P2R reference	63654
	Maker reference	000050107605

CAPUCHON DE CONTACTEUR DE STOP OEM DERBI 50 SENDA 2000 > 2017/GILERA 50 SMT, RX/SX-00005010760

	P2R reference	69958
	Maker reference	862494

862494 - R-TORNILLO RACORD HIDRAULICO

	P2R reference	64660
	Maker reference	00H02105611

GRIP D'EMBRAYAGE COMPLETE LEFT OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2003 < 2010-00H02105611

	P2R reference	64661
	Maker reference	00H02105612

GRIP CLUTCH OEM DERBI 50 SENDA DRD 2003 > 2008/APRILIA 50 RX, SX 2006 > 2010-00H02105612

	P2R reference	187674
	Maker reference	00H00900721

00H00900721 - PROTEGE MANETE

	P2R reference	64679
	Maker reference	00H02213671

LEFT MIRROR ROND OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2003 >-00H02213671

	P2R reference	64926
	Maker reference	00H04608921

MIRROR- RIGHT "ROUND SHAPED" "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2003>2009 -00H04608921

	P2R reference	63591
	Maker reference	000000230805

00000023080-NUT INDESSERABLE 8M125

	P2R reference	63943
	Maker reference	00G00800261

00G00800261-SPACER

	P2R reference	63703
	Maker reference	000121520005

SCREW CRUCIFORME (5X80) OEM PIAGIO COMMON A LA RANGE-00012152000

	P2R reference	70054
	Maker reference	864454

GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE 50 A BOX-864454

	P2R reference	69496
	Maker reference	847226

WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226

	P2R reference	64665
	Maker reference	00H02200681

00H02200681 - COLLIER

	P2R reference	63596
	Maker reference	000000310805

WASHER PLATE (8. 4X15. 8X1. 5) OEM PIAGGIO COMMON A LA RANGE-00000031080

	P2R reference	63587
	Maker reference	000000210805

NUT (M8) OEM PIAGGIO COMMON A LA RANGE-00000021080
