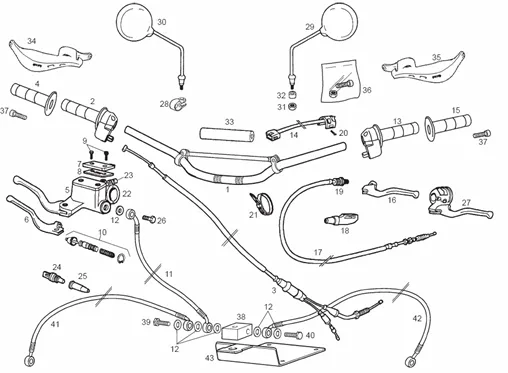

Vehicle Exploded View - DERBI SENDA R 50 Senda R 50 Black Devil 2ª edicion 2003 (EMEA)

	P2R reference	190783
	Maker reference	00H00916011

00H00916011 - GUIDON

	P2R reference	187975
	Maker reference	00H00906013

00H00906013 - GUIDON

	P2R reference	187824
	Maker reference	00H02103621

00H02103621 - POIGNEE DE GAZ COMPLETE

	P2R reference	188043
	Maker reference	00H00920171

00H00920171-GAINE ET CABLE DE THROTTLE

	P2R reference	190784
	Maker reference	00H00902091

00H00902091 - CAOUT. DE PIGNEE GAZ

	P2R reference	190785
	Maker reference	00H02105081

00H02105081 - R-ENSEM. KIT REPAR. POMPE SE

	P2R reference	64659
	Maker reference	00H02105082

00H02105082 - R-ENSEM. KIT REPAR. POMPE SE

	P2R reference	188046
	Maker reference	00H00906202

00H00906202 - MANETE DU FREIN AVANT

	P2R reference	64341
	Maker reference	00H00906203

FRONT BRAKE LEVER- "PIAGGIO GENUINE PART" APRILIA 50 SX, RX 2006>2010 -00H00906203-

	P2R reference	187672
	Maker reference	00H02101191

00H02101191-R-COUV. RESER. LIQ. BRAKE AVAN

	P2R reference	64651
	Maker reference	00H02100861

FRONT MASTER CYLINDER GASKET "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H02100861

	P2R reference	187530
	Maker reference	00D02120811

00D02120811 - R-ENSEM.KIT REPAR. POMPE SE

	P2R reference	190786
	Maker reference	00H00921751

00H00921751 - FLEXIBLE DE FREIN AVANT

	P2R reference	190787
	Maker reference	00H00916751

00H00916751 - FLEXIBLE DE FREIN AVANT

	P2R reference	70303
	Maker reference	867238

GASKET/WASHER HOSE OF BRAKE OEM PIAGGIO 50 DERBI 50 SENDA 2000 >/APRILIA RX, SX, RS, TUONO/GILERA 50 SMT, RCR-867238

	P2R reference	64384
	Maker reference	00H01007141

00H01007141 - INVERSEUR AVEC CABLE

	P2R reference	187833
	Maker reference	00H02305171

00H02305171 - INVERSEUR AVEC CABLE

	P2R reference	64358
	Maker reference	00H00930071

REVETEMENT DE GRIP LEFT OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00H00930071

	P2R reference	188048
	Maker reference	00H00903292

00H00903292-LEVER CLUTCH

	P2R reference	190788
	Maker reference	00H00903293

00H00903293 - LEVIER EMBRAYAGE

	P2R reference	188049
	Maker reference	00H00908301

00H00908301-GAINE ET CABLE DIEMBRAYAGE

	P2R reference	64653
	Maker reference	00H02101011

PROTEGE LEVER CLUTCH OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX-00H02101011

	P2R reference	63902
	Maker reference	00F00920551

HOLLOW TENSIONER SCREW OF CABLE CLUTCH OEM 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2003 >/APRILIA RX, SX 2006-2013 (M6 L27MM)-00F00920551

	P2R reference	63581
	Maker reference	000000125085

00000012508 - VIS

	P2R reference	63866
	Maker reference	00A00900531

00A00900531 - COLLIER

	P2R reference	63886
	Maker reference	00D02100901

CAVALIER/HALF CLAMP DE BRAKE MASTER CYLINDER FRONT OEM DERBI 50 SENDA 2000 > 2010 GILERA 50 SMT, RCR 20006 > 2010-00D02100901

	P2R reference	63571
	Maker reference	000000046205

00000004620 - VIS T. CREUSE 6M100X20.

	P2R reference	63870
	Maker reference	00D01000701

INTERRUPTEUR DE STOP OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX 2006, RS 2006 > 2010-00D01000701

	P2R reference	63654
	Maker reference	000050107605

CAPUCHON DE CONTACTEUR DE STOP OEM DERBI 50 SENDA 2000 > 2017/GILERA 50 SMT, RX/SX-00005010760

	P2R reference	69958
	Maker reference	862494

862494 - R-TORNILLO RACORD HIDRAULICO

	P2R reference	188051
	Maker reference	00H02106612

00H02106612 - ENS. PORTE-MANETTE GAUCHE

	P2R reference	64665
	Maker reference	00H02200681

00H02200681 - COLLIER

	P2R reference	188047
	Maker reference	00H04603921

00H04603921 - ENSEMBLE MIRROIR RETROVISEUR

	P2R reference	64679
	Maker reference	00H02213671

LEFT MIRROR ROND OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2003 >-00H02213671

	P2R reference	64926
	Maker reference	00H04608921

MIRROR- RIGHT "ROUND SHAPED" "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2003>2009 -00H04608921

	P2R reference	63591
	Maker reference	000000230805

00000023080-NUT INDESSERABLE 8M125

	P2R reference	63943
	Maker reference	00G00800261

00G00800261-SPACER

	P2R reference	190789
	Maker reference	00H00901501

00H00901501 - PROTEGE GUIDON

	P2R reference	65921
	Maker reference	20H02102011

20H02102011-PROTECTOR DRT.

	P2R reference	65922
	Maker reference	20H02102831

20H02102831-PROTECTOR GAU.

	P2R reference	188052
	Maker reference	00H00900511

00H00900511 - KIT VIS

	P2R reference	63622
	Maker reference	000020855315

00002085531-TORN. C/ALL. 8M125X55 DIN912 12. 9 DAC

	P2R reference	190790
	Maker reference	00H02100021

00H02100021 - VIS

	P2R reference	187675
	Maker reference	00H00900281

00H00900281 - DISTRIBUTEUR

	P2R reference	187676
	Maker reference	00H00900251

00H00900251 - VIS

	P2R reference	187677
	Maker reference	00H00901261

SCREW FLEXIBLE OF BRAKE OEM PIAGGIO 50 DRD 2005 < 2011-00H00901261

	P2R reference	187678
	Maker reference	00H00900741

00H00900741 - FLEXIBLE DE FREIN AVANT DROITE

	P2R reference	187679
	Maker reference	00H00900771

00H00900771 - FLEXIBLE DE FREIN AVANT GAUCHE

	P2R reference	187680
	Maker reference	00H02100121

00H02100121 - PLAQUE SUP. DISTRIBUTEUR
