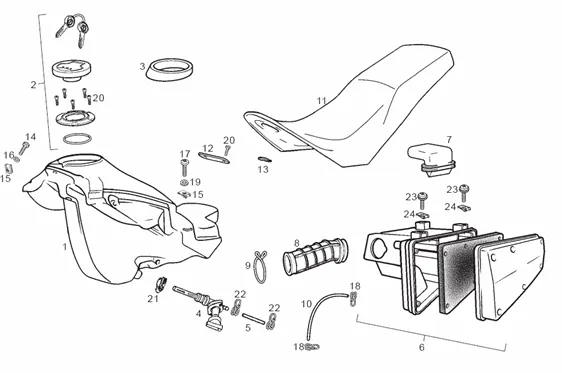

Tables : 4 RÉSERVOIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1068/SENDA_R_125cc_4T_2004-2007_4.png)
1 |
00H00408011 - RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
|
2 |
00H00400131-ENS. CAP RESERV. FUEL V. B More informationQuantity required : 1 |
||||||
|
3 |
865968-ADORNO TAPON DPSTO. GASOL. DRD125 09 More informationQuantity required : 1 |
||||||
|
4 |
00H00404181 - ENSEMBLE ROBINET ESSENCE More informationQuantity required : 1 |
||||||
|
5 |
00F00403321 - TUBE ESSENCE More informationQuantity required : 1 |
||||||
|
6 |
00H01805541 - ENSEMBLE BOITE FILTRE More informationQuantity required : 1 |
||||||
|
7 |
00H03204491 - TUBE DIASPIRATION More informationQuantity required : 1 |
||||||
|
8 |
00H03208261 - TUYAU DIADMISSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/8/0/img/64080.jpg)
9 |
CLAMP HOSE DE AIR FILTER OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA 50 SX, RX 2006 >-00G03204272 More informationQuantity required : 1 |
||||||
|
10 |
00H03701461 - TUYAU More informationQuantity required : 1 |
||||||
|
11 |
8633920001 - SELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/7/8/5/img/187785.jpg)
12 |
LOCK DE SEAT OEM DERBI 50 SENDA R, SM DRD PRO 2005 > 2011-00H06101261 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/8/2/img/64282.jpg)
13 |
LEVER LATCH HATCH A FUEL OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/DERBI 50 SENDA 2000 > 2010/APRILIA 50 SX, RX 2006 > 2017-00H00604141 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/9/2/img/63992.jpg)
14 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX 2006>2010 -00G01503701 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
15 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462 More informationQuantity required : 1 |
||||||
|
16 |
00H00500211 - RONDELLE More informationQuantity required : 1 |
||||||
|
17 |
00012151500-SCREW A HEAD RONDE A FENTES C More informationQuantity required : 1 |
||||||
|
18 |
00H06400291 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
19 |
WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226 More informationQuantity required : 1 |
||||||
|
20 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/3/2/img/63932.jpg)
21 |
CLAMP ROBINET FUEL OEM DERBI 50 SENDA 2000 >-00G00400501 More informationQuantity required : 1 |
||||||
|
22 |
00A00410501-CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/2/3/img/63923.jpg)
23 |
SCREW CRUCIFORME (6X16) MAINTIEN PANEL DE EDGE OU COQUE REAR OEM PIAGGIO APRILIA 50 RS 2006 > 2010-00F05900041 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
24 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
