Vehicle Exploded View - DERBI SENDA HYP 50 SENDA HYP DRD EVO LTD EDITION 2008 E2
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

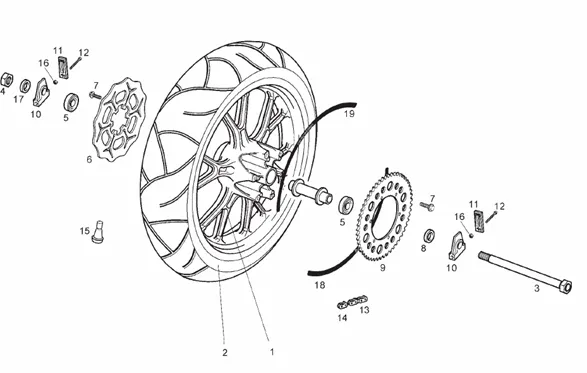

Tables : 9 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1078/SENDA_HYP_DRD_EVO_LTD_EDITION_2008_E2_9.png)
1 |
865575 - CTO.LLANTA TRAS.DRD EVO LTD.EDIT More informationQuantity required : 1 |
||||||
|
2 |
899860-TYRE AR SAVATECH 130/70X17 " More informationQuantity required : 1 |
||||||
|
3 |
00H01308201 - AXE ROUE More informationQuantity required : 1 |
||||||
|
4 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/8/1/img/67481.jpg)
5 |
BEARING (15X35X11) REAR WHEEL OEM PIAGGIO 50 GILERA SMT 2011 >/DERBI SENDA 2003 >-601345 More informationQuantity required : 1 |
||||||
|
6 |
867116-KIT BRAKE DISC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/5/9/img/151759.jpg)
7 |
SCREW FLANGE TH (6X20) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-2B004560 More informationQuantity required : 1 |
||||||
|
8 |
865587-CASQ. SEPARAD. LADO PLATO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/9/2/5/img/69925.jpg)
9 |
COURONNE 53 TEETH OEM PIAGGIO 50 GILERA SMT 2011 >/DERBI SENDA 2006 > 2015/APRILIA RS4 2011 >, RX 2011 >, SX 2011 >-86182R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/9/3/img/64493.jpg)
10 |
COULISSE DE TENDEUR DE REAR WHEEL OEM PIAGGIO APRILIA 50 RS 2006 > 2010-00H01306811 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/8/8/img/64488.jpg)
11 |
COVER DE TENDEUR DE REAR WHEEL OEM DERBI 50 SENDA DRD 2005 > 2011/APRILIA 50 RS 2006 > 2010-00H01306171 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/7/2/img/64472.jpg)
12 |
SCREW BTR (6X60) OEM PIAGGIO COMMON A LA RANGE-00H01302491 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/5/6/img/72856.jpg)
13 |
CHAIN 420/130M OEM PIAGGIO 50 APRILIA RS4 2011 >, RX 2006 >, SX 2006 >/DERBI SENDA/GILERA 50 SMT 2006 >, RCR 2006 >-B046219 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/3/3/img/64533.jpg)
14 |
CLIP QUICK FITTING CHAIN IRIS 130 MAILLONS OEM PIAGGIO-00H01501212 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/4/img/66094.jpg)
15 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-270991 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
16 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/3/0/img/63730.jpg)
17 |
WASHER WHEEL (DIAMETRE 15) OEM PIAGGIO GILERA 50 50 SMT, RCR/DERBI 50 SENDA/APRILIA RS, RX, SX-00032015000 More informationQuantity required : 1 |
||||||
|
18 |
8655800001 - CALCA LLANTA RACING ROJ.EVO LTD.EDIT More informationQuantity required : 1 |
||||||
|
19 |
8655800002 - CALCA LLANTA COMPETITION ROJ.EVO LTD.ED More informationQuantity required : 1 |
