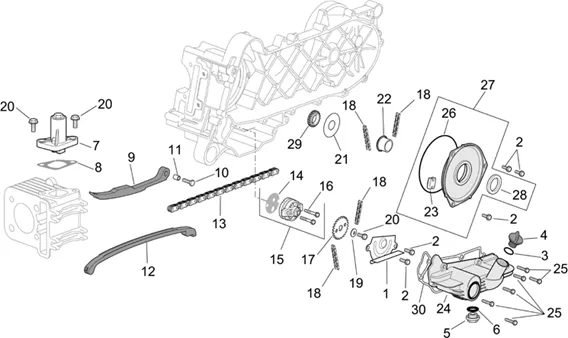

Vehicle Exploded View - APRILIA SCARABEO 4T 50 2V E2 2006-2009

	P2R reference	70984
	Maker reference	969625

969625-PROTECTOR OIL

	P2R reference	66655
	Maker reference	484123

SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-484123

	P2R reference	158280
	Maker reference	479986

O-RING OEM PIAGGIO COMMON A LA RANGE-1A009397

	P2R reference	158280
	Maker reference	1A009397

O-RING OEM PIAGGIO COMMON A LA RANGE-1A009397

	P2R reference	69325
	Maker reference	844721

CAP OIL SCOOT OEM PIAGGIO 50 ZIP 2000 4T, FLY 2006 > 4T, LIBERTY 2006 > 4T, VESPA LX 2006 > 4T, PRIMAVERA 2013 > 4T, SPRINT 2014 > 4T/APRILIA 50 SCARABEO 2002 > 4T, SPORT-CITY 2008 > 4T-844721

	P2R reference	66500
	Maker reference	436692

CAP DE VIDANGE OIL OEM PIAGGIO COMMON A LA RANGE 1998 > 2005-436692

	P2R reference	66191
	Maker reference	288474

GASKET OF CREPINE D'HUILE OEM PIAGGIO 125-250-300 X7, X8, X-EVO, X9, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA 50-125 SR-MOTARD, SPORT-CITY/GILERA 500 FUOCO-288474

	P2R reference	204079
	Maker reference	289919

TENDEUR DE CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 A 500 CC/MOTOS APRILIA-82650R

	P2R reference	204079
	Maker reference	82650R

TENDEUR DE CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 A 500 CC/MOTOS APRILIA-82650R

	P2R reference	69546
	Maker reference	847928

GASKET OF TENDEUR CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-847928

	P2R reference	68764
	Maker reference	828561

GLISSIERE TENDEUR DE CHAIN OEM PIAGGIO 50-100 COMMON A LA RANGE-828561

	P2R reference	65642
	Maker reference	0310915

SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091

	P2R reference	66550
	Maker reference	478247
	Replaced by référence 187400

478247 - ENTRETOISE

	P2R reference	70995
	Maker reference	969877

PATIN DE CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 4T-969877

	P2R reference	70967
	Maker reference	96933R

CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T-96933R

	P2R reference	66504
	Maker reference	436751

GASKET OF CASING OIL PUMP OEM PIAGGIO 50 4T ZIP, LIBERTY, FLY, PRIMAVERA, SPRINT-436751

	P2R reference
	Maker reference	969319

POMPE HUILE

	P2R reference	66438
	Maker reference	433477

SCREW FLANGE TH (5X30) OEM PIAGGIO COMMON A LA RANGE-433477

	P2R reference	66182
	Maker reference	287913

SPROCKET OIL PUMP OEM PIAGGIO 50-125-300 COMMON A LA RANGE-287913

	P2R reference	66454
	Maker reference	434447

CHAIN DE CONTROL OIL PUMP OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T-434447

	P2R reference	66501
	Maker reference	436695

WASHER SPRING (6. 4X20X2) OEM PIAGGIO COMMON A LA RANGE-436695

	P2R reference	72706
	Maker reference	B016426

SCREW FLANGE TH (6X14) OEM PIAGGIO COMMON A LA RANGE-B016426

	P2R reference	66380
	Maker reference	430535

WASHER AJUSTEMENT OEM PIAGGIO COMMON A LA RANGE-430535

	P2R reference	69068
	Maker reference	833495

SPROCKET OF PUMP A OIL OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 4T-833495

	P2R reference	66447
	Maker reference	434345

BUFFER DE CHAIN OF PUMP A OIL PIAGGIO COMMON A LA RANGE-434345

	P2R reference	69331
	Maker reference	844871

CASING OIL LATERAL OEM PIAGGIO 50 FLY 4T 2005 >, VESPA LX 4T 2006 >, PRIMAVERA-SPRINT 4T 2013 >/APRILIA 50 SR MOTARD 4T 2013 >-844871

	P2R reference	72720
	Maker reference	414837

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

	P2R reference	72720
	Maker reference	B016774

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

	P2R reference	69332
	Maker reference	844888

GASKET OF SPROCKET ENTRAINEMENT OF PUMP A OIL OEM PIAGGIO 50 FLY 4T, LIBERTY 4T, ZIP 4T, VESPA LX 4T, VESPA-S 4T-844888

	P2R reference	66555
	Maker reference	478324

COVER TIMING (LIVRE WITH GASKET) OEM PIAGGIO 50 FLY 4T, LIBERTY 4T, VESPA PRIMAVERA 4T, VESPA LX 4T-478324

	P2R reference	66184
	Maker reference	2879633

OIL SEAL (22X32X7) VILEBREQUIN COTE VARIATOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T-2879633

	P2R reference	174697
	Maker reference	969747

SPROCKET TIMING OEM PIAGGIO 50 FLY, LIBERTY, TYPHOON, ZIP, PRIMAVERA-9697476

	P2R reference	174697
	Maker reference	9697476

SPROCKET TIMING OEM PIAGGIO 50 FLY, LIBERTY, TYPHOON, ZIP, PRIMAVERA-9697476

	P2R reference	70932
	Maker reference	969132

GASKET OF CASING OIL LATERAL OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T-969132
