Vehicle Exploded View - APRILIA SCARABEO 2T 50 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

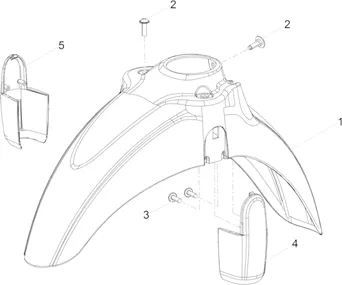

Chassis : 28.10 CARROSSERIE AV. VI - GARDE-BOUE AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/599/Scarabeo_50_2T_2014_28.10.PNG)
1 |
5A000111000XA6 - GARDE-BOUE AV More informationQuantity required : 1 |
|||||||||
|
1 |
5A000111000XB66 - GARDE-BOUE AVANT BLANC More informationQuantity required : 1 |
|||||||||
|
1 |
5A000111000XN1 - GARDE-BOUE AV NOIR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/8/3/1/7/img/38317.jpg)
1 |
5A000111000XP5 - GARDE-BOUE AV More informationQuantity required : 1 |
|||||||||
|
2 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
2 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
3 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 4 |
|||||||||
|
4 |
1B001612000EU - PROTEGE-TIGE G More informationQuantity required : 1 |
|||||||||
|
5 |
1B001613000EU - PROTEGE-TIGE DROIT More informationQuantity required : 1 |
|||||||||
