Vehicle Exploded View - APRILIA SCARABEO 4T 100 E3 2010-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

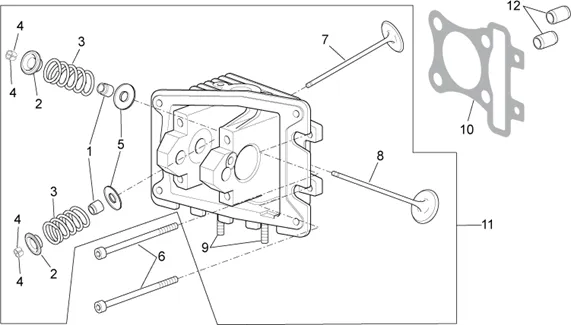

Moteur : 29.33 CULASSE - SOUPAPES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/617/Scarabeo_100_4T_E3_2010-2012_29.33.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/9/3/img/66493.jpg)
1 |
GASKET/BUSH OF VALVE OEM PIAGGIO COMMON A LA RANGE-436438 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/5/2/img/70952.jpg)
2 |
WASHER DE SPRING CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE-969267 More informationQuantity required : 2 |
||||||
3 |
969272-SPRING More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/5/2/img/66152.jpg)
4 |
HALF-LUNE/CLAVETTE DE VALVE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-285846 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/2/2/img/66222.jpg)
5 |
COUPELLE INFERIEURE VALVE OEM PIAGGIO 50 4T ZIP, FLY, LIBERTY 2016 <-289420 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/3/7/img/66337.jpg)
6 |
SCREW BTR (6X80) OEM PIAGGIO COMMON A LA RANGE-319242 More informationQuantity required : 2 |
||||||
|
7 |
VALVE INTAKE OEM PIAGGIO FLY 100 2006 > 2014, ZIP 100 2006 > 2018, LIBERTY 100 2011 > 2014-969752 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/9/1/img/70991.jpg)
8 |
VALVE EXHAUST OEM PIAGGIO 100 SCARABEO 2001 > 2014-969753 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/8/1/img/65981.jpg)
9 |
STUD EXHAUST (6X30) OEM PIAGGIO 50-125 FLY, LIBERTY, VESPA LX, VESPA SPRINT, 50 NRG, TYPHOON, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR, SPORT CITY ONE-239397 More informationQuantity required : 2 |
||||||
|
10 |
832628-CYLINDER HEAD GASKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/0/8/img/69008.jpg)
10 |
CYLINDER HEAD GASKET OEM PIAGGIO 100 SCARABEO 4T 2001 >-832629 More informationQuantity required : 1 |
||||||
|
11 |
845810-CYLINDER HEAD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/2/img/66142.jpg)
12 |
PION DE CENTRAGE (7, 5X12) OEM PIAGGIO COMMON A LA RANGE-277916 More informationQuantity required : 2 |
