Vehicle Exploded View - APRILIA SCARABEO 4T 100 E3 2006-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

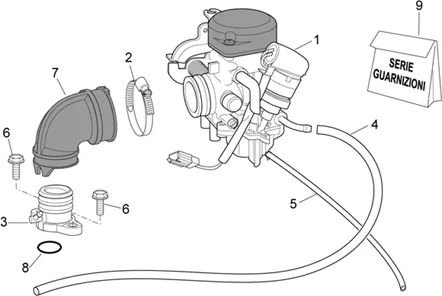

Moteur : 29.18 CARBURATEUR I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/620/Scarabeo_100_4T_E3_2006-2009_29.18.PNG)
1 |
CM141909 - CARBURATEUR More informationQuantity required : 1 |
||||||
|
1 |
CM141913 - CARBURATEUR More informationQuantity required : 1 |
||||||
|
2 |
969628 - BANDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/9/3/img/70993.jpg)
3 |
FITTING INTAKE OEM PIAGGIO 100 ZIP, LIBERTY, FLY 4T/APRILIA 100 SCARABEO-969761 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/6/8/img/70868.jpg)
4 |
HOSE/FUEL HOSE (5. 5X10) OEM APRILIA-MOTO GUZZI COMMON A LA RANGE-896544 More informationQuantity required : 1 |
||||||
|
5 |
896570-HOSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
6 |
SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/9/2/img/70992.jpg)
7 |
FITTING/MANIFOLD INTAKE OEM PIAGGIO 100 FLY, LIBERTY, ZI (APAC)-969757 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/6/2/img/70962.jpg)
8 |
O-RING OEM PIAGGIO COMMON A LA RANGE-969323 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/0/9/img/66909.jpg)
9 |
GASKET OF CUVE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50-100 CC 4T-497038 More informationQuantity required : 1 |
