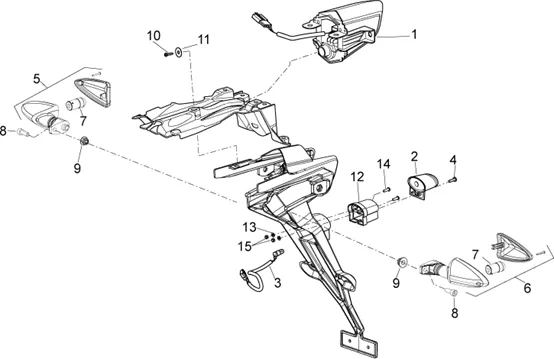

Chassis : 28.26 FEUX ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/647/RXV_550_Street_Legal_2009-2011_28.26.PNG)
1 |
AP9100523 - ASSIEME FANALE POST.CON CABL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/4/2/img/69642.jpg)
2 |
ECLAIRAGE DE PLATE D'IMMATRICULATION OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-85256R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/5/2/4/img/57524.jpg)
3 |
WIRING LUMIERE PLATE OEM APRILIA 50 SR H2O 2018 >-AP8224655 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
4 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 1 |
||||||
|
5 |
855140 - ADAPTATUR More informationQuantity required : 1 |
||||||
|
6 |
855139-ADAPTATUR More informationQuantity required : 1 |
||||||
|
7 |
AMPOULE/LAMPE 12V 10W RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-AP8127489 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/3/img/71913.jpg)
8 |
SCREW BTR HEAD BOMBEE (6X15) OEM PIAGGIO COMMON A LA RANGE-AP8152108 More informationQuantity required : 2 |
||||||
|
9 |
AP9100434-DADO AUTOBL. FLANGIATO M6X1 More informationQuantity required : 2 |
||||||
|
10 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/6/img/71826.jpg)
11 |
WASHER 4X16 OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150159 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/5/3/0/img/96530.jpg)
12 |
855078-BRACKET ECLAIRAGE PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/5/img/71805.jpg)
13 |
WASHER PLATE (5. 3X10X1) OEM PIAGGIO COMMON A LA RANGE-AP8150012 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/5/img/71935.jpg)
14 |
SCREW BTR HEAD BOMBEE (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152268 More informationQuantity required : 2 |
||||||
|
15 |
AP8150114-NUT EPAULE DIAM 6 More informationQuantity required : 2 |
