Vehicle Exploded View - APRILIA RXV 550 Pikes Peak 2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

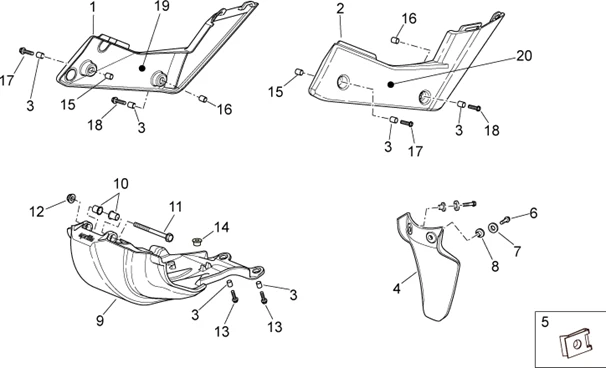

Chassis : 28.14 CARROSSERIE CENTRALE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/630/RXV_550_Pikes_Peak_2009_28.14.PNG)
1 |
AP8184605 - FLANC More informationQuantity required : 1 |
||||||
|
2 |
AP8184606 - FLANC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/5/9/7/img/72597.jpg)
3 |
WASHER EN T (10X16X3, 5) FOR SCREW OF 6 OEM PIAGGIO COMMON A LA RANGE-AP9100053 More informationQuantity required : 6 |
||||||
|
4 |
AP9100504-PROTEZIONE AMMORTIZZ. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
5 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/0/img/71940.jpg)
6 |
SCREW FLANGE TH (5X20) OEM PIAGGIO COMMON A LA RANGE-AP8152274 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/2/img/71742.jpg)
7 |
WASHER THERMOFUGE D6 SHEET METAL EXHAUST OEM PIAGGIO 500 MP3, BEVERLY/APRILIA 500 SCARABEO, ATLANTIC-AP8144064 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/3/img/71483.jpg)
8 |
AP8121736-" BUSH EN " " T " " " More informationQuantity required : 2 |
||||||
|
9 |
AP9100347 - RIPARO MOTORE More informationQuantity required : 1 |
||||||
|
10 |
AP9100778-BUSSOLA FISS. PROTEZIONE MOTORE More informationQuantity required : 2 |
||||||
|
11 |
AP9100661-SCREW TEF M6X95 More informationQuantity required : 1 |
||||||
|
12 |
AP9100434-DADO AUTOBL. FLANGIATO M6X1 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
13 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/1/img/71151.jpg)
14 |
RUBBER MOUNT/RUBBER EN T OEM PIAGGIO COMMON A LA RANGE-AP8101372 More informationQuantity required : 1 |
||||||
|
15 |
CM235801 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
16 |
CM235802-SPACER More informationQuantity required : 2 |
||||||
|
17 |
CM236001-SCREW M6X30 More informationQuantity required : 2 |
||||||
|
18 |
CM236002-SCREW M6X25 More informationQuantity required : 2 |
||||||
|
19 |
894640-DECAL More informationQuantity required : 1 |
||||||
|
19 |
894655-DECAL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/0/0/img/97000.jpg)
20 |
894641-DECAL More informationQuantity required : 1 |
||||||
|
20 |
894656 - DECALCO More informationQuantity required : 1 |
