Vehicle Exploded View - APRILIA RXV 550 2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

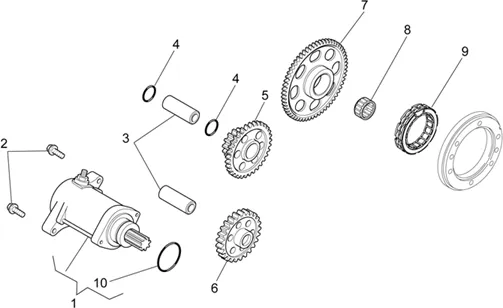

Moteur : 29.53 DÉMARREUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/640/RXV_550_2008_29.53.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/1/6/img/72616.jpg)
1 |
ELECTRIC STARTER "PIAGGIO GENUINE PART" APRILIA 450-550 SXV, RXV -AP9150090- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
2 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152281 More informationQuantity required : 2 |
||||||
3 |
AP9150209-PERNO More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/8/3/2/img/97832.jpg)
4 |
AP9150446-O-RING 10. 5X1 More informationQuantity required : 2 |
||||||
|
5 |
853919-GEAR More informationQuantity required : 1 |
||||||
|
6 |
849802 - 2° STARTER REDUCTION More informationQuantity required : 1 |
||||||
|
7 |
STARTER FREEWHEEL "PIAGGIO GENUINE PART" APRILIA 450-550 SXV, RXV -849803- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/7/4/8/7/img/37487.jpg)
8 |
ROLLER CAGE (26X30X17) STARTER MOTOR OEM APRILIA 450-550 RXV, SXV-85109R More informationQuantity required : 2 |
||||||
|
9 |
AP9150208 - RUOTA LIBERA More informationQuantity required : 1 |
||||||
|
10 |
AP9150500-O-RING 25X2. 5 More informationQuantity required : 1 |
