Vehicle Exploded View - APRILIA RXV 450 2009-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

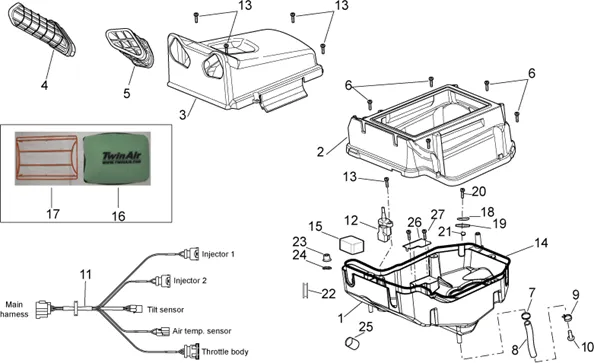

Chassis : 28.19 CORPS FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/646/RXV_450_2009-2011_28.19.PNG)
1 |
855662-BASE BODY FILTER More informationQuantity required : 1 |
||||||
|
1 |
855664 - BASE CORPS FILTRE More informationQuantity required : 1 |
||||||
|
2 |
853695-BO? TIER DU FILTER More informationQuantity required : 1 |
||||||
|
3 |
AP9100703 - ASSIEME COPERCHIO CON PARATIA More informationQuantity required : 1 |
||||||
|
4 |
AP9100588-PRESA ARIA DX More informationQuantity required : 1 |
||||||
|
5 |
AP9100587-PRESA ARIA SX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/5/img/71975.jpg)
6 |
SCREW PARKER (4, 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152351 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
7 |
CLAMP HOSE (10, 1) OEM PIAGGIO COMMON A LA RANGE-AP8101595 More informationQuantity required : 1 |
||||||
|
8 |
AP8144038-FUEL HOSE 6X10 More informationQuantity required : 1 |
||||||
|
9 |
AP8102377-CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/9/img/71419.JPG)
10 |
CAP DE VIDANGE BOX A AIR OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-AP8120876 More informationQuantity required : 1 |
||||||
|
11 |
855786 - CABLAGE More informationQuantity required : 1 |
||||||
|
12 |
AP9100427-SENSORE TEMPER. ARIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
13 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 5 |
||||||
|
14 |
890513-GASKET D. 4 More informationQuantity required : 1 |
||||||
|
15 |
851006 - EPONGE More informationQuantity required : 1 |
||||||
|
16 |
858044-FILTER AIR More informationQuantity required : 1 |
||||||
|
17 |
858045-MANIVEAU AIR FILTER More informationQuantity required : 1 |
||||||
|
18 |
855783-GASKET More informationQuantity required : 1 |
||||||
|
19 |
855784 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
20 |
855770 - VIS M10X1,5X20 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
21 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301 More informationQuantity required : 1 |
||||||
|
22 |
CM239501 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
23 |
855790 - SOUPAPE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/6/2/img/68762.jpg)
24 |
WASHER FOR SCREW ENTRAINEMENT WATER PUMP OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-828535 More informationQuantity required : 1 |
||||||
|
25 |
855900 - CAPUCHON CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
26 |
AP9150529 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/1/img/71971.jpg)
27 |
SCREW BTR CARROSSERIE (3X12) OEM PIAGGIO COMMON A LA RANGE-AP8152334 More informationQuantity required : 2 |
