Vehicle Exploded View - APRILIA RXV 450 2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

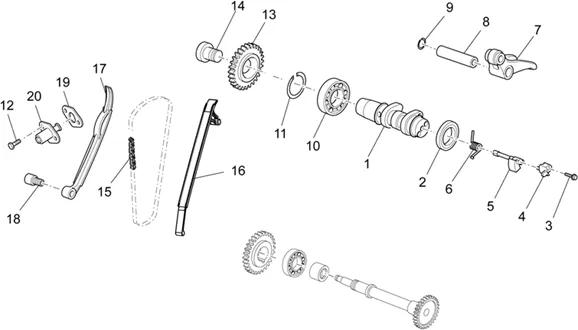

Moteur : 29.45 DISTRIBUTION CYLINDRE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/634/RXV_450_2008_29.45.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/4/1/0/img/96410.jpg)
1 |
CAMSHAFT OEM PIAGGIO APRILIA 550 RXV-SXV-8510015 More informationQuantity required : 1 |
||||||
1 |
8510035 - AXE DU CULBUTEURS More informationQuantity required : 1 |
||||||
|
2 |
CUSCINETTO A SFERE D25 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/0/img/71940.jpg)
3 |
SCREW FLANGE TH (5X20) OEM PIAGGIO COMMON A LA RANGE-AP8152274 More informationQuantity required : 1 |
||||||
|
4 |
AP9150303-BLOCCHETTO ARR. ALZAVAL More informationQuantity required : 1 |
||||||
|
5 |
AP9150450 - ALZAVALVOLA CAMMA POST More informationQuantity required : 1 |
||||||
|
6 |
AP9150304-MOLLA RICH. ALZAV. POST More informationQuantity required : 1 |
||||||
|
7 |
AP9150096 - BILANCIERE COMPLETO More informationQuantity required : 1 |
||||||
|
8 |
Axe culbuteur |
||||||
|
9 |
AP9150102-ANELLO ELAST. PER FORO More informationQuantity required : 1 |
||||||
|
10 |
Roulement à billes |
||||||
|
11 |
AP9150391-ANELLO ELAST. PER FORO More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
12 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 2 |
||||||
|
13 |
AP9150506-INGR. DISTRIB. SUP Z 22 More informationQuantity required : 1 |
||||||
|
14 |
AP9150508-SCREW SPECIALE DX M16X1 More informationQuantity required : 1 |
||||||
|
15 |
AP9150133 - CATENA DISTRIBUZIONE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/7/6/7/img/97767.jpg)
15 |
CHAIN DE TIMING OEM PIAGGIO APRILIA 450-550 SXV, RXV-AP9150327 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/6/1/1/img/97611.jpg)
16 |
TIMING CHAIN GUIDE "PIAGGIO GENUINE PART" APRILIA 450 SXV, RXV -AP9150011 More informationQuantity required : 1 |
||||||
|
16 |
GUIDE CHAIN DE TIMING OEM PIAGGIO APRILIA 550 SXV, RXV-AP9150300 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/6/1/2/img/97612.jpg)
17 |
TIMING CHAIN SLIDING BLOCK "PIAGGIO GENUINE PART" APRILIA 450 SXV, RXV -AP9150012 More informationQuantity required : 1 |
||||||
|
18 |
AP9150142-SCREW SPECIALE CON E. I. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/6/6/9/img/97669.jpg)
19 |
GASKET OF TENDEUR DE CHAIN DE TIMING OEM APRILIA 450550 RXV, SXV 2006 < 2009-AP9150141 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/6/6/8/img/97668.jpg)
20 |
TENDEUR CHAIN DE TIMING OEM PIAGGIO APRILIA 450-550 SXV, RXV-AP9150140 More informationQuantity required : 1 |
