Vehicle Exploded View - APRILIA RX 50 Racing 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

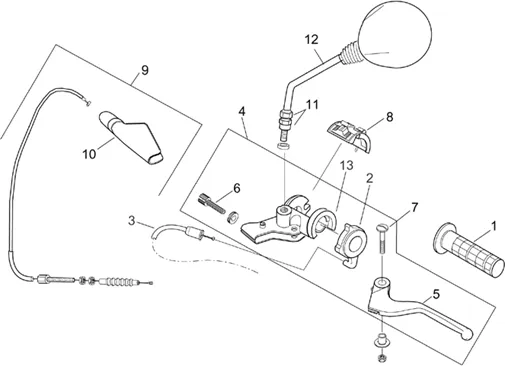

Chassis : 28.16 COMMANDES III
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/682/RX_50_Racing_2003_28.16.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/6/4/img/72264.jpg)
1 |
HAND GRIP "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX (PAIR) -AP8218628 More informationQuantity required : 1 |
||||||
2 |
AP8218626 - CKOKE PARTE MOBILE More informationQuantity required : 1 |
||||||
|
3 |
AP8214233 - CAVO COMANDO STARTER More informationQuantity required : 1 |
||||||
|
4 |
AP8218623 - COMANDO FRIZIONE COMPLETO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/7/1/4/img/56714.jpg)
5 |
AP8218594-LEVER CLUTCH NU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/2/8/7/img/46287.jpg)
6 |
BUTEE REGLABLE DE LEVER CLUTCH OEM PIAGGIO APRILIA 50 RS, SX, RX, MX, PEGASO, EUROPA, TUAREG, CLASSIC, AF1-AP8118104 More informationQuantity required : 1 |
||||||
|
7 |
Vis cde embr-série; |
||||||
|
8 |
Dévio gche+câbl. |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/5/5/1/img/56551.jpg)
9 |
CABLE/CONTROL/TRANSMISSION CLUTCH OEM PIAGGIO APRILIA 50 MX 2004 >, RX 2002 > 2004-AP8214151 More informationQuantity required : 1 |
||||||
|
10 |
AP8218358-COVER-REGLAGE CLUTCH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/2/3/5/img/45235.jpg)
11 |
INSERT/BRACKET MIRROR OEM PIAGGIO APRILIA 50-125 RX, SX, MX 2010 <-AP8102825 More informationQuantity required : 1 |
||||||
|
12 |
AP8201984-MIROIR MIRROR More informationQuantity required : 1 |
||||||
|
13 |
AP8118173-BRACKET CABLE (PL) More informationQuantity required : 1 |
