Vehicle Exploded View - APRILIA RX 50 Factory e4 2018 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

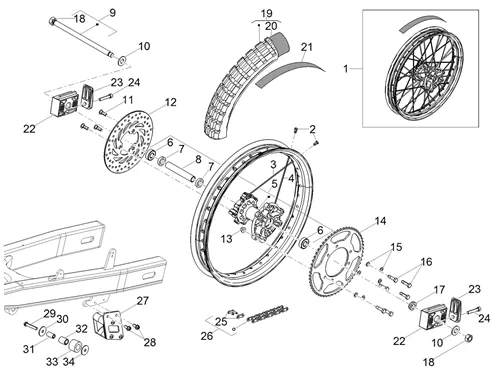

Roues : 05.02 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/790/RX_50_Factory_e4_2018_(EMEA)_05.02.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/4/1/img/70341.jpg)
1 |
8675420001 - ROUE AR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/8/1/5/img/151815.jpg)
2 |
NUT DE SPOKE (D3, 5) OEM PIAGGIO COMMON A LA RANGE-AP8208410 More informationQuantity required : 36 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/9/7/img/64497.jpg)
3 |
SPOKE DE REAR WHEEL 212MM OEM DERBI 50 SENDA R 2005 >/GILERA 50 RCR/APRILIA 50 RX-00H01307691 More informationQuantity required : 18 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/0/3/img/64503.jpg)
4 |
SPOKE DE REAR WHEEL 219MM OEM PIAGGIO GILERA 50 RCR 2011 >/DERBI 50 SENDA R 2005 >/APRILIA RX 2011 >-00H01308691 More informationQuantity required : 36 |
||||||
5 |
86708900WGA-HUB WHEEL ARR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/8/1/img/67481.jpg)
6 |
BEARING (15X35X11) REAR WHEEL OEM PIAGGIO 50 GILERA SMT 2011 >/DERBI SENDA 2003 >-601345 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/2/8/4/img/70284.jpg)
7 |
COUSSINET BRONZE REAR WHEEL OEM PIAGGIO GILERA 50 SMT 2018 >/DERBI 50 SENDA 2005 > 2011-867072 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/4/0/img/70340.jpg)
8 |
SPACER DE REAR WHEEL OEM PIAGGIO GILERA 50 RCR 2018 >/APRILIA 50 RX 2018 >-867541 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/7/6/img/64476.jpg)
9 |
WHEEL SPINDLE REAR (L 275) (D15) OEM DERBI 50 SENDA 2003 < 2007/GILERA 50 SMT RACING 2011 >/APRILIA 50 SX, RX FACTORY 2018 >-00H01303201 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/9/0/img/70190.jpg)
10 |
SPACER DE REAR WHEEL (D15) OEM PIAGGIO 50 GILERA SMT RACING 2011 >, RCR 2018 >/APRILIA RX FACTORY 2018 >, 50-125 RS4 2011 >/DERBI SENDA 2010 > 2013-866536 More informationQuantity required : 2 |
||||||
|
11 |
2B004607 - VIS TBEI 10.9 M8X24 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/0/6/6/img/70066.jpg)
12 |
BRAKE DISC REAR OEM PIAGGIO GILERA 50 RCR 2011 >/APRILIA 50 RX, SX 2011-864732 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/0/img/63720.jpg)
13 |
NUT FLANGE (8X1. 25) OEM PIAGGIO COMMON A LA RANGE-00026008001 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/5/7/2/img/149572.jpg)
14 |
COURONNE 59 TEETH OEM PIAGGIO 50 GILERA RCR 2018 >/DERBI SENDA R 2018 >-2B004447 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
15 |
WASHER ELASTIC COURBE (8. 5X15X0. 8) OEM PIAGGIO COMMON A LA RANGE-AP8150376 More informationQuantity required : 6 |
||||||
|
16 |
2B004611-SCREW More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/2/7/img/70327.jpg)
17 |
SPACER DE REAR WHEEL OEM DERBI 50 SENDA/GILERA 50 RCR 2011 >/APRILIA 50 RX 2011 >-867313 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/1/4/img/64214.jpg)
18 |
NUT FRONT WHEEL OU REAR 50 A BOX OEM PIAGGIO GILERA 50 SMT, RCR 2011 >/DERBI 50 SENDA 2003 >/APRILIA RS4 2011 >, 50 SX, RX 2011 >-00H00300672 More informationQuantity required : 1 |
||||||
|
19 |
B045402-NEUMÁTICO 110/80-18 " 62P SAVA More informationQuantity required : 1 |
||||||
|
20 |
00H01308361-CHAMRE A AIR ARR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/0/img/63880.jpg)
21 |
RIM TAPE OEM PIAGGIO 17/18 ¨ (LARGEUR 40)-00D01303401 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/7/5/img/64475.jpg)
22 |
TENDEUR WHEEL OEM PIAGGIO 50 GILERA 50 SMT RACING 2011 >/DERBI SENDA DRD RACING 2010 > 2013/APRILIA 50-125 RS 2011 >, 50 SX FACTORY, RX FACTORY 2018 >-00H01303171 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/6/1/img/64461.jpg)
23 |
PLATE TENDEUR DE CHAIN OEM PIAGGIO 50-125 APRILIA RS4 2011 >, 50 SX, RX 2018 >/DERBI SENDA 2010 > 2012/GILERA 50 SMT RACING 2011 >-00H01301471 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/9/img/71849.jpg)
24 |
SCREW BTR (8X50) OEM PIAGGIO COMMON A LA RANGE-AP8150277 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/4/0/5/img/149405.jpg)
25 |
CLIP QUICK (REGINA) OEM DERBI 50 2014 >/APRILIA RS, RX, SX 2014 >-2B004620 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/1/0/img/151110.jpg)
26 |
CHAIN 420/134M OEM PIAGGIO 50 GILERA SMT 2018 >/DERBI SENDA 2018 >-2B005116R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/5/3/img/69853.jpg)
27 |
GUIDE CHAIN 50 A BOX OEM 50 GILERA SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >/DERBI 50 SENDA 2006 > (COMPLETE)-86133R More informationQuantity required : 1 |
||||||
|
28 |
884043-SCREW TBEI FL M6X12 PREIMPREGNATA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/3/img/71953.jpg)
29 |
SCREW FLANGE TH (8X45) OEM PIAGGIO COMMON A LA RANGE-AP8152291 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/2/4/img/50824.jpg)
30 |
WASHER PLATE (8, 4X32X2, 5) OEM PIAGGIO COMMON A LA RANGE-AP8150019 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/1/6/img/46916.jpg)
31 |
SPACER REAR WHEEL OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA/APRILIA 50 SX, RX 2018 >-AP8121672 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/1/6/img/46616.jpg)
32 |
SPACER PLASTIQUE (14X19X25) OEM PIAGGIO COMMON A LA RANGE-AP8120568 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/1/7/img/46617.jpg)
33 |
ROULETTE TENDEUR DE CHAIN OEM PIAGGIO 50 GILERASMT, RCR 2018 >/DERBI SENDA 2018 >/APRILIA SX, RX 2018 >-AP8120569 More informationQuantity required : 1 |
||||||
|
34 |
WASHER PLATE (8, 4X32X2, 5) OEM PIAGGIO COMMON A LA RANGE-AP8150019 More informationQuantity required : 1 |
