Vehicle Exploded View - APRILIA RX 125 E5 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

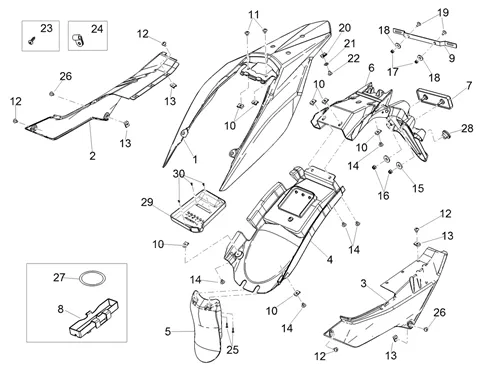

Châssis : 02.04 CARROSSERIE POSTERIEURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/995/RX_125_E5_2021_(EMEA)_02.04.png)
1 |
FAIRING REAR WHITE OEM APRILIA 125 RX, SX 2018 >-86596200W0B More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/4/4/3/2/img/154432.jpg)
1 |
FAIRING REAR BLACK OEM APRILIA 125 RX, SX 2018 >-86596200W0N More informationQuantity required : 1 |
|||||||||
|
2 |
2B004706-COVER More informationQuantity required : 1 |
|||||||||
|
3 |
2B004705-COVER More informationQuantity required : 1 |
|||||||||
|
4 |
2B004443-DESSOUS SEAT More informationQuantity required : 1 |
|||||||||
|
5 |
865985-PROTECT. AMORTIG. DRD125 09 More informationQuantity required : 1 |
|||||||||
|
6 |
DOOR PLATE OEM PIAGGIO 125 RX, SX APRILIA 2018 >-865984 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/8/img/71568.jpg)
7 |
CATADIOPTRE REAR OEM PIAGGIO COMMON A LA RANGE MOTO ET MAXI SCOOTER APRILIA-AP8124718 More informationQuantity required : 1 |
|||||||||
|
8 |
866484-CAJA HERRAMIENTAS DRD125 09 More informationQuantity required : 1 |
|||||||||
|
9 |
2R000363-BRACKET PLATE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
10 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/3/7/img/64537.jpg)
11 |
SCREW BTR HEAD BOMBEE (6X16) OEM PIAGGIO COMMON A LA RANGE-00H01501701 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
12 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
13 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462 More informationQuantity required : 6 |
|||||||||
|
14 |
2R000356-SCREW M6 - 16 More informationQuantity required : 5 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/0/img/65360.jpg)
15 |
WASHER PLATE (4X12) OEM PIAGGIO COMMON A LA RANGE-013763 More informationQuantity required : 2 |
|||||||||
|
16 |
2R000438-NUT More informationQuantity required : 2 |
|||||||||
|
17 |
2R000440-NUT More informationQuantity required : 2 |
|||||||||
|
18 |
2R000417-WASHER # 6. 4 - # 12 - 1. 6 More informationQuantity required : 2 |
|||||||||
|
19 |
2R000433-SCREW M6 - 16 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/8/img/65998.jpg)
20 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-248419 More informationQuantity required : 1 |
|||||||||
|
21 |
2R000413-WASHER # 5. 26 - # 16 - 1 More informationQuantity required : 1 |
|||||||||
|
22 |
2R000403-SCREW M5 - 16 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/6/8/img/68368.jpg)
23 |
SCREW AUTOTARAUDEUSE (3. 5X12) CRUCIFORME ORIGNE PIAGGIO COMMON A LA RANGE-664170 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/0/5/4/img/70054.jpg)
24 |
GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE 50 A BOX-864454 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/8/1/img/63681.jpg)
25 |
SCREW AUTOTARAUDEUSE (5X14) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-00011051401 More informationQuantity required : 2 |
|||||||||
|
26 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
26 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 2 |
|||||||||
|
27 |
2R000349-RIBBON, TOOL SET More informationQuantity required : 1 |
|||||||||
|
28 |
2R000341-PROTECTOR SHOCK ABSORBER More informationQuantity required : 1 |
|||||||||
|
29 |
2B007977 SADDLE COMPARTMENT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/4/img/63854.jpg)
30 |
SCREW PARKER CRUCIFORME (3, 5X9, 5) OEM PIAGGIO COMMON A LA RANGE-008432 More informationQuantity required : 3 |
|||||||||
