Vehicle Exploded View - APRILIA RX 125 2008-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

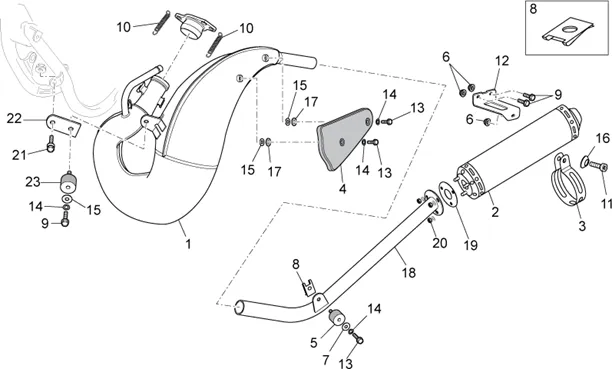

Chassis : 28.21 POT D'ÉCHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/688/RX_125_2008-2010_28.21.PNG)
1 |
856720 - POT D'ECHAPPEMENT SX RX 125 E3 11KW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/0/7/0/img/41070.jpg)
1 |
EXHAUST "PIAGGIO GENUINE PART" APRILIA 50-125 RX, SX -860803 More informationQuantity required : 1 |
||||||
|
2 |
853034 - SILENCIEUX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/5/8/1/img/46581.jpg)
3 |
SILENCER CLIP "PIAGGIO GENUINE PART" PIAGGIO APRILIA 125 RS, RX, SX 2006>2010 -AP8119881 More informationQuantity required : 1 |
||||||
|
4 |
AP8119494 - PROTE ECHAP More informationQuantity required : 1 |
||||||
|
5 |
AP8702106-BUSH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
6 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/1/3/img/72313.jpg)
7 |
WASHER ISOLANTE (6X20X1. 5) EXHAUST OEM PIAGGIO COMMON A LA RANGE-AP8221297-ISOLANTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
8 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
9 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/0/9/4/img/45094.jpg)
10 |
SPRING EXHAUST OEM APRILIA 50-125 COMMON A LA RANGE 2005 <-AP8101259 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/4/img/71824.jpg)
11 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8150137 More informationQuantity required : 1 |
||||||
|
12 |
860178-CALIPER BRACKET SILENCER D'ECH. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
13 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/3/4/img/109834.jpg)
14 |
WASHER ELASTIC COURBE (6X12) OEM PIAGGIO COMMON A LA RANGE-658830 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
15 |
WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/9/img/71489.jpg)
16 |
WASHER FAIRING OEM PIAGGIO APRILIA 50-125 RS, RX, SX, 1000 CAPONORD/MOTO-GUZZI 1200 STELVIO-AP8121819 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/8/img/71418.jpg)
17 |
AP8120870 - RONDELLE ISOLANTE More informationQuantity required : 2 |
||||||
|
18 |
856721-HOSE DECHAPPEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/0/7/1/img/41071.jpg)
18 |
HOSE DECHAPPEMENT CENTRAL OEM PIAGGIO APRILIA 125 RX, SX 2008 > 2010-860804 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/5/8/img/46658.jpg)
19 |
GASKET SILENCER OEM PIAGGIO 125 RS APRILIA 2010 <-AP8120812 More informationQuantity required : 1 |
||||||
|
20 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 3 |
||||||
|
21 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 1 |
||||||
|
22 |
AP8134994 - PIASTRINA FISS.ANT.MARMITTA More informationQuantity required : 1 |
||||||
|
23 |
AP8144673-SILENCER More informationQuantity required : 1 |
