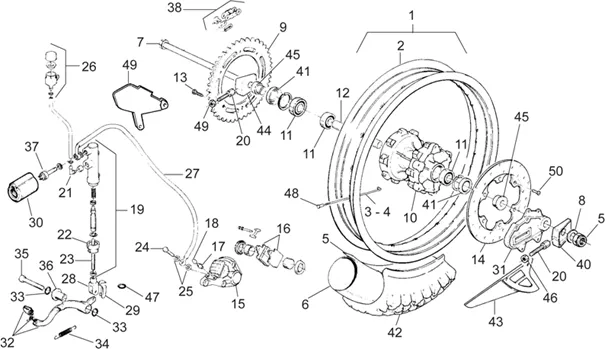

Vehicle Exploded View - APRILIA RX 125 1995-1998 Mot 122 cc

	P2R reference
	Maker reference	AP8108654

ROUE ARRIERE

	P2R reference
	Maker reference	AP8108674

RCHIO POSTERIORE ANODIZZ

	P2R reference
	Maker reference	AP8108574

RAGGIO POST. D.3,5

	P2R reference	45762
	Maker reference	AP8108575

AP8108575 - RAGGIO POST. D.3.5

	P2R reference	45808
	Maker reference	AP8109144

AP8109144 - FLAP RUOTA POST.(PL)

	P2R reference	47718
	Maker reference	AP8125579

AP8125579-WHEEL SPINDLE *

	P2R reference	45727
	Maker reference	AP8107115

AP8107115 - COURONNE Z*42

	P2R reference	47737
	Maker reference	AP8125707

AP8125707 - MOYEU AR GRIS;

	P2R reference	71267
	Maker reference	AP8110045

AP8110045 - ROULEMENT MOYEU

	P2R reference
	Maker reference	AP8108517

ROULEMENT ROUE ARR

	P2R reference	71928
	Maker reference	AP8152196

SCREW BTR HEAD FRAISEE (8X26) OEM PIAGGIO COMMON A LA RANGE-AP8152196

	P2R reference	45949
	Maker reference	AP8113462

AP8113462-REAR BRAKE DISC

	P2R reference
	Maker reference	AP8113560

Pince frein AR

	P2R reference
	Maker reference	AP8113595

Plaquettes-paire

	P2R reference	71305
	Maker reference	AP8113549

AP8113549 - PURGE AIR

	P2R reference	71286
	Maker reference	AP8113070

AP8113070-CAPUCHON RENIFLARD

	P2R reference	45940
	Maker reference	AP8113359

AP8113359 - MA?T.CYL. FREIN AR

	P2R reference	71962
	Maker reference	AP8152305

SCREW REGLAGE TENSION CHAIN OEM APRILIA COMMON A LA RANGE-AP8152305

	P2R reference	72197
	Maker reference	AP8213057

FITTING OF PUMP BRAKE REAR OEM APRILIA/MOTO-GUZZI COMMON A LA RANGE-AP8213057

	P2R reference	71292
	Maker reference	AP8113288

SOUFFLET EN RUBBER ROD OF PUMP BRAKE REAR APRILIA/MOTO GUZZI-AP8113288

	P2R reference	46945
	Maker reference	AP8121842

AP8121842-POUSSOIR CDE MAI-CYL.

	P2R reference	71282
	Maker reference	AP8113003

SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003

	P2R reference	71283
	Maker reference	AP8113004

WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004

	P2R reference	71679
	Maker reference	AP8133873

AP8133873-TANK OIL FRENI

	P2R reference	45963
	Maker reference	AP8113555

AP8113555 - DURITE FREIN ARRIERE

	P2R reference	71167
	Maker reference	AP8101968

FOURCHETTE ROD OF CONTROL DE BRAKE MASTER CYLINDER REAR OEM PIAGGIO COMMON A ALA RANGE MOTO-AP8101968

	P2R reference	72129
	Maker reference	AP8201301

AGRAPHE/CLIP ROD OF MAITRE CYLINDER REAR OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8201301

	P2R reference	45145
	Maker reference	AP8102289

AP8102289-PROTECTOR INTERRUPTEUR STOP

	P2R reference	48944
	Maker reference	AP8134481

AP8134481 - PLAQUE ANCRAGE PINCE PEINT;

	P2R reference	49122
	Maker reference	AP8135287

AP8135287-LEVER FREI ARR. COMPLETE

	P2R reference	46614
	Maker reference	AP8120538

AP8120538-O-RING

	P2R reference	71436
	Maker reference	AP8121126

SPRING PEDAL OF BRAKE REAR OEM APRILIA CAPONORD, DORSODURO, SHIVER-AP8121126

	P2R reference	50869
	Maker reference	AP8150388

SCREW BTR (8X100) OEM PIAGGIO COMMON A LA RANGE-AP8150388

	P2R reference	46940
	Maker reference	AP8121809

AP8121809-BUSH

	P2R reference	47498
	Maker reference	AP8124479

INTERRUPTEUR/CONTACTEUR DE STOP ON MAITRE CYLINDER REAR OEM PIAGGIO APRILIA 50-125 RS 1996 > 2011, RX 1995 > 2004-AP8124479

	P2R reference	45722
	Maker reference	AP8107104

AP8107104-CHAIN COMP. MAILLE

	P2R reference
	Maker reference	AP8135242

TENDEUR CHAINE GAUCHE

	P2R reference	47708
	Maker reference	AP8125462

SEAL RING GASKET- FOR REAR WHEEL HUB "PIAGGIO GENUINE PART" APRILIA 125 SX, RX, MX, 125-650 PEGASO -AP8125462-

	P2R reference
	Maker reference	AP8138228

COUVRE DISQUE INF.

	P2R reference	49119
	Maker reference	AP8135243

AP8135243-TENDEUR CHAIN RIGHT

	P2R reference	47719
	Maker reference	AP8125580

AP8125580 - ENTRETOISE ROUE ARRIERE

	P2R reference	97095
	Maker reference	AP8152262

AP8152262 - ECROU BAS

	P2R reference	71387
	Maker reference	AP8120178

O-RING MAITRE CYLINDER REAR (OR112) OEM PIAGGIO COMMON A LA RANGE-AP8120178

	P2R reference	97056
	Maker reference	AP8108672

AP8108672-NIPPLES

	P2R reference	48664
	Maker reference	AP8131792

AP8131792 - PROTECTION TUYAU FREIN ARRIERE;

	P2R reference	50974
	Maker reference	AP8152259

SCREW MOUNTING BRAKE DISC OEM PIAGGIO APRILIA 125 SX-RX-MX-AP8152259

	P2R reference	50876
	Maker reference	AP8150433

NUT AUTOBLOQUANT/NYLSTOP (M16X1. 5) OEM PIAGGIO COMMON A LA GAMM E-AP8150433
