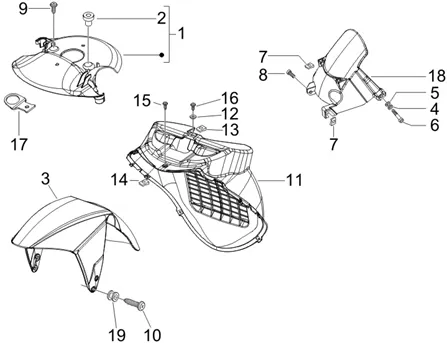

Châssis - parties plastiques - carrosseries : 02.33 LOGEMENT ROUE - GARDE BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/164/Runner_50_SP_SC_02.33.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/4/0/8/img/90408.jpg)
1 |
PROTECTOR/FRONT MUDGUARD SOUS FORK OEM PIAGGIO 50 NRG 2005 >/GILERA 50-125 RUNNER 2005 >-668566 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/8/8/img/68888.jpg)
2 |
BUSH EN T (D5) MOLETEE CENTRAGE BOX A AIR OEM PIAGGIO COMMON A LA RANGE-830056 More informationQuantity required : 2 |
||||||
3 |
FRONT MUDGUARD OEM PIAGGIO GILERA 50-125 RUNNER LATE MODEL UNPAINTED-647590 More informationQuantity required : 1 |
||||||
|
3 |
64759000R7 - GARDE BOUE AV RUNNER RST More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
4 |
WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
5 |
WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/7/img/65397.jpg)
6 |
SCREW CRUCIFORME (6X35) OEM PIAGGIO COMMON A LA RANGE-015804 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
7 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
8 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/0/img/65640.jpg)
9 |
SCREW TH (6X18) OEM PIAGGIO COMMUNA LA RANGE-031089 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
10 |
SCREW TBC (6X16) OEM PIAGGIO COMMON A LA RANGE-272836 More informationQuantity required : 4 |
||||||
|
11 |
624425000C-LOGEMENT WHEEL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/8/img/65428.jpg)
12 |
WASHER PLATE (5, 2X18X1, 5) OEM PIAGGIO COMMON A LA RANGE-0166866 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/8/img/65998.jpg)
13 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-248419 More informationQuantity required : 1 |
||||||
|
14 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
|
15 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/1/img/69101.jpg)
16 |
SCREW CRUCIFORME (5X17) OEM PIAGGIO COMMON A LA RANGE-834065 More informationQuantity required : 1 |
||||||
|
17 |
949393-PLATE BRAKE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/1/5/img/70915.jpg)
18 |
PROTECTOR-MUD ENGINE OEM PIAGGIO 50 NRG 2005 >/GILERA 50 RUNNER 2005 >-959440000C More informationQuantity required : 1 |
||||||
|
19 |
259828-WASHER More informationQuantity required : 4 |
||||||
|
22 |
959520000C - COIFFE More informationQuantity required : 1 |
