Vehicle Exploded View - GILERA RUNNER 50 Pure Jet Race 2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

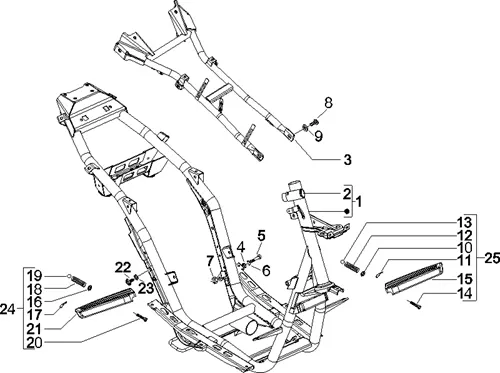

Châssis - parties plastiques - carrosseries : 02.01 CHÂSSIS/COQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/157/Runner_50_Pure_Jet_Race_2005_02.01.PNG)
1 |
6242885 - CHASSIS RUNNER RST More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/6/img/66306.jpg)
2 |
BRACKET LOCK OEM PIAGGIO 125 X7, X8, X9, X-EVO, GTS, LX, FLY, BEVERLY/GILERA 125 RUNNER/APRILIA 50 SR MOTARD-298604 More informationQuantity required : 1 |
||||||
|
3 |
6241125-FRAME More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
4 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 1 |
||||||
|
5 |
015643-BOLT S01564300 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
6 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
7 |
NUT (M8X6, 5) OEM PIAGGIO COMMON A LA RANGE-020108 More informationQuantity required : 1 |
||||||
|
8 |
598920-BOLT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/7/img/69107.jpg)
9 |
WASHER (8, 2X16X2, 2) OEM PIAGGIO COMMON A TOUTE LA RANGE-834187 More informationQuantity required : 2 |
||||||
|
10 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/5/img/66045.jpg)
11 |
CLIPS/GOUPILLE OEM PIAGGIO COMMON A LA RANGE-259933 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/2/5/6/1/img/162561.jpg)
12 |
SPRING OF PRESSURE DE BILLE PASSENGER FOOTREST OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-2955909 More informationQuantity required : 1 |
||||||
|
12 |
SPRING OF PRESSURE DE BILLE PASSENGER FOOTREST OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-2955909 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/1/9/5/3/img/181953.JPG)
13 |
BILLE (6) OEM PIAGGIO COMMON A LA RANGE-2955916 More informationQuantity required : 1 |
||||||
|
13 |
BILLE (6) OEM PIAGGIO COMMON A LA RANGE-2955916 More informationQuantity required : 1 |
||||||
|
14 |
VIS |
||||||
|
15 |
654131000C - REPOSE PIED More informationQuantity required : 1 |
||||||
|
16 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 1 |
||||||
|
17 |
CLIPS/GOUPILLE OEM PIAGGIO COMMON A LA RANGE-259933 More informationQuantity required : 1 |
||||||
|
18 |
SPRING OF PRESSURE DE BILLE PASSENGER FOOTREST OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-2955909 More informationQuantity required : 1 |
||||||
|
18 |
SPRING OF PRESSURE DE BILLE PASSENGER FOOTREST OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-2955909 More informationQuantity required : 1 |
||||||
|
19 |
BILLE (6) OEM PIAGGIO COMMON A LA RANGE-2955916 More informationQuantity required : 1 |
||||||
|
19 |
BILLE (6) OEM PIAGGIO COMMON A LA RANGE-2955916 More informationQuantity required : 1 |
||||||
|
20 |
VIS |
||||||
|
21 |
TAPIS REPOSE PIED |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/5/img/67255.jpg)
22 |
SCREW BTR HEAD BOMBEE (8X16) OEM PIAGGIO COMMON A LA RANGE-582428 More informationQuantity required : 4 |
||||||
|
23 |
WASHER (8, 2X16X2, 2) OEM PIAGGIO COMMON A TOUTE LA RANGE-834187 More informationQuantity required : 4 |
||||||
|
24 |
949527 - REPOSE PIED DROIT More informationQuantity required : 1 |
||||||
|
25 |
949526 - REPOSE PIED GAUCHE More informationQuantity required : 1 |
