Vehicle Exploded View - GILERA RUNNER 50 Poggiali 1998-2005 GILERA

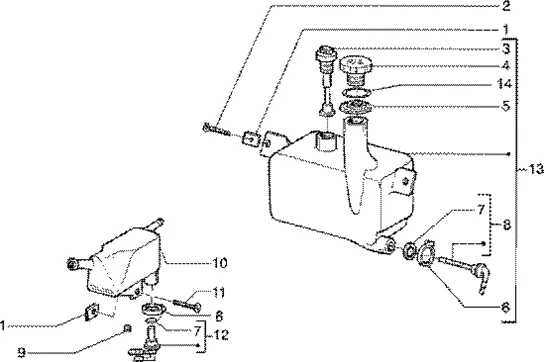

Châssis : T35 RESERVOIR D'HUILE MIX-DEGAZEUR
Reservoir d'huile mix-degazeur
Search
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

1
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 3

SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249

2
P2R reference P2R reference 67113
Maker reference Maker reference 575249

SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249

More information

Quantity required : 2

JAUGE A OIL OEM PIAGGIO 50 TYPHOON 1997 > 2009, NRG 1999 > 2004, FLY 2005 >, ZIP 1997 >, VESPA PRIMAVERA 2013 >, VESPA SPRINT 2014 >/GILERA 50 RUNNER 1999 > 2004-573458

3
P2R reference P2R reference 67096
Maker reference Maker reference 573458

JAUGE A OIL OEM PIAGGIO 50 TYPHOON 1997 > 2009, NRG 1999 > 2004, FLY 2005 >, ZIP 1997 >, VESPA PRIMAVERA 2013 >, VESPA SPRINT 2014 >/GILERA 50 RUNNER 1999 > 2004-573458

More information

Quantity required : 1

CAP TANK OIL OEM PIAGGIO COMMON A LA RANGE SCOOTER 50CC 2T-259829

4
P2R reference P2R reference 66042
Maker reference Maker reference 259829

CAP TANK OIL OEM PIAGGIO COMMON A LA RANGE SCOOTER 50CC 2T-259829

More information

Quantity required : 1

573085 - CUVETTE

5
P2R reference P2R reference 80185
Maker reference Maker reference 573085

573085 - CUVETTE

More information

Quantity required : 1

CLAMP SERRAGE ROBINET D'ESSENCE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-879888

6
P2R reference P2R reference 70716
Maker reference Maker reference 879888

CLAMP SERRAGE ROBINET D'ESSENCE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-879888

More information

Quantity required : 1

GASKET OF ROBINET FUEL OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-196868

7
P2R reference P2R reference 65825
Maker reference Maker reference 196868

GASKET OF ROBINET FUEL OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-196868

More information

Quantity required : 2

FITTING TANK OIL OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-574362

8
P2R reference P2R reference 67105
Maker reference Maker reference 574362

FITTING TANK OIL OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-574362

More information

Quantity required : 1

RUBBER MOUNT OEM PIAGGIO COMMON A TOUTE LA RANGE MAXISCCOOTER-258904

9
P2R reference P2R reference 66031
Maker reference Maker reference 258904

RUBBER MOUNT OEM PIAGGIO COMMON A TOUTE LA RANGE MAXISCCOOTER-258904

More information

Quantity required : 1

577871 - DEGAZEUR

10
P2R reference P2R reference 81371
Maker reference Maker reference 577871

577871 - DEGAZEUR

More information

Quantity required : 1

SCREW - (6x20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830

11
P2R reference P2R reference 66043
Maker reference Maker reference 259830
Replaced by référence Replaced by référence 73367

SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830

More information

Quantity required : 1

ROBINET FUEL OEM PIAGGIO GILERA 50-125 RUNNER 1998 > 2005-577881

12
P2R reference P2R reference 81374
Maker reference Maker reference 577881

ROBINET FUEL OEM PIAGGIO GILERA 50-125 RUNNER 1998 > 2005-577881

More information

Quantity required : 1

574641 - RESERVOIR HUILE FX

13
P2R reference P2R reference 80406
Maker reference Maker reference 574641

574641 - RESERVOIR HUILE FX

More information

Quantity required : 1
