Vehicle Exploded View - GILERA RUNNER 200 VXR 4T Race E3 2006 GILERA

Châssis - parties plastiques - carrosseries : 02.30 COFFRE AVANT - CONTRE-TABLIER

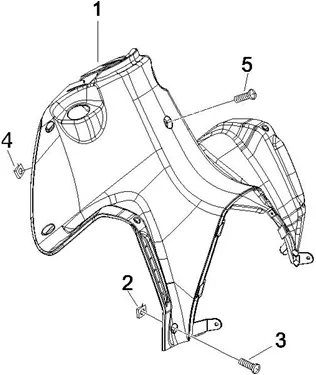

Coffre avant - Contre-tablier
Search
LEG SHIELD INNER OEM PIAGGIO GILERA 50-125 RUNNER 2005 >-949404000C

1
P2R reference P2R reference 93689
Maker reference Maker reference 949404000C

LEG SHIELD INNER OEM PIAGGIO GILERA 50-125 RUNNER 2005 >-949404000C

More information

Quantity required : 1

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

2
P2R reference P2R reference 72926
Maker reference Maker reference CM017410

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

More information

Quantity required : 10

SCREW OF FAIRING (3X18) OEM PIAGGIO COMMON A TOUTE LA RANGE-258249

3
P2R reference P2R reference 66028
Maker reference Maker reference 258249

SCREW OF FAIRING (3X18) OEM PIAGGIO COMMON A TOUTE LA RANGE-258249

More information

Quantity required : 8

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

4
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 1

SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249

5
P2R reference P2R reference 67113
Maker reference Maker reference 575249

SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249

More information

Quantity required : 1
