Vehicle Exploded View - GILERA RUNNER 125 VX 4T (Euro 3) (2007)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

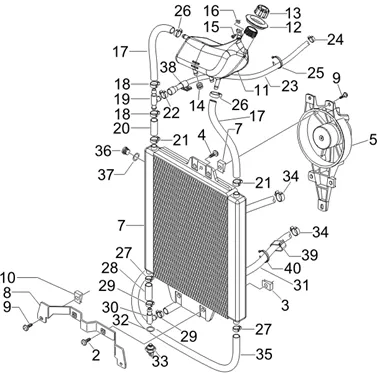

Châssis - parties plastiques - carrosseries : 02.55 INSTALATION DE REFOIDISSEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/190/Runner_125_VX_4T_(Euro_3)_(2007)_02.55.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/1/9/5/img/80195.jpg)
1 |
RADIATOR MAXI SCOOTER OEM PIAGGIO X7 125-250-300 2008 > 2010, X8 125-250 2005 > 2007-57312R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
2 |
SCREW TBC (6X16) OEM PIAGGIO COMMON A LA RANGE-272836 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
3 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
4 |
959614-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/4/4/img/67244.jpg)
5 |
VENTILATEUR MAXSCOOTER OEM PIAGGIO 125-250-300-400-500 MP3, BEVERLY, X-EVO, X10/GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX-58211R More informationQuantity required : 1 |
||||||
|
6 |
SCREW TBC (6X16) OEM PIAGGIO COMMON A LA RANGE-272836 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/3/2/img/67632.jpg)
6 |
GASKET OF CAP DE TANK LIQUIDE COOLING OEM PIAGGIO 125-250-400 BEVERLY, X-EVO, X8, 50-125 VESPA PRIMAVERA, SPRINT, 50 ZIP, NRG/GILERA 125-250-300 NEXUS, X-MAX-620737 More informationQuantity required : 1 |
||||||
|
7 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 3 |
||||||
|
8 |
949385-CALIPER More informationQuantity required : 1 |
||||||
|
9 |
SCREW TBC (6X16) OEM PIAGGIO COMMON A LA RANGE-272836 More informationQuantity required : 2 |
||||||
|
10 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/3/7/5/img/89375.jpg)
11 |
VASE EXPANSION/TANK LIQUIDE DE REFOIDISSEMENT OEM PIAGGIO GILERA 50-125 RUNNER 2005 >-656538 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/4/3/img/67743.jpg)
13 |
CAP VASE EXPANSION OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER-623673 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/4/5/img/66345.jpg)
14 |
RUBBER ANTI-VIBRATIONS OEM PIAGGIO COMMON A LA RANGE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
15 |
SCREW OF FAIRING (3X18) OEM PIAGGIO COMMON A TOUTE LA RANGE-258249 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
16 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/5/img/72865.jpg)
18 |
CLAMP (16. 2MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001903 More informationQuantity required : 2 |
||||||
|
19 |
574883-FITTING More informationQuantity required : 1 |
||||||
|
20 |
949637-HOSE RETOUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/7/4/1/img/204741.jpg)
21 |
HOSE CLAMP HOSE (15. 7) OEM PIAGGIO COMMON A LA RANGE-CM0019026 More informationQuantity required : 2 |
||||||
|
21 |
HOSE CLAMP HOSE (15. 7) OEM PIAGGIO COMMON A LA RANGE-CM0019026 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/9/img/72889.jpg)
22 |
HOSE CLAMP HOSE (6X9) OEM PIAGGIO COMMON A LA RANGE-CM002902 More informationQuantity required : 1 |
||||||
|
24 |
HOSE CLAMP HOSE (6X9) OEM PIAGGIO COMMON A LA RANGE-CM002902 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
25 |
HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/6/img/72866.jpg)
26 |
CLAMP HOSE (19. 8MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001904 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/8/img/72868.jpg)
27 |
CLAMP HOSE COOLING OU AIR FILTER (25. 6MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001907 More informationQuantity required : 2 |
||||||
|
28 |
949627-TUBE SILENCER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/0/img/72870.jpg)
29 |
CLAMP HOSE (D 27. 1) OEM PIAGGIO COMMON A LA RANGE-CM001909 More informationQuantity required : 2 |
||||||
|
30 |
949625 - RACCORD More informationQuantity required : 1 |
||||||
|
31 |
949626-TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/6/8/img/65768.jpg)
32 |
GASKET CUIVRE SONDE DE TEMPERATURE COOLING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-168077 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/1/0/img/67310.jpg)
33 |
SONDE DE TEMPERATURE WATER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-584715 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/9/img/72869.jpg)
34 |
CLAMP HOSE COOLING (30. 8 MM) OEM PIAGGIO COMMON A LA RANGE-CM001908 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/7/5/7/img/93757.jpg)
35 |
HOSE RACCORDEMENT PUMP-RADIATOR APRILIA RUNNER125 2005 >-949554 More informationQuantity required : 1 |
||||||
|
36 |
621365-CAP More informationQuantity required : 1 |
||||||
|
37 |
GASKET CUIVRE SONDE DE TEMPERATURE COOLING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-168077 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/9/img/72919.jpg)
38 |
CLIPS ATTACHE HARNESS OEM PIAGGIO COMMON A LA RANGE-CM013203 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/4/img/72904.jpg)
39 |
CLAMP PINCE RETENUE HOSE OEM PIAGGIO COMMON A LA RANGE-CM006902 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
40 |
HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134 More informationQuantity required : 2 |
