Vehicle Exploded View - APRILIA RSV4 1000 RR E4 ABS 2019 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

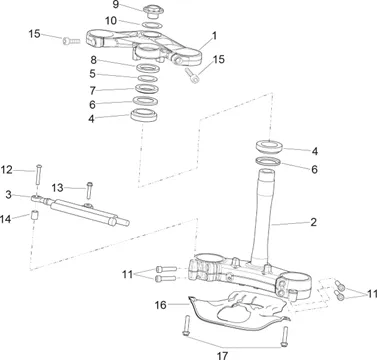

Guidon - commandes : 07.01 DIRECTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1272/RSV4_1000_RR_E4_ABS_2019_(EMEA)_07.01.png)
1 |
2B0038306-UPPER STEERING PLATE More informationQuantity required : 1 |
||||||
|
2 |
2B003923-PLATE INF. More informationQuantity required : 1 |
||||||
|
3 |
2B001699-SHOCK ABSORBER DE HANDLEBAR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/0/8/2/img/176082.jpg)
4 |
BEARING DE STEERING OEM PIAGGIO APRILIA 1000 CAPONORD, FUTURA, FALCO, 1000-1100 RSV-2, RSV-4/MOTO-GUZZI 1100-1200 BREVA, GRISO, 1400 CALIFORNIA, 1200 SPORT, STELVIO,-2B011121 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/5/0/img/71450.jpg)
5 |
WASHER DE SECURITE DE STEERING OEM PIAGGIO APRILIA 1000 RSV, TUONO/MOTO-GUZZI BREVA, GRISO, NORGE, STELVIO-AP8121207 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/2/3/img/71523.jpg)
6 |
ANNEAU PROTECTOR-POUSSIERE STEERING OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO-GUZZI-AP8123641 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/2/4/img/71524.jpg)
7 |
NUT DE STEERING OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8123642 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/2/5/img/71525.jpg)
8 |
NUT DE COLONNE DE STEERING OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8123643 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/4/2/img/72042.jpg)
9 |
CAP/BUSH PLATINE SUPERIEURE DE FORK OEM PIAGGIO APRILIA 1000 RSV-2, RSV-4, TUONO-AP8163170 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/8/5/img/71985.jpg)
10 |
WASHER DE STEERING OEM APRILIA COMMON A LA RANGE-AP8152442 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/2/img/71842.jpg)
11 |
SCREW BTR (8X35) OEM PIAGGIO COMMON A LA RANGE-AP8150236 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/7/6/img/50976.jpg)
12 |
SCREW FLANGE TH (6X40) OEM PIAGGIO COMMON A LA RANGE-AP8152283 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/1/img/71841.jpg)
13 |
SCREW BTR (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8150220 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/7/img/46927.jpg)
14 |
BUSH SPACER (6X10X16) OEM PIAGGIO COMMON A LA RANGE-AP8121718 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/4/img/71904.jpg)
15 |
SCREW BTR (8X30) DE T DE FORK OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8150540 More informationQuantity required : 2 |
||||||
|
16 |
2B005955-LATCH INF. FORK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
17 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 2 |
