Vehicle Exploded View - APRILIA RSV4 1000 RR 2016
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

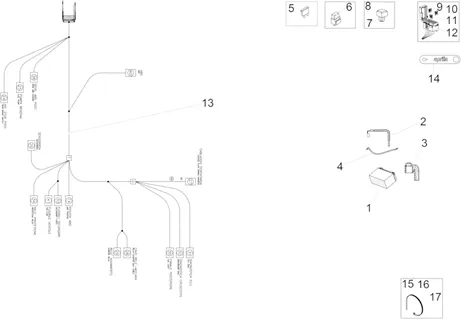

Dispositifs électriques : 11.030 CIRCUIT ELECTRIQUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/755/RSV4_1000_RR_2016_11.030.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/5/3/img/67853.jpg)
1 |
BATTERY 12V 12AH YT12A-BS OEM PIAGGIO COMMON A LA RANGE-639792 More informationQuantity required : 1 |
|||||||||
2 |
B044640 - CABLE More informationQuantity required : 1 |
|||||||||
|
3 |
895701-CAPUCHON More informationQuantity required : 1 |
|||||||||
|
4 |
2D000158-CABLE BATTERY More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/1/img/73401.jpg)
5 |
BLADE FUSE STANDARD 30A OEM PIAGGIO COMMON A LA RANGE-CM225730 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/1/9/7/img/146197.jpg)
6 |
RELAY FOR ELECTRIC STARTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 300-400-500 CC/APRILIA 900 SHIVER, DORSODURO, 1000 RSV-4, TUONO V4 -1D001697R More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/2/7/img/70827.jpg)
7 |
RELAIS INJECTION OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-895481 More informationQuantity required : 1 |
|||||||||
|
8 |
896715-RUBBER More informationQuantity required : 1 |
|||||||||
|
9 |
CM225605-FUSIBLE More informationQuantity required : 2 |
|||||||||
|
10 |
CM225607-FUSIBLE More informationQuantity required : 1 |
|||||||||
|
11 |
CM225615-FUSIBLE More informationQuantity required : 3 |
|||||||||
|
12 |
858212-RUBBER More informationQuantity required : 1 |
|||||||||
|
13 |
2D000061-WIRING More informationQuantity required : 1 |
|||||||||
|
14 |
860744-CLAMP EL. More informationQuantity required : 5 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/4/img/71394.jpg)
15 |
HOSE CLAMP NYLON TYPE RILSAN 4, 5X180MM OEM PIAGGIO COMMON A LA RANGE-AP8120416 More informationQuantity required : 2 |
|||||||||
|
16 |
AP8102386-FASCETTA IN NYLON NERA More informationQuantity required : 10 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/1/img/71411.jpg)
17 |
HOSE CLAMP NYLON TYPE RILSAN 4, 5X280MM OEM PIAGGIO COMMON A LA RANGE-AP8120657 More informationQuantity required : 2 |
|||||||||
