Vehicle Exploded View - APRILIA RSV4 1000 Racing Factory LE 2015 APRILIA

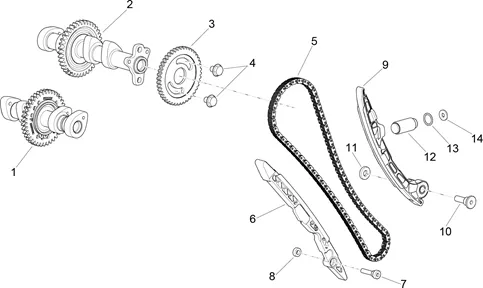

Moteur : 03.130 DISTRIBUTION CYLINDRE AVANT
Distribution cylindre avant
Search
2A0003285 - ARBRE A CAMES

1
P2R reference P2R reference 108574
Maker reference Maker reference 2A0003285

2A0003285-CAMSHAFT

More information

Quantity required : 1

2A0005075 - ARBRE A CAMES

2
P2R reference P2R reference 108589
Maker reference Maker reference 2A0005075

2A0005075-CAMSHAFT

More information

Quantity required : 1

857546 - COURONNE DISTRIBUTION

3
P2R reference P2R reference 108945
Maker reference Maker reference 857546

COURONNE DE TIMING (Z44) OEM APRILIA 1000-1100 RSV4 2011 >-857546

More information

Quantity required : 1

SCREW FLANGE TH (8X10, 3) OEM PIAGGIO COMMON A LA RANGE-1A003151

4
P2R reference P2R reference 151087
Maker reference Maker reference 1A003151

SCREW FLANGE TH (8X10, 3) OEM PIAGGIO COMMON A LA RANGE-1A003151

More information

Quantity required : 2

CHAIN DE TIMING (10, 30X7, 15) OEM PIAGGIO APRILIA 1000 RSV-4 2011 >, 1100 RSV-4 2019 >, 1000 TUONO V4 2011 >, 1100 TUONO V4 2015-897444

5
P2R reference P2R reference 42760
Maker reference Maker reference 897444

CHAIN DE TIMING (10, 30X7, 15) OEM PIAGGIO APRILIA 1000 RSV-4 2011 >, 1100 RSV-4 2019 >, 1000 TUONO V4 2011 >, 1100 TUONO V4 2015-897444

More information

Quantity required : 1

GUIDE CHAIN TIMING OEM PIAGGIO RSV4, TUONO APRILIA 2015 >-2A000559

6
P2R reference P2R reference 108595
Maker reference Maker reference 2A000559

GUIDE CHAIN TIMING OEM PIAGGIO RSV4, TUONO APRILIA 2015 >-2A000559

More information

Quantity required : 1

857476 - VIS SPECIALE

7
P2R reference P2R reference 40404
Maker reference Maker reference 857476

857476 - VIS SPECIALE

More information

Quantity required : 1

857477 - DOUILLE

8
P2R reference P2R reference 40405
Maker reference Maker reference 857477

857477-BUSH

More information

Quantity required : 1

PATIN TENDEUR CHAIN TIMING OEM PIAGGIO RSV4 APRILIA 2015 >-1A0047924

9
P2R reference P2R reference 108556
Maker reference Maker reference 1A0047925

PATIN TENDEUR CHAIN TIMING OEM PIAGGIO RSV4 APRILIA 2015 >-1A0047924

More information

Quantity required : 1

857094 - VIS SPECIALE M16X1

10
P2R reference P2R reference 40287
Maker reference Maker reference 857094

857094-SCREW SPECIALE M16X1

More information

Quantity required : 1

857096 - RONDELLE

11
P2R reference P2R reference 40289
Maker reference Maker reference 857096

857096-WASHER

More information

Quantity required : 1

TENDEUR DE CHAIN DE TIMING OEM PIAGGIO RSV4 APRILIA 2015 >-1A0047844

12
P2R reference P2R reference 127025
Maker reference Maker reference 1A0047845

TENDEUR DE CHAIN DE TIMING OEM PIAGGIO RSV4 APRILIA 2015 >-1A0047844

More information

Quantity required : 2

O-RING (14. 5X18X2) OEM PIAGGIO APRILIA 1000 RSV-4, TUONO-V4, PORTER DIESEL-857176

13
P2R reference P2R reference 69752
Maker reference Maker reference 857176

O-RING (14. 5X18X2) OEM PIAGGIO APRILIA 1000 RSV-4, TUONO-V4, PORTER DIESEL-857176

More information

Quantity required : 1

WASHER TENDEUR CHAIN DE TIMING (15X6X2) OEM PIAGGIO APRILIA 1000 RSV, TUONO-B045476

14
P2R reference P2R reference 62579
Maker reference Maker reference B045476

WASHER TENDEUR CHAIN DE TIMING (15X6X2) OEM PIAGGIO APRILIA 1000 RSV, TUONO-B045476

More information

Quantity required : 1
