Vehicle Exploded View - APRILIA RSV4 1000 Racing Factory E4 ABS 2018 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

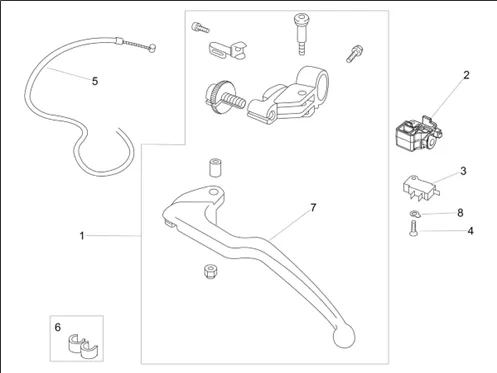

Guidon - commandes : 07.03 COMMANDE EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1239/RSV4_1000_Racing_Factory_E4_ABS_2018_(EMEA)_07.03.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/6/2/4/img/145624.jpg)
1 |
GRIP CLUTCH OEM APRILIA 660 RS 2020 >/1000-1100 RSV4 2017 >-2B003552 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/9/9/4/img/174994.jpg)
2 |
2B008238 - CLUTCH LEVER SWITCH SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/8/3/7/img/145837.jpg)
3 |
INTERRUPTEUR STOP/CLUTCH OEM PIAGGIO RS, TUONO, TUAREG 660/RSV4 APRILIA/V85 MOTO GUZZI-2D000325 More informationQuantity required : 1 |
||||||
4 |
291051-SCREW M3X12 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/8/5/7/img/41857.jpg)
5 |
CABLE/CONTROL/TRANSMISSION CLUTCH OEM PIAGGIO APRILIA 1000-1100 RSV-4 2011 >, 660 RS 2020 >-890982 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/1/0/img/72610.jpg)
6 |
CLIPS SPRING MOUNTING HARNESS ORIGNE APRILIA-MOTO GUZZI COMMON A LA RANGE-AP9100519 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/0/7/9/img/42079_20251023155843.jpg)
7 |
LEVER CLUTCH OEM PIAGGIO APRILIA 1000 RSV-4 2011 >, 1100 RSV-4 2019 >, 1000 TUONO V4 2011 >, 1100 TUONO V4 2015 >, RSV4 E5 2021 >, 660 RS 2020 >-893926 More informationQuantity required : 1 |
||||||
|
8 |
2B004481-WASHER More informationQuantity required : 1 |
