Vehicle Exploded View - APRILIA RSV4 1000 Racing Factory E4 ABS 2017 (EMEA LATAM)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

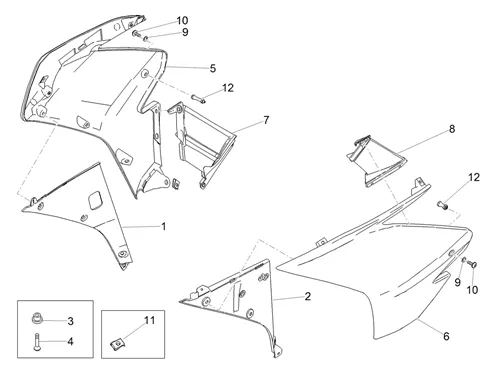

Carrosserie : 02.08 CARÈNE LATERAL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1006/RSV4_1000_Racing_Factory_E4_ABS_2017_(EMEA_LATAM)_02.08.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/5/7/9/img/40579.jpg)
1 |
FAIRING INNER RIGHT OEM APRILIA 50-125-RS, RSV4 2011 >-858828 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/5/8/0/img/40580.jpg)
2 |
FAIRING INNER LEFT OEM APRILIA 50-125-RS, RSV4 2011 >-858829 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/3/img/71773.jpg)
3 |
RIVET FEMELLE OEM PIAGGIO COMMON A LA RANGE (ASSOCIE AP8144563)-AP8144616 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/6/9/img/71769.jpg)
4 |
RIVET MALE OEM PIAGGIO COMMON A LA RANGE (ASSOCIE AP8144616)-AP8144563 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/8/5/4/img/145854.jpg)
5 |
FAIRING SIDE RIGHT OEM PIAGGIO APRILIA 1000 RSV4 RACING FACTORY 2017 GREY-2H001587000EU More informationQuantity required : 1 |
||||||
6 |
2H001588000EU-FAIRING LAT. G, GREY More informationQuantity required : 1 |
||||||
|
7 |
2B001547-DEFLECTOR DRT More informationQuantity required : 1 |
||||||
|
8 |
2B001548-DEFLECTOR LEFT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/0/img/71410.jpg)
9 |
WASHER PLATE (6X12) NYLON FOR FAIRING OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8120622 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/3/7/img/70837.jpg)
10 |
SCREW BTR (5X12) DE FAIRING OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI V7-V9-896174 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
11 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/2/5/7/img/42257.jpg)
12 |
SPACER DE HOUSING RECYCLAGE DE THROTTLE OEM PIAGGIO APRILIA 1000 RSV-4, 1100 RSV-4, TUONO V4-894933 More informationQuantity required : 2 |
