Vehicle Exploded View - APRILIA RSV4 1000 APRC Factory STD SE 2011-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

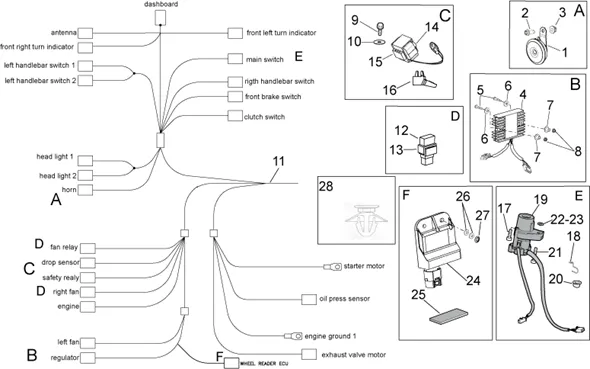

Chassis : 28.33 CIRCUIT ELECTRIQUE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/559/RSV4_1000_APRC_Factory_STD_SE_2011-2012_28.33.PNG)
1 |
890979-HORN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/7/img/71947.jpg)
2 |
SCREW FLANGE TH (8X16) OEM PIAGGIO COMMON A LA RANGE-AP8152285 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
3 |
WASHER ELASTIC COURBE (8. 5X15X0. 8) OEM PIAGGIO COMMON A LA RANGE-AP8150376 More informationQuantity required : 1 |
||||||
|
4 |
REGULATEUR DE TENSION OEM PIAGGIO APRILIA 1000 RSV-4, TUONO V4, 1100 TUONO-B043488 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/5/6/img/50956.jpg)
5 |
SCREW BTR HEAD BOMBEE (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152128 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/4/img/71834.jpg)
6 |
WASHER PLATE (6, 6X18X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8150179 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/2/img/71432.jpg)
7 |
BUSH EN T (6. 1X10X5. 5) OEM PIAGGIO COMMON A LA RANGE-AP8121075 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
8 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
9 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/7/6/img/46976.jpg)
10 |
WASHER EN T (6) OEM PIAGGIO COMMIN A LA RANGE-AP8121991 More informationQuantity required : 1 |
||||||
|
11 |
895844-WIRING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/9/img/72329.jpg)
12 |
RELAIS 12V/30A OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8224462 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/7/img/72277.jpg)
13 |
SANGLE RUBBER DE BLOC OEM PIAGGIO COMMON A LA RANGE-AP8220283 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/0/1/img/67301.jpg)
14 |
SENSOR DE CHUTE/CAPEUR ANTI-BASCULEMEMENT OEM PIAGGIO COMMON A LA RANGE-584509 More informationQuantity required : 1 |
||||||
|
15 |
AP8144046 - CAOUTCHOUC DETECT. INCL. More informationQuantity required : 1 |
||||||
|
16 |
858916-BRACKET DETECTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/1/img/71931.jpg)
17 |
SCREW A ARRACHEMENT/AUTO-CASSANTE BTR (8X28) OEM PIAGGIO COMMON A LA RANGE-AP8152238 More informationQuantity required : 1 |
||||||
|
18 |
AP8121475-GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
19 |
858580 - KIT SERRURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/3/img/71433.jpg)
20 |
WASHER EN T (8. 2X12X4) FOR SCREW OF 6 OEM PIAGGIO COMMON A LA RANGE-AP8121096 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/2/img/71842.jpg)
21 |
SCREW BTR (8X35) OEM PIAGGIO COMMON A LA RANGE-AP8150236 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/9/img/71809.jpg)
22 |
WASHER PLATE (8. 4X16X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150017 More informationQuantity required : 1 |
||||||
|
23 |
WASHER CANNELEE (8. 4X13) OEM PIAGGIO COMMON A LA RANGE-AP8152154 More informationQuantity required : 2 |
||||||
|
24 |
B043676 - CENTRALE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/2/1/4/img/46214.jpg)
25 |
AP8117033-ADHESIVE SPONGE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/3/img/71743.jpg)
26 |
WASHER RUBBER (8X14X2) OEM PIAGGIO COMMON A LA RANGE-AP8144065 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/6/img/71926.jpg)
27 |
WASHER ELASTIC (6. 5X12. 5) OEM PIAGGIO COMMON A LA RANGE-AP8152179 More informationQuantity required : 2 |
||||||
|
28 |
890760-BRACKET More informationQuantity required : 5 |
