Vehicle Exploded View - APRILIA RS 50 RS4 50 2T E4 2018 (APAC-EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

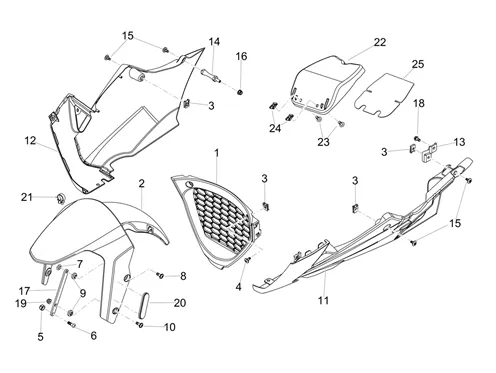

Carrosserie : 02.03 GARDE-BOUE AV.-EMBASEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/794/RS4_50_2T_E4_2018_(APAC-EMEA)_02.03.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/5/7/8/img/40578.jpg)
1 |
BUTEE/GRILLE DE FAIRING FRONT OEM APRILIA 50-125 RS 2011 >/1000 RSV4 2009 >-858827 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/7/7/img/70877.jpg)
2 |
GUARD-MUD FRONT OEM PIAGGIO APRILIA 50 RS 2006 > 2010, RS4 2011 >, 125 RS4 2011 >, RS 2017 > BLACK-897700 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
3 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
4 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
5 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150430 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/7/img/71917.jpg)
6 |
SCREW BTR HEAD BOMBEE (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152137 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/9/img/71429.jpg)
7 |
BUSH/SPACER (6) OEM PIAGGIO COMMON A LA RANGE-AP8121032 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/3/7/img/64537.jpg)
8 |
SCREW BTR HEAD BOMBEE (6X16) OEM PIAGGIO COMMON A LA RANGE-00H01501701 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/1/img/71401.jpg)
9 |
NUT (M5) WITH INSERT RUBBER OEM PIAGGIO COMMON A LA RANGE DERBI, APRILIA ET MOTO-GUZZI-AP8120531 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/4/4/img/64544.jpg)
10 |
SCREW BTR HEAD BOMBEE (6X25) OEM PIAGGIO COMMON A LA RANGE-00H01503701 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/8/0/5/img/42805.jpg)
11 |
SPOILER LEFT OEM PIAGGIO APRILIA 50-125 RS4 2011 > 2017 BLACK-89768900XN3 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/8/0/3/img/42803.jpg)
12 |
SPOILER RIGHT BLACK DIABLO OEM PIAGGIO APRILIA 50-125 RS 2011 >-89768800XN3 More informationQuantity required : 1 |
||||||
13 |
866012-CARTELA FIJ. QUILLAS GPR125 09 * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/8/4/9/img/41849.jpg)
14 |
SPACER CARROSSERIE OEM PIAGGIO COMMON A LAGAMME-890964 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/8/img/71938.jpg)
15 |
SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152272 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
16 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/1/1/img/70311.jpg)
17 |
BRACKET/BRACKET DE GUARD-MUD FRONT OEM PIAGGIO APRILIA 50-125 RS, TUONO-867258 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/3/8/img/66338.jpg)
18 |
SCREW BTR (6X10) OEM PIAGGIO COMMON A LA RANGE-319446 More informationQuantity required : 1 |
||||||
|
19 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/5/0/2/img/57502.jpg)
20 |
CATADIOPTRE OEM PIAGGIO COMMON A LA RANGE-AP8224623 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/7/img/65967.jpg)
21 |
CLIPS SPRING (D17) OEM PIAGGIO COMMON A LA RANGE-231590 More informationQuantity required : 1 |
||||||
|
22 |
866644-TAPA PROTEC. ENTRADA AGUA GPR50 09 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
23 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/3/7/img/70837.jpg)
24 |
SCREW BTR (5X12) DE FAIRING OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI V7-V9-896174 More informationQuantity required : 2 |
||||||
|
25 |
2B005323-PROTECTOR PROTECTOR-CHALEUR More informationQuantity required : 1 |
