Vehicle Exploded View - APRILIA RS 50 1993-1995 APRILIA

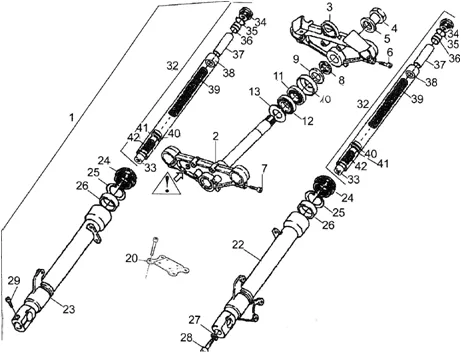

Chassis : 17 FOURCHE AV. SHOWA
Fourche Av. Showa
Search
AP8203576 - FOURCHE COMPLETE

1
P2R reference P2R reference 55527
Maker reference Maker reference AP8203576

AP8203576 - FOURCHE COMPLETE

More information

Quantity required : 1

Base avec tube

2
P2R reference P2R reference
Maker reference Maker reference AP8203849

Base avec tube

Plaque sup. fourche

3
P2R reference P2R reference
Maker reference Maker reference AP8203852

Plaque sup. fourche

Bouchon tube

4
P2R reference P2R reference
Maker reference Maker reference AP8203855

Bouchon tube

Rondelle

5
P2R reference P2R reference
Maker reference Maker reference AP8203854

Rondelle

Vis

6
P2R reference P2R reference
Maker reference Maker reference AP8203853

Vis

Vis

7
P2R reference P2R reference
Maker reference Maker reference AP8203850

Vis

Bague

8
P2R reference P2R reference
Maker reference Maker reference AP8203851

Bague

AP8101272 - ANNEAU SUPPORT PARE-POUSSIERE

9
P2R reference P2R reference 71150
Maker reference Maker reference AP8101272

AP8101272-ANNEAU BRACKET PROTECTOR-POUSSIERE

More information

Quantity required : 1

AP8120211 - PARE-POUSSIERE

10
P2R reference P2R reference 46591
Maker reference Maker reference AP8120211

AP8120211-PROTECTOR-POUSSIERE

More information

Quantity required : 1

BEARING STEERING UPPER OEM PIAGGIO APRILIA 50-125 RS, RX, SX, TUONO, AF1, CLASSIC, PEGASO-AP8110025

11
P2R reference P2R reference 45817
Maker reference Maker reference AP8110025

BEARING STEERING UPPER OEM PIAGGIO APRILIA 50-125 RS, RX, SX, TUONO, AF1, CLASSIC, PEGASO-AP8110025

More information

Quantity required : 1

BEARING DE STEERING OEM PIAGGIO APRILIA 50-125-250 RS 1995 >, 50-125 RX, SX 1995 >, 50-125 CLASSIC, 50-125 MX 2004 >, 125 PEGASO 1991 > 1994, 650 PEGASO 1992 > 2004-AP8110024

12
P2R reference P2R reference 71266
Maker reference Maker reference AP8110024

BEARING DE STEERING OEM PIAGGIO APRILIA 50-125-250 RS 1995 >, 50-125 RX, SX 1995 >, 50-125 CLASSIC, 50-125 MX 2004 >, 125 PEGASO 1991 > 1994, 650 PEGASO 1992 > 2004-AP8110024

More information

Quantity required : 1

WASHER PLATE (25X51X1) OEM PIAGGIO COMMON A LA RANGE-AP8101271

13
P2R reference P2R reference 45095
Maker reference Maker reference AP8101271

WASHER PLATE (25X51X1) OEM PIAGGIO COMMON A LA RANGE-AP8101271

More information

Quantity required : 1

PONTET/PLATE RIGIDIFICATION OEM PIAGGIO APRILIA 50 RS, AFI, TUONO, EUROPA-AP8103705

20
P2R reference P2R reference 45284
Maker reference Maker reference AP8103705

PONTET/PLATE RIGIDIFICATION OEM PIAGGIO APRILIA 50 RS, AFI, TUONO, EUROPA-AP8103705

More information

Quantity required : 1

Fourreau G

22
P2R reference P2R reference
Maker reference Maker reference AP8203846

Fourreau G

Fourreau D

23
P2R reference P2R reference
Maker reference Maker reference AP8203845

Fourreau D

Pare-poussière

24
P2R reference P2R reference
Maker reference Maker reference AP8203789

Pare-poussière

AP8203790 - BAGUE DE BUTEE

25
P2R reference P2R reference 72165
Maker reference Maker reference AP8203790

AP8203790-BUSH OF BUTEE

More information

Quantity required : 2

Joint spi

26
P2R reference P2R reference
Maker reference Maker reference AP8203698

Joint spi

AP8203794 - RONDELLE

27
P2R reference P2R reference 164006
Maker reference Maker reference AP8203794

AP8203794 - RONDELLE

More information

Quantity required : 2

AP8203795 - VIS

28
P2R reference P2R reference 55589
Maker reference Maker reference AP8203795

AP8203795-SCREW

More information

Quantity required : 1

Vis

29
P2R reference P2R reference
Maker reference Maker reference AP8203847

Vis

AP8203848 - TIGE

32
P2R reference P2R reference 55604
Maker reference Maker reference AP8203848

AP8203848 - TIGE

More information

Quantity required : 2

Amortisseur

33
P2R reference P2R reference
Maker reference Maker reference AP8203861

Amortisseur

AP8203777 - BOUCHON;

34
P2R reference P2R reference 55579
Maker reference Maker reference AP8203777

AP8203777 - BOUCHON;

More information

Quantity required : 2

AP8203702 - BAGUE DE BUTEE

35
P2R reference P2R reference 55551
Maker reference Maker reference AP8203702

AP8203702 - BAGUE DE BUTEE

More information

Quantity required : 2

AP8203856 - GR. BOUCHON CPL.

36
P2R reference P2R reference 55605
Maker reference Maker reference AP8203856

AP8203856 - GR. BOUCHON CPL.

More information

Quantity required : 2

Entretoise

37
P2R reference P2R reference
Maker reference Maker reference AP8203857

Entretoise

Rondelle

38
P2R reference P2R reference
Maker reference Maker reference AP8203858

Rondelle

AP8203859 - RESSORT

39
P2R reference P2R reference 55606
Maker reference Maker reference AP8203859

AP8203859 - RESSORT

More information

Quantity required : 1

Segm.élé.pomp.fourch.

40
P2R reference P2R reference
Maker reference Maker reference AP8203860

Segm.élé.pomp.fourch.

Amortisseur

41
P2R reference P2R reference
Maker reference Maker reference AP8203861

Amortisseur

AP8203786 - CONTRE-RESSORT;

42
P2R reference P2R reference 55585
Maker reference Maker reference AP8203786

AP8203786-CONTRE-SPRING

More information

Quantity required : 2
