Vehicle Exploded View - APRILIA RS 457 E5+ GP REPLICA 2026 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

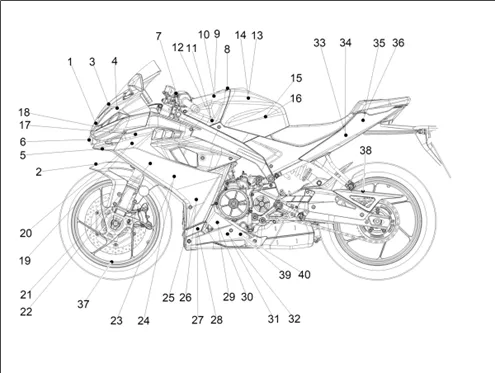

Carrosserie : 02.19 DÉCALCO
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1360/RS_457_E5_GP_REPLICA_2026_EMEA_02.19.png)
1 |
2H007851 - STICKER CARENAGE INFERIEUR G More informationQuantity required : 1 |
||||||
|
2 |
2H007423 - DECALCO AVANT CARENE More informationQuantity required : 1 |
||||||
|
3 |
2H007422 - DECALCO GARDE-BOUE AV More informationQuantity required : 1 |
||||||
|
4 |
2H007424 - DECALCO AVANT CARENE D More informationQuantity required : 1 |
||||||
|
5 |
2H007425 - DECALCO AVANT CARENE G More informationQuantity required : 1 |
||||||
|
6 |
2H007427 - LEFT INTERNAL SIDE FAIRING ILIA DECAL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/4/4/2/img/51442.jpg)
7 |
DECAL- "APRILIA" "PIAGGIO GENUINE PART" APRILIA 125-250 RS, TUONO, CAPONORD, RSV-2 -AP8157770 More informationQuantity required : 1 |
||||||
|
8 |
DECAL- "APRILIA" "PIAGGIO GENUINE PART" APRILIA 125-250 RS, TUONO, CAPONORD, RSV-2 -AP8157770 More informationQuantity required : 1 |
||||||
|
9 |
2H007428 - AIRBOX COVER RS 457 GP REPLICA DECAL More informationQuantity required : 1 |
||||||
|
10 |
2H007429 - RIGHT AIRBOX COVER BLACK DECAL More informationQuantity required : 1 |
||||||
|
11 |
2H007430 - LEFT AIRBOX COVER BLACK DECAL More informationQuantity required : 1 |
||||||
|
12 |
2H007431 - RIGHT AIRBOX COVER BANDS DECAL More informationQuantity required : 1 |
||||||
|
13 |
2H007432 - LEFT AIRBOX COVER BANDS DECAL More informationQuantity required : 1 |
||||||
|
14 |
2H007433 - STICKER PROTEGE-RESERVOIR D. More informationQuantity required : 1 |
||||||
|
15 |
2Q000669QK - LUM More informationQuantity required : 1 |
||||||
|
16 |
2H007435 - RIGHT TANK COVER BANDS DECAL More informationQuantity required : 1 |
||||||
|
17 |
2H007436 - LEFT TANK COVER BANDS DECAL More informationQuantity required : 1 |
||||||
|
18 |
2H007437 - STICKER BANDE CARENAGE LAT. D More informationQuantity required : 1 |
||||||
|
19 |
2H007438 - STICKER BANDE CARENAGE LAT. G More informationQuantity required : 1 |
||||||
|
20 |
2H007439 - STICKER CARENAGE LAT. D. More informationQuantity required : 1 |
||||||
|
21 |
2H007440 - STICKER CARENAGE LATERAL G More informationQuantity required : 1 |
||||||
|
22 |
2H007441 - STICKER BANDES CARENAGE LAT. D. More informationQuantity required : 1 |
||||||
|
23 |
2H007442 - STICKER BANDES CARENAGE LAT. G. More informationQuantity required : 1 |
||||||
|
24 |
2H007443 - STICKER CARENAGE LAT. D. More informationQuantity required : 1 |
||||||
|
25 |
2H007444 - STICKER CARENAGE LAT. G. More informationQuantity required : 1 |
||||||
|
26 |
2H007445 - STICKER CARENAGE INFERIEUR D More informationQuantity required : 1 |
||||||
|
27 |
2H007446 - STICKER CARENAGE INFERIEUR G More informationQuantity required : 1 |
||||||
|
28 |
2H007447 - STICKER CARENAGE INFERIEUR D More informationQuantity required : 1 |
||||||
|
29 |
2H007448 - STICKER CARENAGE INFERIEUR G More informationQuantity required : 1 |
||||||
|
30 |
2H007449 - RIGHT LOWER FAIRING RINA DECAL More informationQuantity required : 1 |
||||||
|
31 |
2H007450 - LEFT LOWER FAIRING RINA DECAL More informationQuantity required : 1 |
||||||
|
32 |
2H007753 - STICKER CARENAGE INFERIEUR D More informationQuantity required : 1 |
||||||
|
33 |
2H007754 - STICKER CARENAGE INFERIEUR G More informationQuantity required : 1 |
||||||
|
34 |
2H007453 - DECALCO QUEUE D More informationQuantity required : 1 |
||||||
|
35 |
2H007454 - DECALCO QUEUE G More informationQuantity required : 1 |
||||||
|
36 |
2H007455 - DECALCO QUEUE D More informationQuantity required : 1 |
||||||
|
37 |
2H006274 - FRONT WHEEL RIM RED DECAL More informationQuantity required : 6 |
||||||
|
38 |
2B013295 - TYRES PRESSURE LABEL More informationQuantity required : 1 |
||||||
|
39 |
2B013295 - TYRES PRESSURE LABEL More informationQuantity required : 1 |
||||||
|
40 |
2H007850 - STICKER CARENAGE INFERIEUR D More informationQuantity required : 1 |
