Vehicle Exploded View - APRILIA RS 457 4T 8V E5+ ABS 2026 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

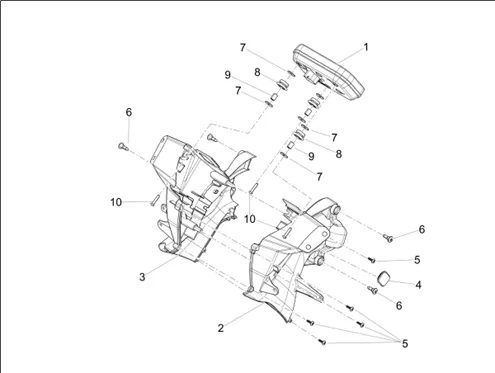

Feux - instruments : 08.02 INSTRUMENTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1359/RS_457_4T_8V_E5_ABS_2026_EMEA_08.02.png)
1 |
2D000916-PANEL DE EDGE More informationQuantity required : 1 |
||||||
|
2 |
2B011151-BRACKET DE PANEL DE EDGE G More informationQuantity required : 1 |
||||||
|
3 |
2B011150-BRACKET DE PANEL DE EDGE D More informationQuantity required : 1 |
||||||
|
4 |
2B011889-USB SOCKET CAP 440 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
5 |
SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
6 |
SCREW TORX (6X22) FAIRING OEM PIAGGIO COMMON A LA RANGE-CM179201 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/7/img/71847.jpg)
7 |
WASHER PLATE (5X20X1. 5) OEM PIAGGIO COMMON A LA RANGE-AP8150255 More informationQuantity required : 6 |
||||||
|
8 |
2B011951-RUBBER More informationQuantity required : 3 |
||||||
|
9 |
2B011908-SPACER More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/7/img/71937.jpg)
10 |
SCREW BTR HEAD BOMBEE (5X25) OEM PIAGGIO COMMON A LA RANGE-AP8152270 More informationQuantity required : 3 |
