Vehicle Exploded View - APRILIA RS 250 1995-1997 APRILIA

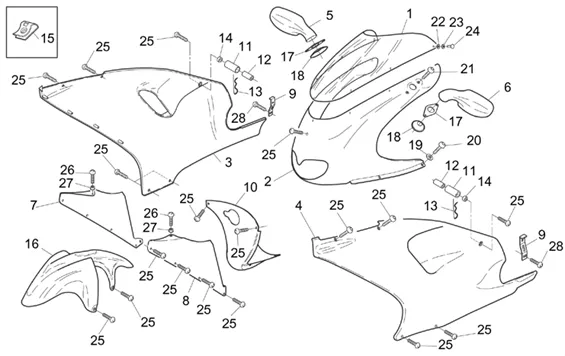

Chassis : 28.04 CARROSSERIE AV. I
Carrosserie av. I
Search
AP8131916 - VITRE COUPOLE;

1
P2R reference P2R reference 48682
Maker reference Maker reference AP8131916

AP8131916 - VITRE COUPOLE;

More information

Quantity required : 0

Avant carénage, rouge/gris;

2
P2R reference P2R reference
Maker reference Maker reference AP8131919

Avant carénage, rouge/gris;

Avant carénage, noir;

2
P2R reference P2R reference
Maker reference Maker reference AP8138445

Avant carénage, noir;

Avant carénage, gris m;

2
P2R reference P2R reference
Maker reference Maker reference AP8138638

Avant carénage, gris m;

Avant carénage, gris s;

2
P2R reference P2R reference
Maker reference Maker reference AP8139077

Avant carénage, gris s;

Flanc D, rouge;

3
P2R reference P2R reference
Maker reference Maker reference AP8131921

Flanc D, rouge;

Flanc D, noir;

3
P2R reference P2R reference
Maker reference Maker reference AP8138446

Flanc D, noir;

Flanc D, gris m.;

3
P2R reference P2R reference
Maker reference Maker reference AP8138639

Flanc D, gris m.;

Flanc D, gris s;

3
P2R reference P2R reference
Maker reference Maker reference AP8139078

Flanc D, gris s;

Flanc G, rouge;

4
P2R reference P2R reference
Maker reference Maker reference AP8131923

Flanc G, rouge;

Flanc G, noir;

4
P2R reference P2R reference
Maker reference Maker reference AP8138447

Flanc G, noir;

Flanc G, gris m.;

4
P2R reference P2R reference
Maker reference Maker reference AP8138640

Flanc G, gris m.;

Flanc G, gris s;

4
P2R reference P2R reference
Maker reference Maker reference AP8139079

Flanc G, gris s;

Miroir rétroviseur dte

5
P2R reference P2R reference
Maker reference Maker reference AP8102705

Miroir rétroviseur dte

Miroir rétroviseur gche

6
P2R reference P2R reference
Maker reference Maker reference AP8102706

Miroir rétroviseur gche

Carénage int. D;

7
P2R reference P2R reference
Maker reference Maker reference AP8138194

Carénage int. D;

Carénage int. G;

8
P2R reference P2R reference
Maker reference Maker reference AP8138195

Carénage int. G;

AP8134332 - PLAQUE INF. CAREN.;

9
P2R reference P2R reference 48915
Maker reference Maker reference AP8134332

AP8134332 - PLAQUE INF. CAREN.;

More information

Quantity required : 0

Butée carénage;

10
P2R reference P2R reference
Maker reference Maker reference AP8131932

Butée carénage;

AP8120699 - TUBE FIX. LAT. CAREN.

11
P2R reference P2R reference 46627
Maker reference Maker reference AP8120699

AP8120699 - TUBE FIX. LAT. CAREN.

More information

Quantity required : 0

AP8121867 - DOUILLE SPECIALE

12
P2R reference P2R reference 46949
Maker reference Maker reference AP8121867

AP8121867 - DOUILLE SPECIALE

More information

Quantity required : 0

GOUPILLE DE REAR WHEEL OEM APRILIA 50-125 RS 2005 <-AP8201287

13
P2R reference P2R reference 55348
Maker reference Maker reference AP8201287

GOUPILLE DE REAR WHEEL OEM APRILIA 50-125 RS 2005 <-AP8201287

More information

Quantity required : 0

NUT (M5) WITH INSERT RUBBER OEM PIAGGIO COMMON A LA RANGE DERBI, APRILIA ET MOTO-GUZZI-AP8120531

14
P2R reference P2R reference 71401
Maker reference Maker reference AP8120531

NUT (M5) WITH INSERT RUBBER OEM PIAGGIO COMMON A LA RANGE DERBI, APRILIA ET MOTO-GUZZI-AP8120531

More information

Quantity required : 0

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

15
P2R reference P2R reference 71174
Maker reference Maker reference AP8102375

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

More information

Quantity required : 0

Garde-boue AV bleu

16
P2R reference P2R reference
Maker reference Maker reference AP8126416

Garde-boue AV bleu

Garde-boue AV noir;

16
P2R reference P2R reference
Maker reference Maker reference AP8126505

Garde-boue AV noir;

Garde-boue AV g m;

16
P2R reference P2R reference
Maker reference Maker reference AP8126537

Garde-boue AV g m;

Garde-boue AV g s;

16
P2R reference P2R reference
Maker reference Maker reference AP8126614

Garde-boue AV g s;

KIT MONTAGE MIRROR OEM PIAGGIO 50-125-250 RS 2000 >-AP8102909

17
P2R reference P2R reference 45252
Maker reference Maker reference AP8102909

KIT MONTAGE MIRROR OEM PIAGGIO 50-125-250 RS 2000 >-AP8102909

More information

Quantity required : 0

CUVETTE ARTICULATION MIRROR OEM PIAGGIO 50-125-250 RS APRILIA 1999 >-AP8102341

18
P2R reference P2R reference 45151
Maker reference Maker reference AP8102341

CUVETTE ARTICULATION MIRROR OEM PIAGGIO 50-125-250 RS APRILIA 1999 >-AP8102341

More information

Quantity required : 0

WASHER PLATE NYLON (10X5. 3X1) OEM PIAGGIO COMMON A LA RANGE-AP8120591

19
P2R reference P2R reference 164486
Maker reference Maker reference AP8120591

WASHER PLATE NYLON (10X5. 3X1) OEM PIAGGIO COMMON A LA RANGE-AP8120591

More information

Quantity required : 0

SCREW BTR HEAD BOMBEE (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152268

20
P2R reference P2R reference 71935
Maker reference Maker reference AP8152268

SCREW BTR HEAD BOMBEE (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152268

More information

Quantity required : 0

SCREW BTR HEAD BOMBEE (6X15) OEM PIAGGIO COMMON A LA RANGE-AP8152108

21
P2R reference P2R reference 71913
Maker reference Maker reference AP8152108

SCREW BTR HEAD BOMBEE (6X15) OEM PIAGGIO COMMON A LA RANGE-AP8152108

More information

Quantity required : 0

WASHER ELASTIC (5) OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150450

22
P2R reference P2R reference 71888
Maker reference Maker reference AP8150450

WASHER ELASTIC (5) OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150450

More information

Quantity required : 0

WASHER PLATE NYLON (10X5. 3X1) OEM PIAGGIO COMMON A LA RANGE-AP8120591

23
P2R reference P2R reference 164486
Maker reference Maker reference AP8120591

WASHER PLATE NYLON (10X5. 3X1) OEM PIAGGIO COMMON A LA RANGE-AP8120591

More information

Quantity required : 0

Rivet anodisé bleu

24
P2R reference P2R reference
Maker reference Maker reference AP8102603

Rivet anodisé bleu

SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101

25
P2R reference P2R reference 214483
Maker reference Maker reference 2B014101

SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101

More information

Quantity required : 0

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302-

25
P2R reference P2R reference 71961
Maker reference Maker reference AP8152302
Replaced by référence Replaced by référence 214483

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302

More information

Quantity required : 0

SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298

26
P2R reference P2R reference 71957
Maker reference Maker reference AP8152298

SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298

More information

Quantity required : 0

NUT (M5) WITH INSERT RUBBER OEM PIAGGIO COMMON A LA RANGE DERBI, APRILIA ET MOTO-GUZZI-AP8120531

27
P2R reference P2R reference 71401
Maker reference Maker reference AP8120531

NUT (M5) WITH INSERT RUBBER OEM PIAGGIO COMMON A LA RANGE DERBI, APRILIA ET MOTO-GUZZI-AP8120531

More information

Quantity required : 0

SCREW BTR HEAD BOMBEE (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152268

28
P2R reference P2R reference 71935
Maker reference Maker reference AP8152268

SCREW BTR HEAD BOMBEE (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152268

More information

Quantity required : 0
